Mastering Corrosion Challenges in Aggressive Chemical Environments

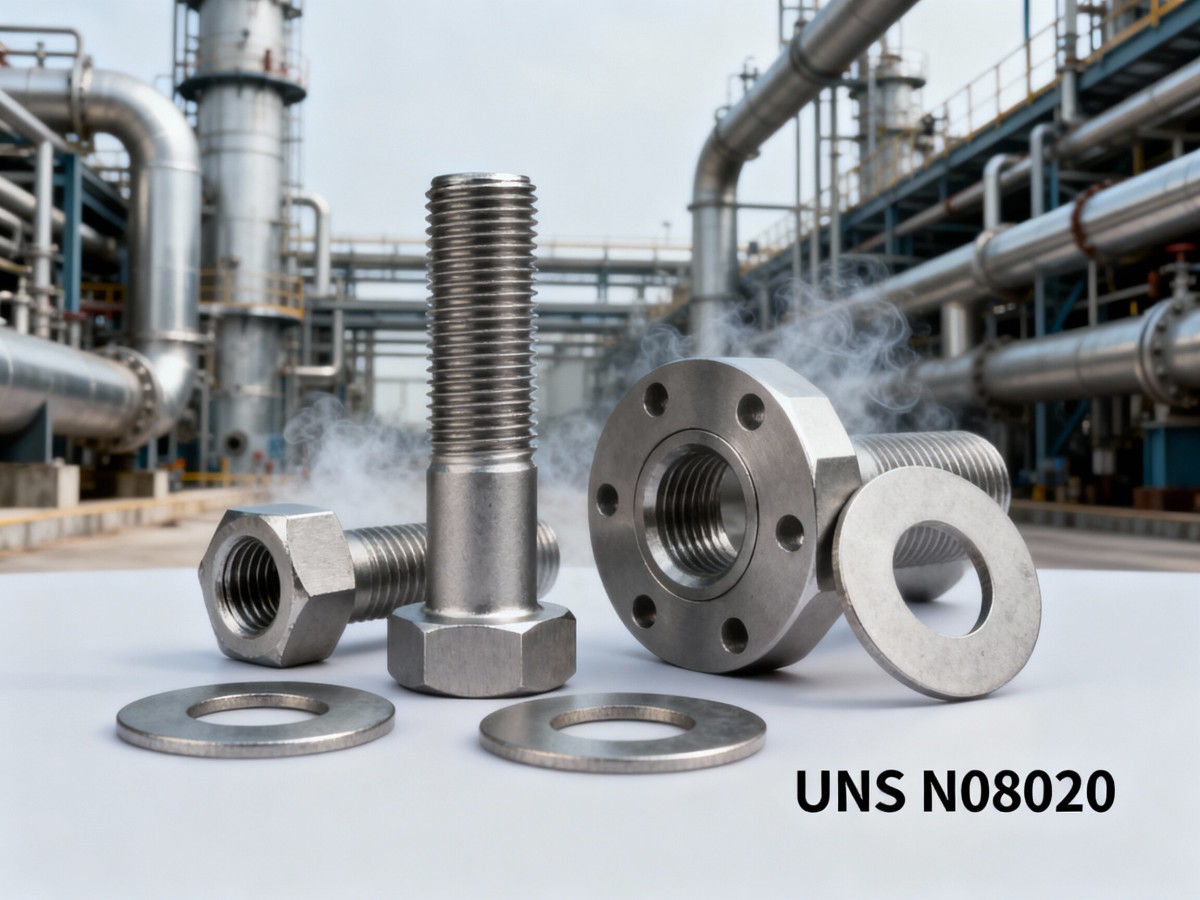

In the demanding world of chemical processing, petrochemical refining, and pharmaceutical manufacturing, material failure due to corrosion can result in catastrophic consequences. Alloy 20 fasteners—including bolts, nuts, screws, and washers—represent a specialized class of nickel-iron-chromium alloys engineered specifically to withstand some of the most aggressive corrosive environments encountered in industrial applications. As experts in high-performance corrosion-resistant fasteners, RAYCHIN manufactures precision Alloy 20 fastening components that provide unmatched reliability in sulfuric acid, phosphoric acid, and chloride-containing environments. This comprehensive guide addresses critical technical questions while providing detailed engineering data for informed material selection decisions.

Part 1: Scientific Foundation of Alloy 20 (UNS N08020)

1.1 Chemical Composition: Engineered for Maximum Corrosion Resistance

Alloy 20 (commonly known as Carpenter 20, UNS N08020) is a nickel-iron-chromium austenitic stainless steel with strategic additions of molybdenum, copper, and niobium stabilized with columbium:

Special Variants:

• Alloy 20Cb-3: Columbium-stabilized version for optimum resistance to intergranular corrosion

• Alloy 20Mo-4: Enhanced molybdenum version for improved chloride resistance

RAYCHIN Quality Assurance: Our certified Alloy 20 fasteners are manufactured from material batches that undergo rigorous chemical verification to ensure optimal composition for maximum corrosion resistance in specific chemical environments.

1.2 Mechanical Properties: Strength with Corrosion Immunity

Alloy 20 offers excellent mechanical properties that combine strength with good ductility:

Standard Mechanical Properties:

Elevated Temperature Properties:

• Maximum Continuous Service: 1000-1200°F (538-649°C)

• Short-Term Exposure Limit: 1500°F (816°C)

• Stress Rupture Strength: 25-30 ksi at 1000°F for 1000 hours

• Creep Resistance: Good for chemical processing temperatures

Specialized Performance Characteristics:

• Fatigue Strength: 40-45 ksi (276-310 MPa) at 10⁸ cycles (rotating beam, R=-1)

• Impact Toughness: Excellent at both room and cryogenic temperatures

• Thermal Expansion: 8.3 × 10⁻⁶/°F (15.0 × 10⁻⁶/°C) from 70-600°F

• Thermal Conductivity: 7.2 BTU·in/(hr·ft²·°F) at 70°F (12.5 W/m·K)

• Electrical Resistivity: 37.0 microhm-cm at 70°F

Heat Treatment Considerations:

• Solution Annealing: 1750-1850°F (954-1010°C) followed by rapid cooling

• Stress Relieving: 1000-1200°F (538-649°C) for 1 hour per inch of thickness

• No Precipitation Hardening: Alloy 20 is not age-hardenable

Part 2: Critical Technical Questions & Expert Answers

2.1 What makes Alloy 20 uniquely resistant to sulfuric acid compared to other stainless steels?

Alloy 20's exceptional sulfuric acid resistance results from a synergistic combination of alloying elements:

1. Copper Content (3-4%): The critical differentiator. Copper provides cathodic protection in sulfuric acid environments, significantly improving resistance across the full concentration range (0-100%) at temperatures up to 150°F (66°C).

2. Nickel Content (32-38%): Provides inherent corrosion resistance and stabilizes the austenitic structure, preventing martensite formation that could accelerate corrosion.

3. Molybdenum (2-3%): Enhances resistance to chloride-induced pitting and crevice corrosion, which often accompanies sulfuric acid in industrial processes.

4. Columbium Stabilization: Prevents sensitization during welding, maintaining corrosion resistance in the heat-affected zones of fabricated components.

Corrosion Rate Data in Sulfuric Acid:

• 10% H₂SO₄ at 80°F: <0.002 inches/year (mpy)

• 50% H₂SO₄ at 150°F: 0.005-0.020 mpy

• Concentrated H₂SO₄ at 120°F: <0.001 mpy

RAYCHIN Application Data: Our Alloy 20 fasteners have demonstrated 10+ years of service in sulfuric acid concentrators without measurable corrosion, while Type 316 stainless steel counterparts failed within 6-18 months.

2.2 When should I choose Alloy 20 over more expensive nickel alloys like Hastelloy?

This represents a critical cost-performance decision in chemical plant design:

Engineering Rule: Use Alloy 20 fasteners for dedicated sulfuric or phosphoric acid service. Choose Hastelloy alloys for mixed acid environments or when hydrochloric acid is present.

2.3 How does Alloy 20 compare to super duplex stainless steels for chloride environments?

This is a common comparison in chemical processing and marine applications:

PREN Calculation: PREN = %Cr + 3.3 × %Mo + 16 × %N

• Alloy 20: PREN ≈ 20 + (3.3 × 2.5) = 28-33

• SAF 2507: PREN ≈ 25 + (3.3 × 4) + (16 × 0.3) = 40-43

RAYCHIN Recommendation: For chemical processing fasteners in sulfuric/phosphoric acid with incidental chlorides, Alloy 20 provides optimal performance. For marine fasteners or high-chloride chemical environments, super duplex may be superior.

Part 3: Industry-Specific Applications & Solutions

3.1 Chemical Processing: Reliability in Acid Environments

Primary Applications:

• Sulfuric Acid Plants: Fasteners for concentrators, absorbers, piping, and storage tanks

• Phosphoric Acid Production: Bolts for reactors, evaporators, and filtration systems

• Petrochemical Reactors: Fasteners for alkylation units and acid-catalyzed processes

• Plastic & Fiber Production: Bolts for terephthalic acid (PTA) and adipic acid plants

Performance Advantages:

• Excellent resistance to sulfuric acid across all concentrations

• Good resistance to phosphoric acid and many organic acids

• Immunity to chloride stress corrosion cracking in moderate conditions

• Long-term reliability reducing maintenance shutdowns

3.2 Pharmaceutical & Food Processing: Purity with Corrosion Resistance

Critical Applications:

• Pharmaceutical Reactors: Bolts for API synthesis vessels and purification equipment

• Food Processing Equipment: Fasteners for citric acid, vinegar, and pickle processing

• Biotechnology Systems: Components for fermentation and purification systems

• Clean Utility Systems: Fasteners for WFI (Water for Injection) and pure steam systems

Technical Benefits:

• Excellent cleanability and surface finish capabilities

• Resistance to sterilization chemicals and cleaning agents

• Minimal metallic contamination risk

• Compliance with FDA and cGMP requirements

3.3 Pulp & Paper Industry: Withstanding Aggressive Process Chemicals

Essential Applications:

• Digester Systems: Fasteners for sulfate (Kraft) and sulfite pulping vessels

• Bleach Plant Equipment: Bolts for chlorine dioxide and peroxide stages

• Chemical Recovery Systems: Fasteners for black liquor evaporators and furnaces

• Paper Machine Components: Bolts for acid-sized paper production

Operational Advantages:

• Resistance to sulfur compounds and chlorinated bleaching chemicals

• Good performance in acidic paper sizing environments

• Long service life in continuous operation

• Reduced corrosion product contamination

3.4 Oil & Gas Refining: Reliability in Sour Service

Specialized Applications:

• Sour Water Strippers: Fasteners for H₂S and ammonia removal systems

• Alkylation Units: Bolts for sulfuric acid and hydrofluoric acid systems

• Amine Treaters: Fasteners for acid gas removal equipment

• Refinery Piping: Bolts for acidic service lines and manifolds

Compliance & Safety:

• NACE MR0175/ISO 15156 compliance for sour service

• Resistance to polythionic acid stress corrosion cracking

• Good performance in wet H₂S environments

• Long-term reliability in refinery turnaround cycles

Part 4: Comprehensive Material Comparison

4.1 Direct Performance Comparison Table

4.2 Selection Decision Matrix

Choose Alloy 20 Fasteners When:

• Primary corrosive medium is sulfuric acid (any concentration)

• Phosphoric acid resistance is required

• Moderate chloride exposure accompanies acid service

• Cost-effective corrosion resistance is needed compared to higher nickel alloys

• Welded fabrication is required (due to stabilization)

Consider Alternatives When:

• Hydrochloric acid is the primary corrosive (choose Hastelloy or titanium)

• Extremely high chloride concentrations or temperatures exist (consider super duplex or nickel alloys)

• Maximum pitting resistance is required in neutral chlorides (904L or super duplex may be better)

• Very high strength is required (super duplex offers higher strength)

Part 5: The RAYCHIN Engineering Advantage for Alloy 20 Fasteners

5.1 Specialized Manufacturing Capabilities

• Precision Machining: Optimized parameters for Alloy 20's specific work hardening characteristics

• Surface Finishing: Electropolishing and passivation for maximum corrosion resistance

• Thread Technology: Advanced thread forms optimized for corrosive service applications

• Quality Verification: Comprehensive testing including intergranular corrosion testing per ASTM A262

5.2 Technical Support Services

• Corrosion Engineering: Analysis of specific process environments and material recommendations

• Failure Analysis: Laboratory services to determine corrosion mechanisms and prevention

• Application Optimization: Custom fastener designs for specific chemical service conditions

• Lifecycle Cost Analysis: Demonstrating total cost advantages over alternative materials

5.3 Certification & Compliance

• Material Standards: Full compliance with ASTM B473, ASME SB473, and customer specifications

• Testing Capabilities: Corrosion testing, mechanical testing, and metallurgical analysis

• Traceability: Complete documentation from melt to finished fastener

• Industry Approvals: Chemical processing, pharmaceutical, and food industry quality systems

Conclusion: Engineering Corrosion Immunity with Alloy 20 Fasteners

Alloy 20 fasteners represent a specialized solution engineered specifically for sulfuric and phosphoric acid environments where conventional stainless steels fail. With their unique combination of nickel, chromium, copper, and molybdenum, they provide reliable, cost-effective corrosion resistance in some of the most aggressive chemical processing applications.

The RAYCHIN Commitment: We deliver more than just precision Alloy 20 fasteners—we provide corrosion engineering solutions backed by chemical process expertise and manufacturing excellence. Our comprehensive approach ensures that every Alloy 20 bolt, nut, screw, and washer performs reliably in your most demanding chemical applications.

Next Steps for Your Project:

1. Corrosion Analysis: Contact our engineering team for environment-specific recommendations

2. Material Validation: Request test samples for your process conditions

3. Design Consultation: Discuss optimized fastener designs for your equipment

4. Production Partnership: Leverage our manufacturing expertise for reliable supply

Contact RAYCHIN today to discuss how certified Alloy 20 fasteners can enhance the reliability, safety, and cost-effectiveness of your chemical processing, pharmaceutical, or refining applications. Request our Alloy 20 Fastener Selection Guide or schedule a consultation with our corrosion engineering specialists.
