Nimonic-RAYCHIN LIMITED

Excellent High Temperature Creep Resistance to 1500°F

Good high temperature corrosion and oxidation resistance

Excellent for high strength & high pressure applications
Nimonic 75 and Nimonic 80A chemistry & specifications
Rupture strength and mechanical strength charts
Nimonic datasheet
Availability and lead times
Nimonic fastener styles

Nimonic fasteners are best known for their high temperature, low-creep attributes. They are comprised primarily of nickel and chromium – typically more than 50% nickel and 20% chromium – along with other additive such as titanium and aluminum. Due to their ability to withstand extreme temperatures and pressure, they are often used in aircraft parts and gas turbine exhaust applications as well as high temperature furnace applications. Nimonic fasteners are available in two different alloy grades with slightly different capabilities.

Nimonic 75
Nimonic 75 fasteners have good mechanical properties and oxidation resistance at high temperatures to 1200°F (650°C). Comparable to Inconel 600, Nimonic 75 bolts are primarily used when oxidation and scaling resistance are required in high temperature conditions.

Properties	Metric	Imperial
Tensile Strength (annealed)	750 Mpa	109 ksi
Yield Strength (annealed)	275 Mpa	39 ksi
Elongation at Break	42%	42%

Nimonic 80A
Nimonic 80A fasteners are similar in composition to Nimoic 75 but are age hardened to offer much higher strengths. Nimonic 80A bolts offer a good combination of corrosion and oxidation resistance, while maintaining high levels for strength to temperatures as high as 1500°F (815°C).

Properties	Metric	Imperial
Tensile Strength (annealed)	1250 Mpa	181 ksi
Yield Strength (annealed)	780 Mpa	113 ksi
Elongation at Break	30%	30%

Nimonic Fastener Availability

Availability
Nimonic fasteners are is available both Nimonic 75 and 80A. We offer these a wide variety of screw styles, as well as other fastener products. Raychin has a minimum line quantity of appoximately 20 pieces for most fasteners. The normal lead time is around 3-4 weeks, depending on the complexity of the request.

Diameter sizes: Standard #00 – 4” in diameter / Metric M1.2 – M48
Threads: UNC, UNF, UNJ, UNR, Rolled,Cut
Custom to print available.
NACE MR0175, ASTM, ASME, MIL specifications, DFAR and Domestic available

Expediting Options
Many critical applications require expedited lead times. Please let us know your specifc needs when requesting a quote so that we can do our best to accomodate your time frame.

Nimonic Fastener Styles

Nimonic Screws	12 Point Screws Button Head Cap Screws Flat Head Screws Hex Head Cap Screws Pan Head Screws Security Screws Set Screws Socket Head Cap Screws Vented Screws	• DIN 603 / ISO 8677 • DIN 912 / ISO 4762 • DIN 913 / ISO 4026 • DIN 914 / ISO 4027 • DIN 915 / ISO 4028 • DIN 916 / ISO 4029 • DIN 921• DIN 931 / ISO 4014 • DIN 933 / ISO 4017 • DIN 961 / ISO 8676 • DIN 965 / ISO 7046 • DIN 966 / ISO 7047 • DIN 7991 / ISO 10642 • DIN 7380 / ISO 7380 • DIN 84 / ISO 1207 • DIN 85 / ISO 1580 • DIN 34822 • DIN 34821 • DIN 7504 / ISO 15480 • DIN 7984 • DIN 963 / ISO 2009
Nimonic Bolts	Hex Head Bolts Shoulder Bolts	• DIN 931 • DIN 933 • ISO 4014 • ISO 4017 • ISO 7370
Nimonic Nuts	Hex Nuts Lock Nuts	• DIN 439 / ISO 4035 • DIN 934 / ISO 4032 • DIN 985 / ISO 7040 • DIN 986 • DIN 980 / ISO 7042 / ISO 19513 • DIN 6923 / ISO 4161
Nimonic Threaded Products	Studs Threaded Rods	• DIN 975 • DIN 976
Nimonic Washers	Flat Washers Lock Washers	• DIN 125 / ISO 7089 / ISO 7090 • DIN 126 / ISO 7091 • DIN 127 / ISO 7090 • DIN 9021 / ISO 7093

Nimonic Chemistry & Specifications

Nimonic 75 Specifications: UNS N06075, Werkstoff 2.4951 &. 2.4630, DIN NiCr20Ti

Nimonic75	Ni	Cu	Fe	Si	Mn	Ti	Cu	C
Min %	-	18.0	-	-	-	0.2	-	0.08
Max %	Bal	21.0	5.0	1.0	1.0	0.6	0.5	0.15

Nimonic 80A Specifications: UNS N07080, Werkstoff 2.4952 & 2.4631

Nimonic80A	Ni	Cr	Fe	Ti	Co	Al	Mn	Si	Cu	Zr	C	S	B	Pb
Min %	-	18.0	-	1.8	-	1.0	-	-	-	-	-	-	-	-
Max %	Bal	21.0	3.0	2.7	2.0	1.8	1.0	1.0	0.2	0.15	0.10	0.015	0.008	0.0025

Nimonic Rupture Strength Properties

Nimonic 75 Annealed Rupture Strength

Rupture Strenth(1000h)	Ksi	Mpa
1400℉/760℃	6.0	40
1500℉/815℃	3.5	24
1600℉/870℃	2.2	15
1700℉/925℃	1.5	10
1800℉/980℃	1.2	8

Nimonic 80A Precipitation Hardened Rupture Strength

Rupture Strenth(1000h)	Ksi	Mpa
1400℉/760℃	6.0	40
1500℉/815℃	3.5	24
1600℉/870℃	2.2	15
1700℉/925℃	1.5	10
1800℉/980℃	1.2	8

Nimonic Screws

12 Point Screws	12 point screws are best suited for applications that require higher torque than socket head cap screws. The only drawback is they are be less economical and require a higher minimum quantity due to the complex head design. Nimonic 12 point screws are available in 1/4" or larger sizes.	• IFI-115 • MIL SPEC • DIN 34822 • DIN 34821
Button Head Cap Screws	Nimonic button head screws are typically used when a wide clamping area and low profile fastener is needed. These screws are often used for fastening a material that is too thin to counter bore.	• ASME B18.3 • ASME 18.3.4M • DIN 7380 / ISO 7380
Flat Head Screws	Standard Nimonic flat head screws have an 82° countersink angle. They can also be customerized to other angles from 60° -120° upon request. Nimonic flat heads are designed to be flush with the surface and can be made with a slotted and socket drivers. Phillips, torx and tamperproof drivers are also available.	• ASME B18.3 • ASME B18.3.6 • DIN 963 / ISO 2009 • DIN 965 / ISO 7046 • DIN 7991 / ISO 10642
Hex Head Cap Screws	Nimonic hex head cap screws are perhaps the most commonly used style and feature an added washer face that isn't part of a hex head bolt. This washer face provides tighter dimensional tolerances. Nimonic hex head cap screws provide high clamping force and easy access.	• ASME B18.6.3 • DIN 931 / ISO 4014 • DIN 933 / ISO 4017 • DIN 961 / ISO 8676
Pan Head Screws	Nimonic pan head screws feature a rounded head style and are most commonly available with a slotted driver. They are best for small diameter fasteners and low torque applications.	• ASME B18.6.3 • DIN 7985 • DIN 921 • DIN 85 / ISO 1580 • DIN 84 / ISO 1207 (cheese head) • DIN 966 / ISO 7047 (raised counter sunk)
Security Screws	When unwanted tampering or removal is an issue, Nimonic security screws provide a solution since they cannot be removed using an common driver. Tamper-proof security screws can be made in a wide variety of driver styles, as well as custom per print.
Set Screws	Nimonic set screws are a headless fastener with a slotted or socket driver on one end and a special tip on the other. We offer set screws in cup, cone, flat, dog and half-dog points.	• ASME B18.3 • DIN 913 / ISO 4026 • DIN 914 / ISO 4027 • DIN 915 / ISO 4028 • DIN 916 / ISO 4029
Socket Head Cap Screws	For applications with little clearance, Nimonic socket head cap are a safe and secure fastening solution.	• ASMET B18.3 • DIN 912 / ISO 4762 • DIN 7984

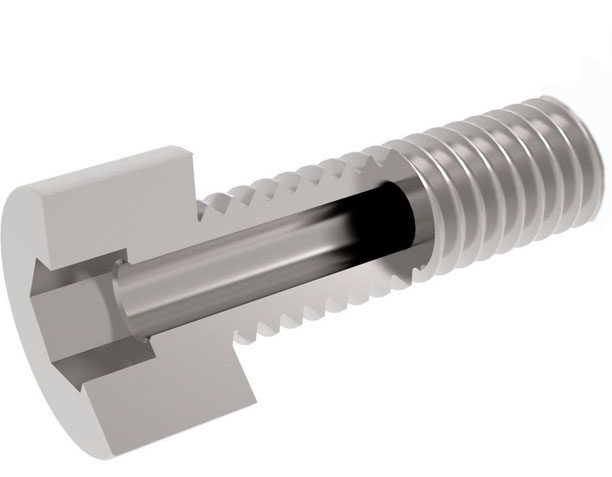

Vented Screws	Nimonic vented screws offer users a way to out-gas application contaminents through a vertical hole drilled from the screw head through the threaded shaft. Vented screws are ideal for vacuums / high vacuums. Nimonic vented screws are available a variety of head styles.

Nimonic Bolts

Hex Head Bolts

Nimonic hex head bolts are similar to hex head cap screws except that they don't have a washer face under the head. Nimonic hex bolts are ideal for high clamping force applications with easy access.

• ASME B18.2.1
• DIN 931 / ISO 4014
• DIN 933 / ISO 4017

Shoulder Bolts

Nimonic shoulder bolts consist of a head, smooth shoulder (for rotating parts) and botttom threaded segment. Nimonic shoulder bolts usually come with a socket driver.

• ASME
• DIN 7379 / ISO 7379
• ISO 7370

Nimonic Nuts

Hex Nuts

Nimonic hex nuts are available in finished hex nuts, jam nuts and heavy hex nuts.

• ASME B18.16.3
• ASME B18.2.2
• DIN 439 / ISO 4035
• DIN 934 / ISO 4032
• DIN 986

Lock Nuts

Nimonic lock nuts are available in all-metal (stover, flexloc, etc.) and polymer (nylon) insert styles. All-metal lock nuts are idea for high temperatures and even load distribution. Nimonic nylon insert lock nuts are an economic solution when temperatures are under 350°F.

• ASME B18.16.3M
• DIN 980 / ISO 7042 /
ISO 19513
• DIN 6923 / ISO 4161
• DIN 985 / ISO 10511 /
ISO 7040

Nimonic Studs & Threaded Rod

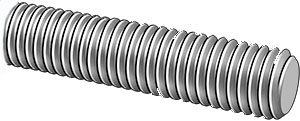

Studs	Nimonic studs are available in fully-threaded or partially-threaded lengths of rod that are under 12" long. Available in any custom length.	• ASME B18.31.2 • DIN 976
Threaded Rod	Nimonic threaded rods are available in lengths greater than 1 foot. The minimum order quantity for a threaded rod is 6 feet of total length. Example quantity 1, 6ft rod or quantity 2, 3ft rods. Maximum shipment length is 6 feet.	• ASME B1.1 • DIN 975
