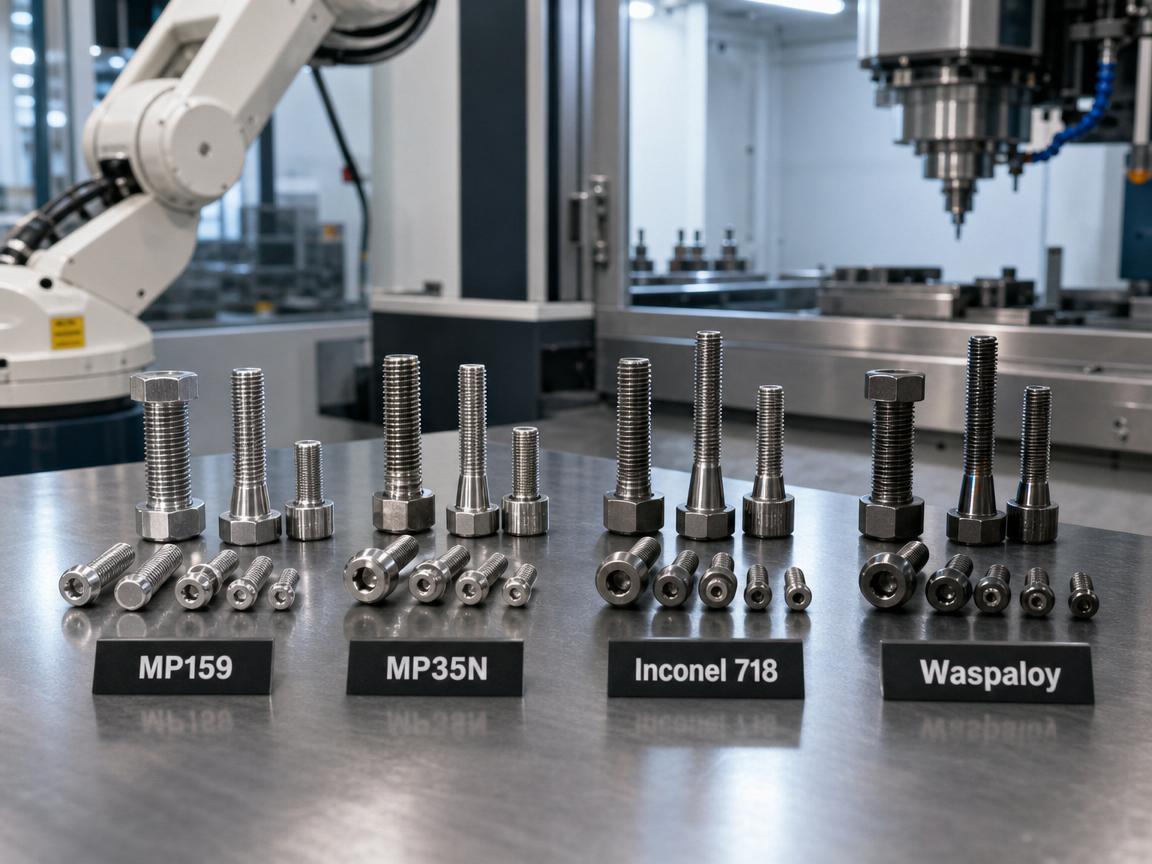

MP159 vs MP35N, Inconel 718, Waspaloy, Nitronic 50, Titanium & A-286: The Ultimate Fastener Showdown

When temperatures exceed 600°C, H₂S is present, and strength demands exceed 200 ksi, the number of viable fastener alloys shrinks to a handful. MP159 often emerges as the ultimate choice, but engineers must understand how it stacks up against MP35N, Inconel 718, Waspaloy, Nitronic 50, titanium, and A-286 to make an informed, cost‑effective specification. As a manufacturer of all these alloys, RAYCHIN LIMITED delivers this technical comparison to help you select the right material for your most demanding applications.

1. MP159 vs MP35N Fasteners

MP159 is the evolutionary successor to MP35N, with a tuned cobalt‑chromium‑molybdenum balance and a deliberate aluminum‑titanium addition. While both can reach 260 ksi tensile strength through cold work and aging, MP159 retains a much higher fraction of that strength at elevated temperature. At 600°C, MP159 yield strength is approximately 1250 MPa, while MP35N drops to around 900 MPa. For aerospace hot sections and HPHT sour wellheads above 400°C, MP159 is the clear winner. In moderate‑temperature sour service (below 300°C), MP35N often suffices at a lower cost.

2. MP159 vs Inconel 718 Bolts

Inconel 718 is the workhorse of high‑temperature bolting, with yield strength up to 150 ksi (1034 MPa) after aging. However, MP159 delivers roughly 70% more yield strength at room temperature and maintains that margin to 600°C. In sour environments, Inconel 718 must be hardness‑controlled to ≤40 HRC for NACE compliance, limiting achievable preload. MP159 is approved to 51 HRC in NACE Level VII, providing significantly higher clamping force. For the most extreme HPHT wells or the hottest turbine sections, MP159 outperforms 718 substantially.

3. MP159 vs Waspaloy Fasteners

Waspaloy (UNS N07001) is a precipitation‑hardened nickel‑base superalloy with excellent creep‑rupture strength above 750°C. However, its room‑temperature yield strength is limited to about 795 MPa, and it cannot be cold‑worked to the 260‑ksi levels of MP159. MP159 offers a far higher baseline strength while matching or exceeding Waspaloy's corrosion resistance up to 600°C. For gas turbine discs and combustor bolts where both high preload and moderate‑temperature oxidation resistance are needed, MP159 is increasingly specified over Waspaloy.

4. MP159 vs Nitronic 50

Nitronic 50 (UNS S20910) is an austenitic stainless steel with excellent corrosion resistance and twice the yield strength of 316L. However, its yield strength is limited to about 380 MPa (55 ksi) in the annealed condition, and even cold‑worked it rarely exceeds 100 ksi. MP159 provides more than double the strength of Nitronic 50 and operates at much higher temperatures. Nitronic 50 is suitable for seawater and moderate chemical environments, but cannot approach MP159's performance in HPHT or aerospace applications.

5. MP159 vs Titanium Fasteners

Titanium Grade 5 (Ti‑6Al‑4V) offers yield strength around 828 MPa at half the density of MP159, making it ideal for weight‑sensitive aerospace structures. However, titanium's strength degrades rapidly above 400°C and it is attacked by reducing acids and fluorides. MP159 operates comfortably to 600°C with far better corrosion resistance across a broader chemical spectrum. For engine hot‑section bolts or sour wellhead fasteners, MP159 is required; for airframe applications below 400°C with no corrosion concerns, titanium may be the lighter option.

6. MP159 vs A-286 Bolts

A-286 (ASTM A453 Grade 660) is an iron‑based precipitation‑hardenable alloy with yield strength around 585 MPa and a temperature limit of about 700°C. It is significantly less expensive than MP159. However, MP159 offers roughly three times the yield strength and far superior resistance to sulfide stress cracking and pitting. A-286 is suitable for steam turbines and general high‑temperature service; MP159 is the choice when pressure, H₂S, and strength demands leave no margin.

7. When to Use MP159 Instead of MP35N

Choose MP159 over MP35N when any of these conditions apply:

• Operating temperature consistently exceeds 400°C (752°F).
• Additional hot‑corrosion resistance is required from combustion gases or salt spray.
• Higher creep and stress‑rupture strength is demanded by the design.
• The application requires the maximum possible preload at 600°C.

If the environment is sour but temperature stays below 300°C, MP35N often represents the optimal balance of cost and performance.

8. Best Alloy for High‑Temperature, High‑Strength Fasteners

The answer depends on the specific temperature, corrosion, and strength requirements:

For the overlapping zone of high strength, high temperature, and sour gas, MP159 is the undisputed leader among commercial fastener alloys.
