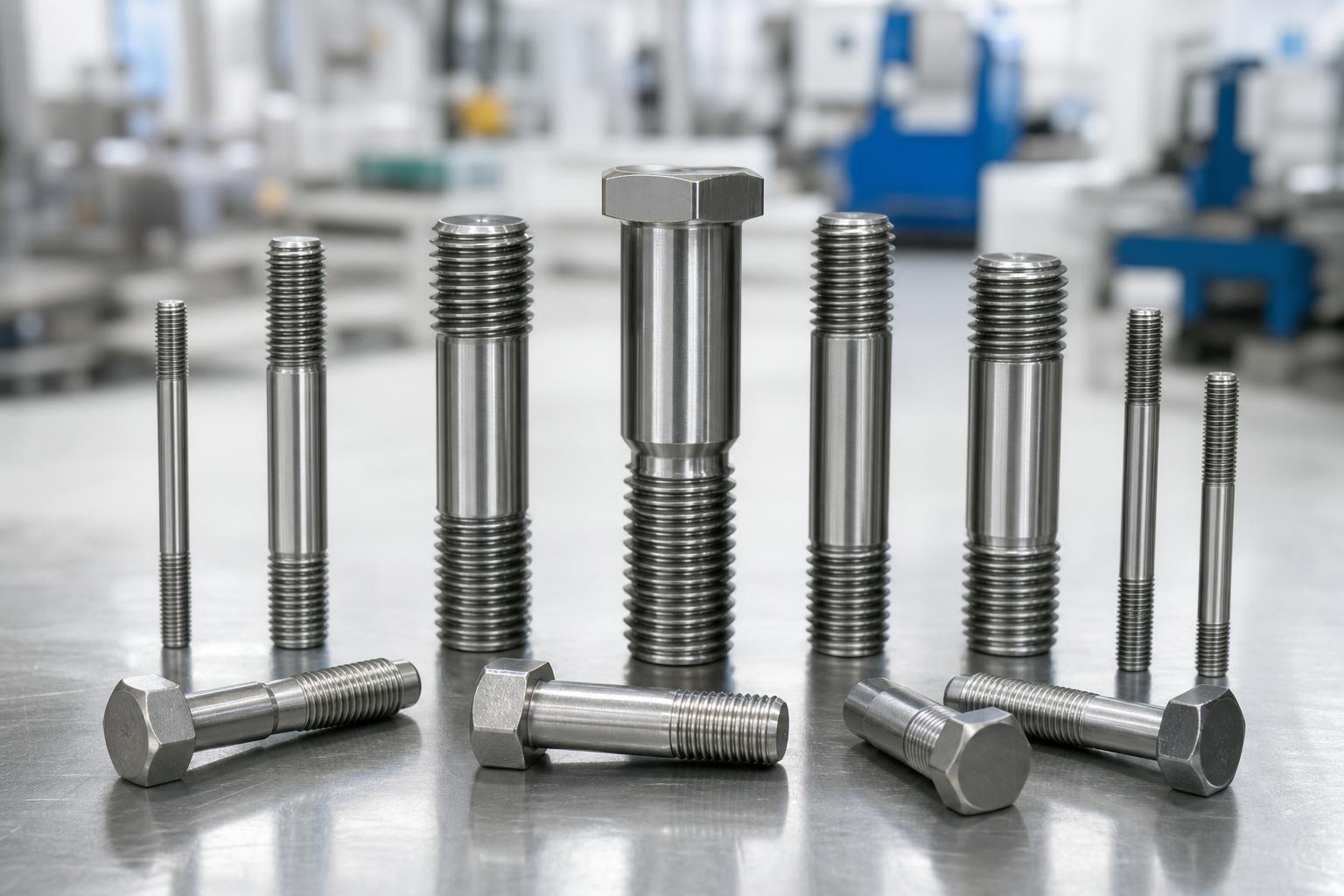

Nimonic Fasteners: Understanding Nimonic 75, 80A, 90, 105, 115 and Their High‑Temperature Capabilities

When conventional stainless steels and even many nickel alloys surrender to heat, Nimonic fasteners keep their grip. These precipitation‑hardening nickel‑chromium‑cobalt superalloys were developed for the most demanding high‑temperature environments: gas turbine blades, combustion chambers, nuclear reactors, and exhaust valves. At RAYCHIN LIMITED, we bring decades of specialty alloy fastener manufacturing experience to the full Nimonic family—from the workhorse Nimonic 80A to the extreme‑temperature Nimonic 115. This comprehensive guide explains what Nimonic alloys are, their key properties and compositions, and how we produce certified fasteners that meet the most stringent aerospace and power generation specifications.

1. What Is Nimonic Alloy?

What is Nimonic alloy? Nimonic is a registered trademark of Special Metals Corporation for a family of nickel‑based superalloys primarily strengthened by the precipitation of gamma‑prime (γ′) phase—Ni₃(Al, Ti). Originally developed in the UK in the 1940s for the Whittle jet engine, Nimonic alloys combine exceptional high‑temperature strength, creep resistance, and oxidation resistance up to approximately 1000°C (1832°F). They are widely used for gas turbine hot‑section components, afterburner parts, high‑temperature valve spindles, and nuclear steam generator bolting.

Unlike solid‑solution alloys such as Inconel 625, Nimonic grades achieve their strength through carefully controlled heat treatment cycles that precipitate a fine dispersion of gamma‑prime particles. The volume fraction and stability of these precipitates increase with the alloy's titanium and aluminum content, defining each Nimonic grade's maximum service temperature and load‑carrying capability.

2. The Nimonic Fastener Grade Spectrum

RAYCHIN LIMITED supplies fasteners across the most commonly specified Nimonic grades. The table below summarizes the key characteristics, temperature capabilities, and typical applications of each alloy.

The higher‑numbered Nimonic grades generally contain greater amounts of aluminum, titanium, and cobalt, allowing them to operate at progressively higher temperatures while retaining creep‑rupture strength.

3. Nimonic 80A Fasteners: The Workhorse for High‑Temperature Bolting

Nimonic 80A (UNS N07080) is the most widely used Nimonic fastener grade. It is a wrought nickel‑chromium alloy strengthened by additions of aluminum and titanium, which form a gamma‑prime precipitate during heat treatment. Nimonic 80A offers excellent creep resistance and oxidation resistance up to approximately 815°C.

Nimonic 80A Chemical Composition (UNS N07080)

Typical applications for UNS N07080 fasteners include exhaust valve stem bolts, diesel engine pre‑combustion chamber studs, nuclear reactor internal bolting, and gas turbine casing fasteners. RAYCHIN supplies Nimonic 80A fasteners in the solution‑treated and aged condition, with full mechanical testing to AMS 5766 or BS HR 601.

4. Nimonic 90 Bolts: Higher Strength at Extreme Temperatures

Nimonic 90 (UNS N07090) is an evolutionary step above 80A, with increased cobalt content (15–21%) and a higher volume fraction of gamma‑prime. This provides significantly better creep‑rupture strength and a higher maximum service temperature of approximately 870°C. Nimonic 90 bolts are specified for the most demanding turbine disc and blade attachments, afterburner component fasteners, and high‑performance automotive turbocharger studs.

Nimonic 90 Properties (typical aged condition)

5. Difference Between Nimonic 80A and 90

The difference between Nimonic 80A and 90 lies primarily in cobalt content and high‑temperature capability. Nimonic 90 contains significantly more cobalt (15–21% vs. ≤2%), which raises the solvus temperature of the gamma‑prime precipitate, allowing it to operate roughly 55°C (100°F) hotter than 80A. Nimonic 90 also exhibits higher tensile and creep‑rupture strength. In practice, if a fastener is expected to see sustained temperatures above 800°C, Nimonic 90 is the required upgrade from 80A. RAYCHIN's application engineers can advise on the appropriate grade based on your specific temperature and stress profile.

6. Additional Nimonic Grades for Specialized Applications

Beyond the common 80A and 90, RAYCHIN also manufactures fasteners in several higher‑performance and lower‑strength Nimonic alloys:

• Nimonic 75 fasteners: A solid‑solution and carbide‑strengthened alloy with excellent oxidation resistance to 1000°C but lower strength. Used for furnace hardware, muffles, and heat‑treat baskets where high creep strength is not the primary requirement.
• Nimonic 105 fasteners: A high‑gamma‑prime‑volume alloy with exceptional creep resistance up to 950°C. Used for turbine blade fasteners and very‑high‑temperature bolting in gas turbines.
• Nimonic 115 bolts: The highest‑strength grade in the family, capable of operating at temperatures approaching 1000°C with stress‑rupture properties superior to Nimonic 105. Reserved for the most extreme aerospace and space propulsion fastener applications.

7. RAYCHIN's Nimonic Fastener Manufacturing Excellence

Producing reliable Nimonic fasteners demands exacting process control—from the certified raw material through precision heat treatment to final inspection. RAYCHIN's integrated approach ensures compliance:

• Certified raw material: Nimonic bar stock sourced from approved mills, with full chemical analysis and inclusion rating verification.
• Vacuum solution annealing and aging: Performed in NADCAP‑accredited furnaces (where required) with complete digital recording of all thermal cycles.
• Precision thread rolling: Rolled after heat treatment to enhance fatigue life and galling resistance.
• 100% testing: PMI (OES), room‑temperature and elevated‑temperature tensile testing, hardness, and optional stress‑rupture testing.
• Certification: EN 10204 Type 3.1 or 3.2, AMS 5766 / BS HR 601 for Nimonic 80A, AMS 5829 for Nimonic 90, and customer‑specific requirements.

Our engineering team is available to assist with alloy selection, torque table generation, and anti‑galling coating recommendations (MoS₂, silver) for your specific high‑temperature joint design.
