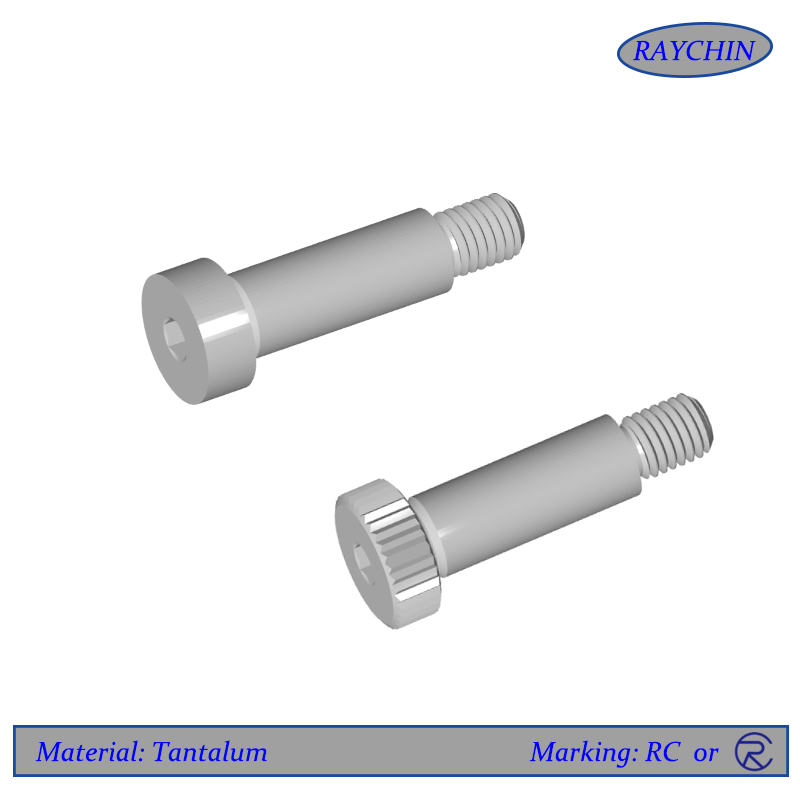

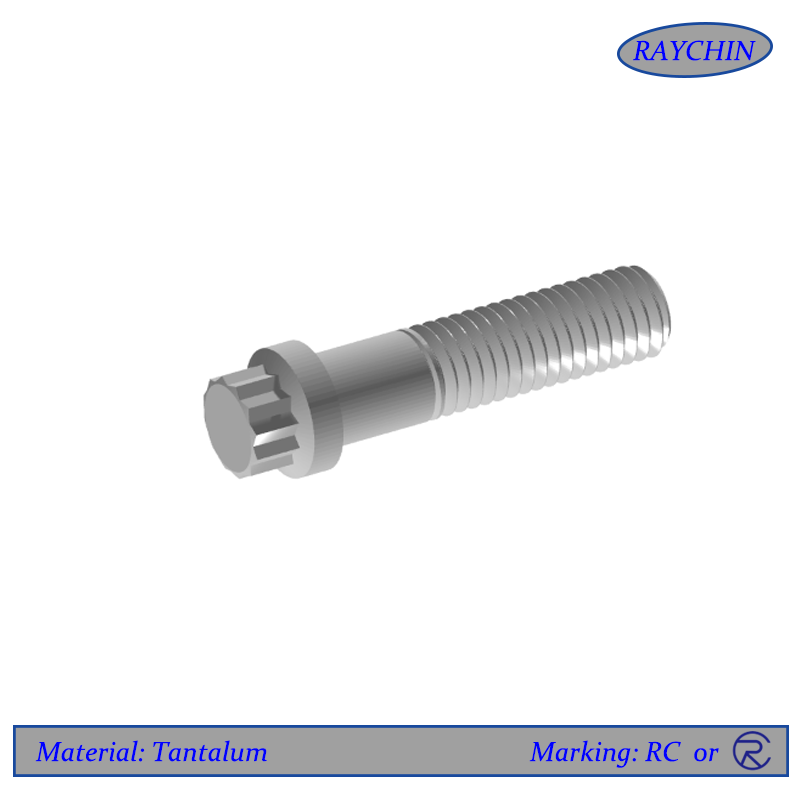

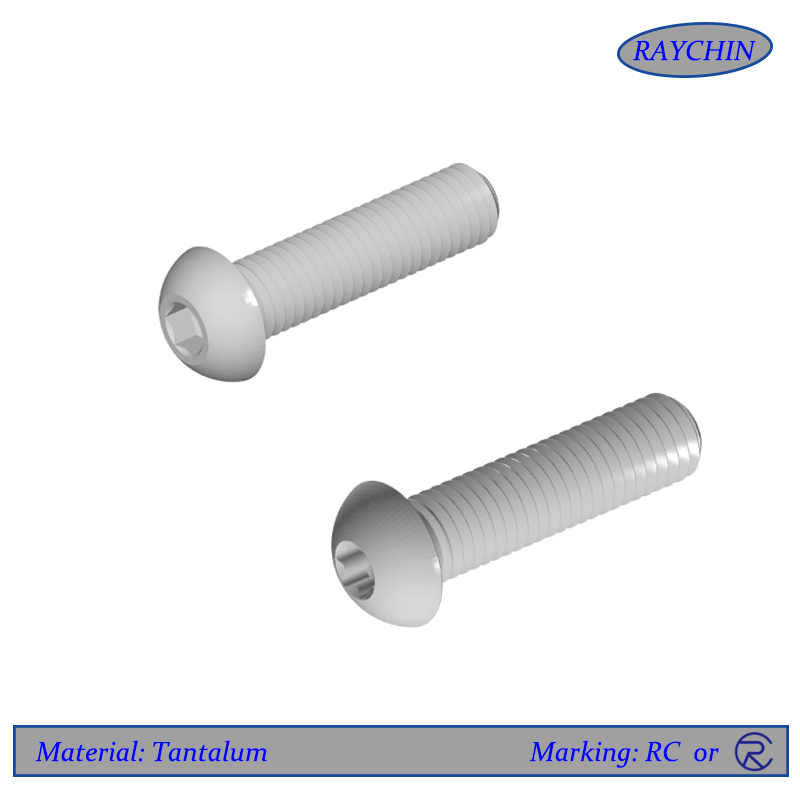

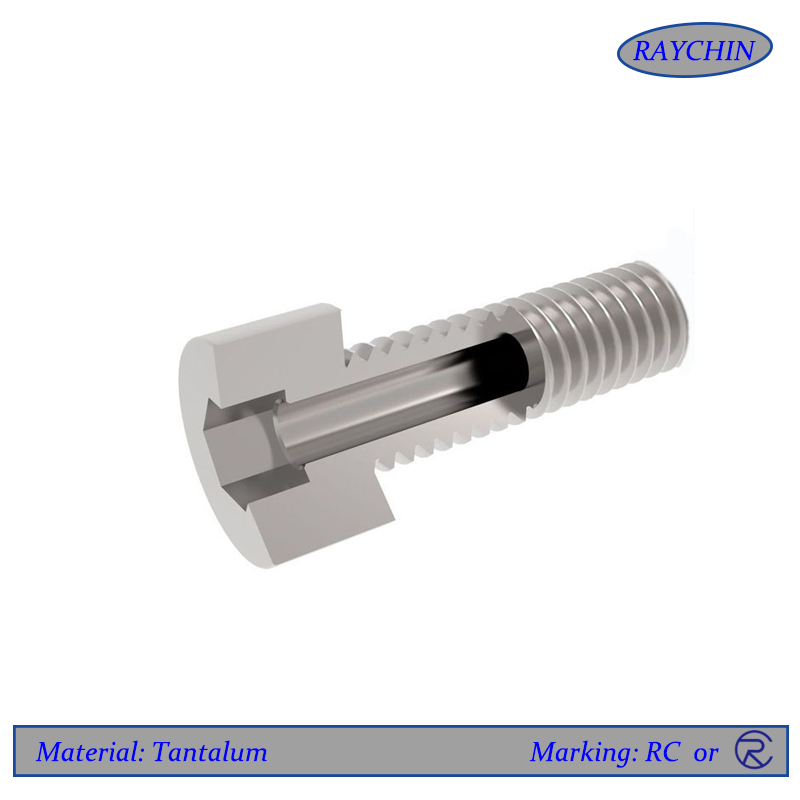

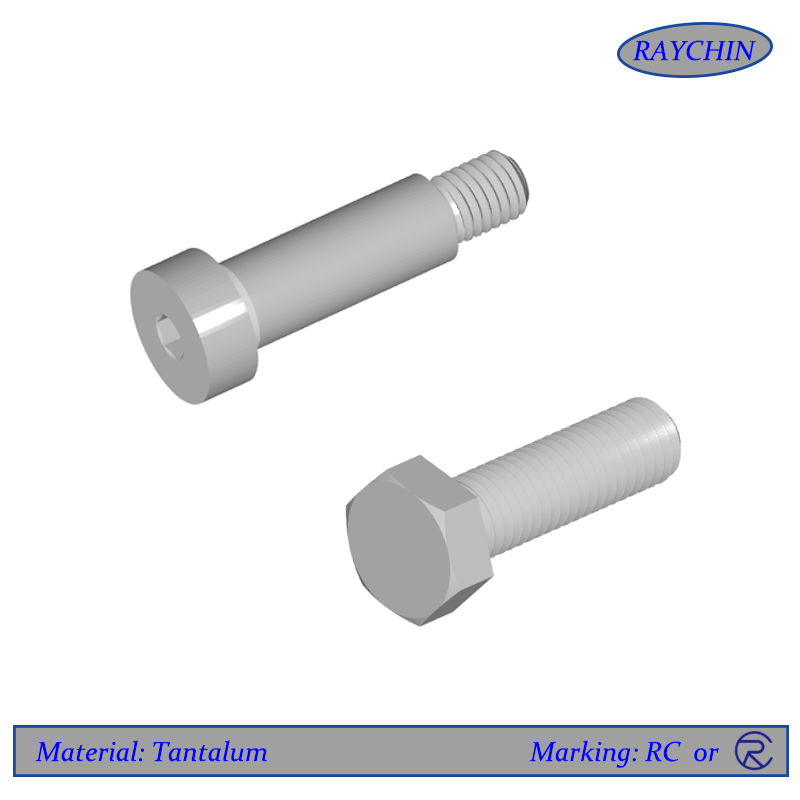

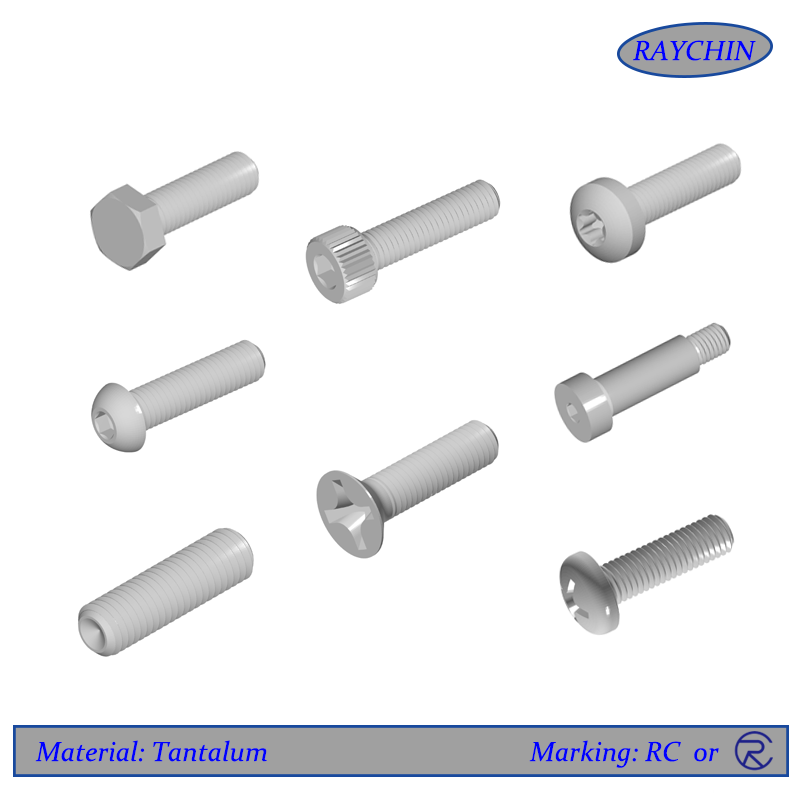

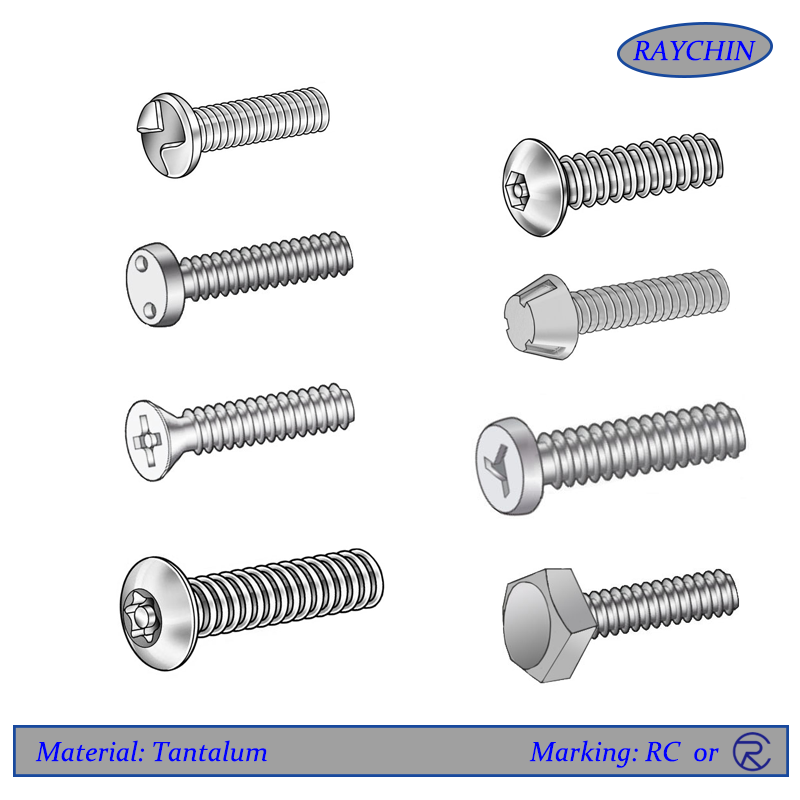

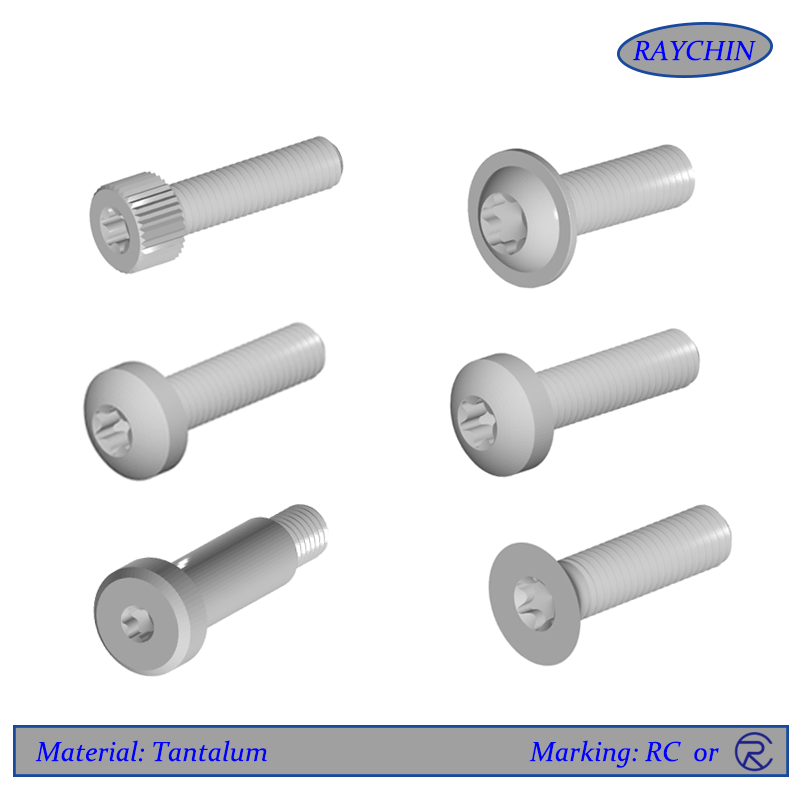

Tantalum Bolts
Tantalum Bolts are also extremely stable at high temperatures, since tantalum has a melting point around 3000°C. High temperature applications require vaccum or inert gas since tantalum may embrittle when used in oxygen rich environments above 250°C. Tantalum Bolts are also one of the most bio-compatible metals available and is also radio-opaque due to its high density (16.68 g/cm3).
All tantalum Bolts are available in commercially pure tantalum and tantalum 2.5% tungsten (Ta-2.5%W).
RAYCHIN SPECIALTY METALS FASTENERS: BOLTS, NUTS, SCREWS, WASHERS, STUDS, THREADED RODS, U-BOLT, J-BOLTS
STANDARD AND CUSTOMIZED, SMALL BATCH AND LARGE BATCH, IMPERIAL AND METRIC
Immune to numerous acids and chemicals
Better corrosion resistance than nickel alloys, titanium or zirconium
High strength and stiffness in vacuum and inert gas up to 2000°C (3600°F)
Can become brittle when used in oxygen above 300°C
High purity and biocompatibilty
Request a Quote from RAYCHIN
We're here to help!
RAYCHIN LIMITED
Tantalum Bolts · Hex Bolts · Socket Head Bolts · Eye Bolts · Inch & Metric · UNS R05200 / R05252Tantalum Bolts: Extreme Corrosion Resistant Bolts for Chemical, Medical & Aerospace Applications
RAYCHIN LIMITED is a leading manufacturer of Tantalum Bolts – precision hex bolts, socket head bolts, and eye bolts produced from refractory tantalum metal, delivering unmatched corrosion resistance, biocompatibility, and reliable performance in the most demanding chemical processing, medical, and semiconductor applications. Bolts are critical fasteners featuring external threads and various head configurations designed for secure mechanical assembly in aggressive environments. Tantalum is a refractory metal with a melting point of 2996°C (5425°F) and corrosion resistance similar to glass – immune to virtually all acids and chemicals except hydrofluoric acid and hot concentrated alkalis. The material forms a stable, self-healing oxide layer (Ta₂O₅) that provides exceptional protection in aggressive environments . Our product line includes commercially pure tantalum bolts and tantalum 2.5% tungsten alloy bolts – all manufactured to the highest precision standards. Tantalum grades conform to UNS R05200 (electron-beam or vacuum-arc melted unalloyed tantalum) and UNS R05252 (tantalum 2.5% tungsten alloy) per ASTM B708 and ASTM B521 specifications . Our portfolio includes all standard and custom configurations manufactured to NAS, AN, MS, ANSI, ASTM, ASME, SAE, API, NACE, ISO, DIN and KS standards, including ISO 4017, DIN 933, and ASME B18.2.1. Whether you require tantalum bolts for chemical reactor linings, medical implants, or high-temperature vacuum furnaces, RAYCHIN delivers precision, quality, and full traceability. All mechanical properties are presented in MPa and ksi (kilopound per square inch).
Tantalum Bolts – Comprehensive Product Range

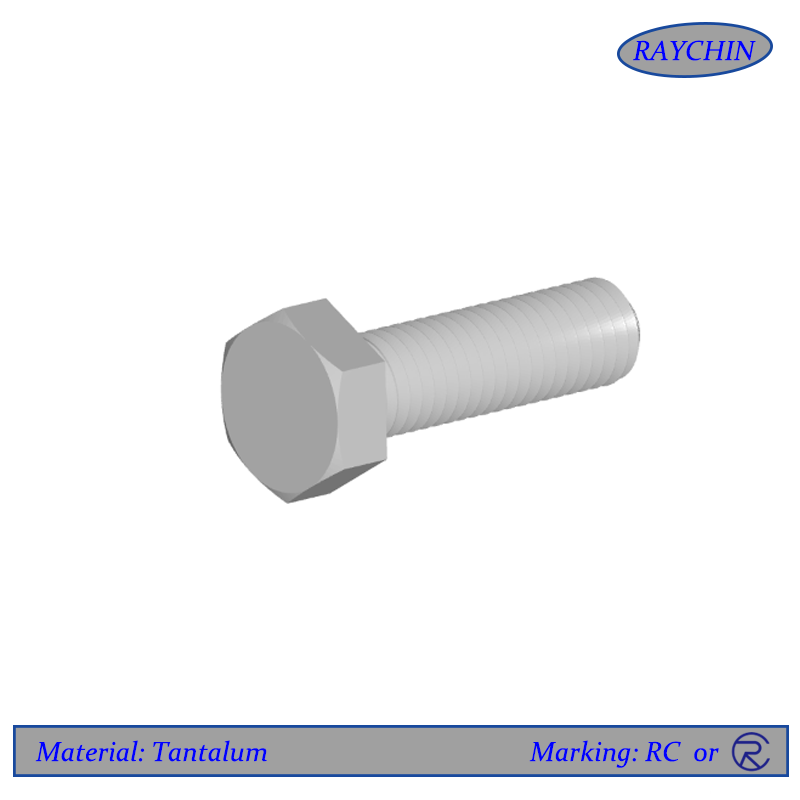

Hex Bolts
Tantalum hex bolts feature precision-formed hexagonal heads for positive wrenching and high torque transmission. Available in inch series per ASME B18.2.1 and metric series per ISO 4017 / DIN 933. Configurations include fully threaded, partially threaded, and heavy hex patterns . Diameters from M3 to M48 (#0 to 2"). Ideal for chemical reactor flange connections, heat exchanger assemblies, and structural attachments where exceptional corrosion resistance is required.

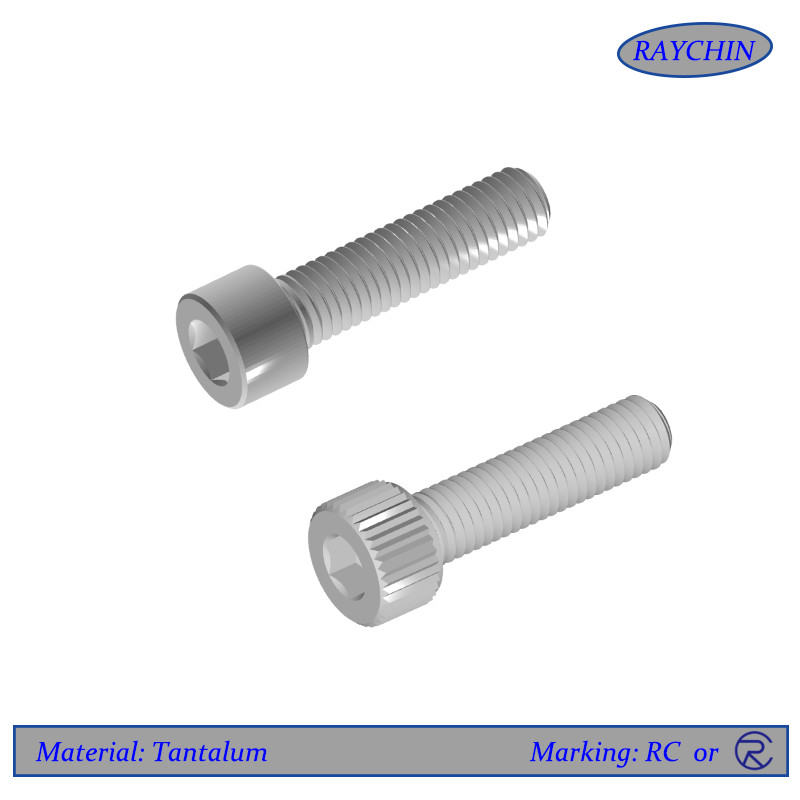

Socket Head Bolts
Tantalum socket head bolts feature precision hexagon socket drives per ASME B18.3 (inch series) and ISO 4762 / DIN 912 (metric series). The internal hex drive allows for high tightening torques and secure installation in confined spaces where external wrenching is impractical . Available in diameters from M1.6 to M48 (#0 to 2"). Widely used in semiconductor processing equipment, medical devices, and laboratory apparatus where space is limited and corrosion resistance is critical .
Eye Bolts
Tantalum eye bolts are designed for lifting and attachment points in corrosive environments. Manufactured to ASME B18.15 and DIN 580 standards with precision-forged eyes for secure rigging. Available in regular and shoulder patterns with load ratings certified for elevated temperatures . Used in chemical reactor vessel lifting, pharmaceutical equipment handling, and laboratory fixture mounting where tantalum's corrosion resistance ensures long-term reliability.
Commercially Pure Tantalum (R05200)
Commercially pure tantalum bolts are produced from UNS R05200 material, meeting ASTM B708 and ASTM B521 specifications . Purity exceeds 99.95% tantalum with minimal interstitial elements. This grade offers exceptional corrosion resistance – virtually immune to attack by most acids including hydrochloric, nitric, sulfuric (up to 175°C), and aqua regia . Used in chemical processing equipment, pharmaceutical reactors, and medical implants requiring maximum biocompatibility .
Tantalum 2.5% Tungsten (R05252)
Tantalum 2.5% tungsten alloy bolts provide enhanced strength while maintaining tantalum's exceptional corrosion resistance . The addition of tungsten (2.5%) increases tensile and yield strength by approximately 30% compared to pure tantalum, making these bolts ideal for applications requiring higher mechanical loads in corrosive environments . Conforms to UNS R05252, ASTM B708, and ASTM B521 specifications . Preferred for chemical processing and aerospace applications requiring superior strength.
Custom & Non-Standard Bolts
Need special head configurations, proprietary drives, non‑standard lengths, or unique thread forms? RAYCHIN engineers design and produce custom tantalum bolts to your exact specifications – any condition (annealed, stress-relieved), with full material traceability. Prototype to production volumes supported. Cleanroom wash and packaging available for medical and semiconductor applications.
Critical Applications of Tantalum Bolts
Chemical Processing
Tantalum bolts are extensively used in chemical processing equipment including reactor linings, heat exchangers, distillation columns, and piping systems handling corrosive media . Tantalum exhibits virtually zero corrosion rate in most acids including hydrochloric, nitric, sulfuric (up to 175°C), phosphoric, and organic acids . Used in pharmaceutical manufacturing, fine chemical production, and specialty chemical processing where material purity must be maintained .
Medical & Implantable Devices
Tantalum bolts are qualified for medical implant applications due to tantalum's exceptional biocompatibility, corrosion resistance in body fluids, and radio-opacity . Tantalum is used for orthopedic implants, surgical instruments, and dental devices . The material is non-toxic and does not elicit adverse tissue reactions, making it ideal for long-term implantation . Meets ASTM F560 requirements for surgical implant applications .
Semiconductor Manufacturing
Tantalum bolts in semiconductor processing equipment including wafer handling systems, CVD reactors, and etch chambers . Tantalum's resistance to halogenated gases and plasma environments, combined with high purity (low interstitial elements), prevents contamination of sensitive semiconductor materials . Used in chamber hardware, gas distribution systems, and wafer fixturing where corrosion resistance and purity are critical .
Aerospace & Defense
Tantalum bolts in aerospace applications including rocket engine components, high-temperature fasteners, and radiation shielding . Tantalum maintains useful mechanical properties in vacuum and inert gas up to 2000°C (3632°F), making it suitable for extreme temperature applications . Used in propulsion systems, nozzle assemblies, and heat shields where high melting point and oxidation resistance (in non-oxidizing environments) are essential .
Pharmaceutical & Bioprocessing
Tantalum bolts in pharmaceutical manufacturing equipment including bioreactors, fermenters, and purification systems . Tantalum's corrosion resistance ensures no metal contamination of sensitive pharmaceutical products . The material's smooth surface finish and cleanability meet cGMP requirements for pharmaceutical processing equipment . Used in vessel internals, agitator assemblies, and sampling ports where corrosion resistance is critical .
High-Temperature Vacuum Furnaces
Tantalum bolts in vacuum furnace hot zones, heating elements, and heat shields . Tantalum maintains strength at elevated temperatures in vacuum or inert gas atmospheres, with recrystallization temperature above 1200°C . Used in sintering furnaces, heat treating equipment, and crystal growing furnaces requiring refractory metal fasteners that maintain integrity at extreme temperatures up to 2000°C in non-oxidizing environments .
International Standards & Global Designations – Tantalum Bolts
RAYCHIN LIMITED manufactures tantalum bolts from electron-beam melted or vacuum-arc melted material conforming to the most widely used national and international specifications. All material is traceable to the mill.
Chemical Composition (Weight %) – Tantalum Grades
Our tantalum bolts are produced from electron-beam melted (EB) or vacuum-arc remelted (VAR) material conforming to the limits of applicable ASTM specifications.
Commercially Pure Tantalum – UNS R05200
Tantalum 2.5% Tungsten – UNS R05252
Metallurgical note: Tantalum is a refractory metal with a body-centered cubic (BCC) crystal structure . It exhibits exceptional corrosion resistance due to the formation of a stable, adherent oxide layer (Ta₂O₅) that protects the base metal from chemical attack . This oxide layer is self-healing in oxidizing environments and provides immunity to virtually all acids and chemicals except hydrofluoric acid, hot concentrated alkalis, and fuming sulfuric acid (oleum) . Tantalum's high melting point (2996°C) makes it suitable for high-temperature applications in vacuum or inert atmospheres, though it may embrittle when exposed to oxygen above 300°C . The addition of 2.5% tungsten provides solid solution strengthening, increasing tensile and yield strength while maintaining excellent corrosion resistance . Tantalum is fully biocompatible, non-toxic, and radio-opaque, making it ideal for medical implant applications .
Complete Mechanical & Physical Properties – Tantalum (MPa / ksi)
Tantalum bolts are supplied in annealed condition per applicable ASTM specifications. Strain-hardened (cold worked) conditions available upon request. Data represent typical values based on industry standards.
Mechanical Properties – Tantalum (Annealed Condition)
Physical Properties – Tantalum
High-Temperature Mechanical Properties – Tantalum
Note: High-temperature testing in vacuum or inert atmosphere. Tantalum may embrittle in oxygen above 300°C.
High‑Temperature Performance of Tantalum Bolts
Tantalum is a refractory metal with exceptional high-temperature strength and stability in vacuum or inert atmospheres. The material maintains useful mechanical properties up to 2000°C (3632°F) in non-oxidizing environments, making it suitable for extreme temperature applications in vacuum furnaces, rocket engines, and aerospace propulsion systems . Tantalum's melting point of 2996°C (5425°F) is among the highest of all metals, exceeded only by tungsten and rhenium . The recrystallization temperature of tantalum is approximately 1200-1400°C, depending on purity and prior cold work . In oxidizing atmospheres, tantalum forms a protective oxide layer (Ta₂O₅) at moderate temperatures but may embrittle above 300°C due to oxygen diffusion . Therefore, tantalum bolts are typically specified for high-temperature applications in vacuum, inert gas, or reducing atmospheres. Ta-2.5W alloy offers improved high-temperature strength compared to pure tantalum while maintaining similar oxidation behavior.
Elevated Temperature Capabilities
Exceptional Corrosion Resistance of Tantalum Bolts
Tantalum is renowned for its outstanding corrosion resistance, often described as similar to glass but with the mechanical properties of a metal . The material forms a stable, adherent, and self-healing oxide layer (Ta₂O₅) that provides protection against virtually all acids and chemicals except hydrofluoric acid, hot concentrated alkalis, and fuming sulfuric acid (oleum) . Tantalum exhibits zero or near-zero corrosion rates in most aggressive media, making it the material of choice for critical chemical processing applications where other materials fail .
Corrosion Resistance to Common Media
The following list represents media to which tantalum exhibits nil or negligible corrosion (rates <0.05 mm/year) at temperatures up to at least 150°C (302°F) :
- Acetic acid
- Acetic anhydride
- Acetone
- Alcohols
- Aluminum chloride
- Aluminum sulfate
- Ammonium chloride
- Ammonium nitrate
- Ammonium phosphate
- Ammonium sulfate
- Aqua regia
- Barium chloride
- Benzoic acid
- Body fluids
- Boric acid
- Bromine (dry, <300°C)
- Butyric acid
- Calcium chloride
- Calcium hydroxide
- Carbolic acid
- Carbon dioxide
- Chloric acid
- Chlorinated brine
- Chlorine (dry, <250°C)
- Chlorine (wet, <350°C)
- Chloroacetic acid
- Chromic acid
- Citric acid
- Copper salts
- Fatty acids
- Ferric chloride
- Ferric sulfate
- Food stuffs
- Formaldehyde
- Formic acid
- Glycerine
- Hydrobromic acid
- Hydrocarbons
- Hydrochloric acid
- Hydrogen bromide (<400°C)
- Hydrogen chloride (<350°C)
- Hydrogen peroxide
- Hydrogen sulfide
- Lactic acid
- Magnesium chloride
- Magnesium sulfate
- Maleic acid
- Mercuric chloride
- Methyl alcohol
- Milk
- Mineral oils
- Mixed acids (sulfuric-nitric)
- Nickel salts
- Nitric acid
- Nitric acid (fuming)
- Nitric oxides
- Nitrogen (<300°C)
- Nitrous acid
- Organic acids
- Oxalic acid
- Oxygen (<300°C)
- Petroleum products
- Phenol
- Phosphoric acid (<4ppm F, <180°C)
- Pickling acids (except HNO3-HF)
- Potassium bromide
- Potassium chloride
- Potassium dichromate
- Potassium nitrate
- Potassium permanganate
- Potassium sulfate
- Propionic acid
- Refrigerants
- Sea water
- Silver nitrate
- Sodium acetate
- Sodium bisulfate (solution)
- Sodium bromide
- Sodium chlorate
- Sodium chloride
- Sodium cyanide
- Sodium dichromate
- Sodium hypochlorite
- Sodium nitrate
- Sodium nitrite
- Sodium phosphate
- Sodium silicate
- Sodium sulfate
- Sodium sulfide
- Sodium sulfite
- Sodium thiosulfate
- Stearic acid
- Succinic acid
- Sugar
- Sulfamic acid
- Sulfur (<500°C)
- Sulfur dioxide
- Sulfuric acid (<175°C)
- Sulfurous acid
- Tannic acid
- Tartaric acid
- Zinc chloride
- Zinc sulfate
Media to Avoid with Tantalum Bolts
- Hydrofluoric acid (HF) – any concentration, any temperature
- Hot concentrated alkalis – sodium hydroxide (NaOH), potassium hydroxide (KOH) above 50°C
- Fuming sulfuric acid (oleum) – limited resistance
- Ammonium hydroxide – limited resistance
- Fluoride salts – may cause attack
- Hydrogen >300°C – may cause embrittlement
- Oxygen >300°C – may cause embrittlement
Manufacturing Standards – Tantalum Bolts
All tantalum bolts are manufactured and tested to meet the following standards:
We offer surface finishes: plain (as-machined), chemically cleaned, passivated, or electropolished for medical applications. Controlled annealing processes per ASTM specifications ensure consistent mechanical properties. Specialized CNC heading, thread rolling, and machining for accurate bolt geometry per ASME, ISO, and DIN standards. Class 2A/3A/6g thread fit. 100% inspection available including dimensional inspection, thread verification, and non-destructive examination. Full traceability and material test reports (MTR) with mill certifications available. AS9100 and ISO 9001:2015 certified quality management. ISO 13485 certified for medical applications with cleanroom packaging available. Build-to-print specials to customer specifications are available.
Why RAYCHIN LIMITED – The Tantalum Bolt Authority
Contact the tantalum bolt experts
Request a quotation for tantalum bolts, hex bolts, socket head bolts, eye bolts – any standard (ASME, ISO, DIN) – any condition (annealed, stress-relieved), any quantity. Global delivery. Mechanical and corrosion data in MPa/ksi available for all products. Medical-grade tantalum per ASTM F560 available.
sales@ray-chin.com | +86 534 2166 566Our team provides technical support in English, German, Mandarin, Japanese. Request a quote, sample requests, and material evaluation available.
Request A Quote! We'll respond as soon as possible(within 12 hours)
![Tantalum Fasteners]( "Tantalum Fasteners")
Tantalum Fasteners![Tantalum Button Head Cap Screws]( "Tantalum Button Head Cap Screws")

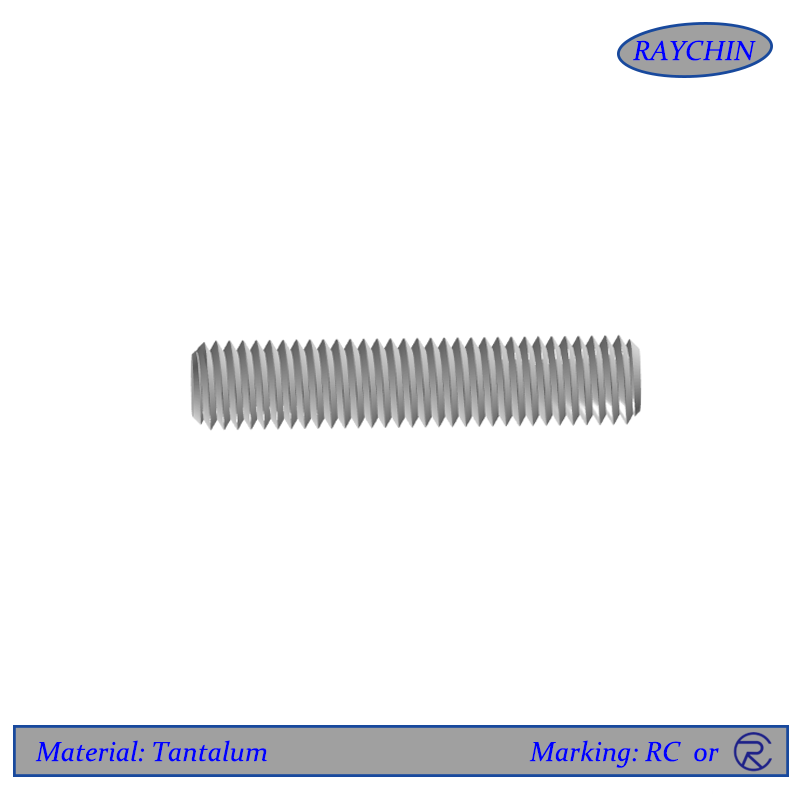

Tantalum Button Head Cap Screws![Tantalum Threaded Rods]( "Tantalum Threaded Rods")

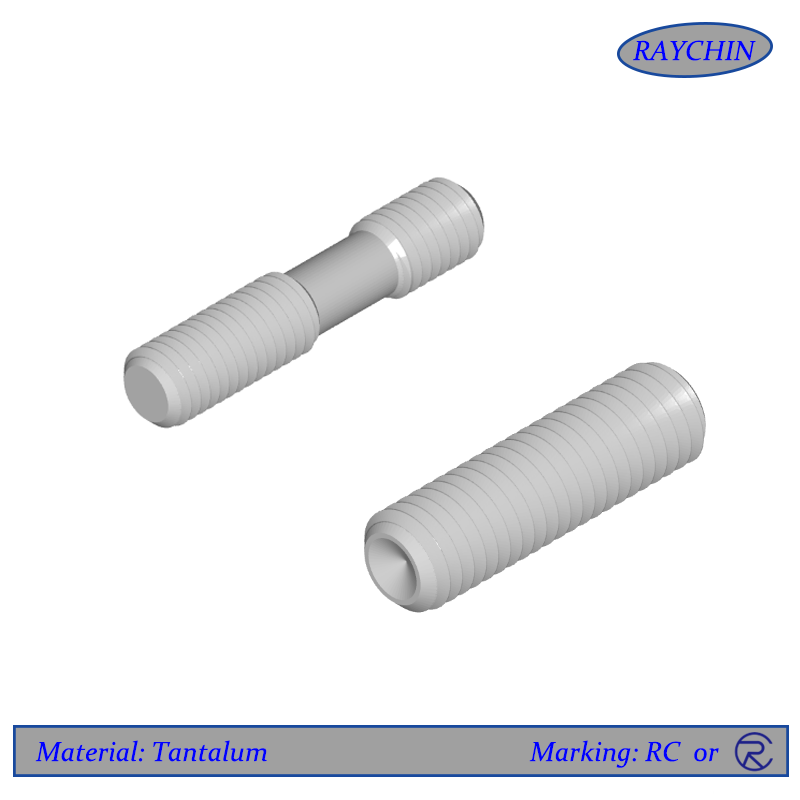

Tantalum Threaded Rods![Tantalum Studs]( "Tantalum Studs")

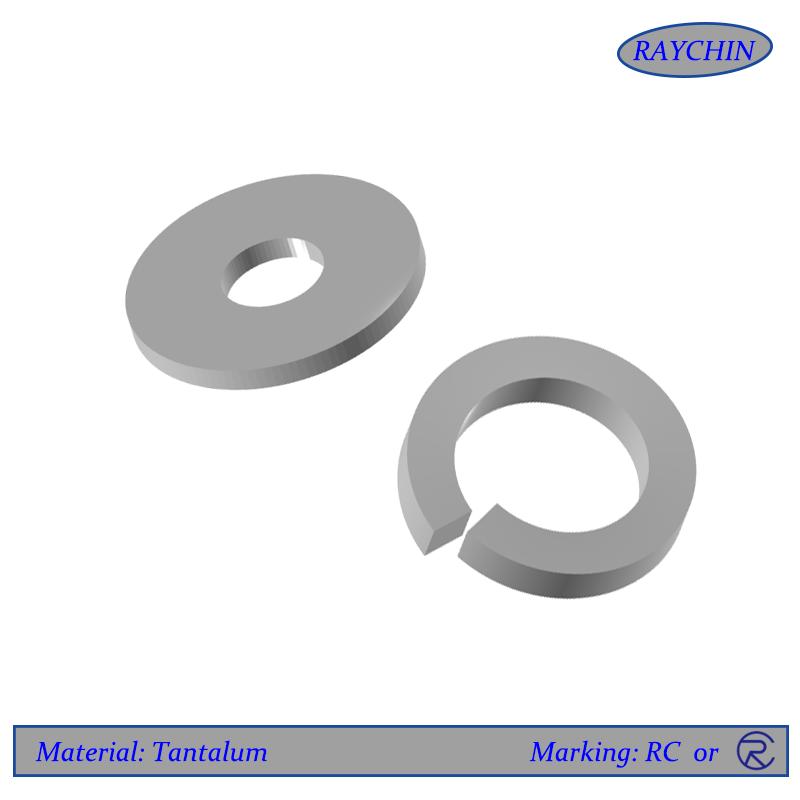

Tantalum Studs![Tantalum Washers]( "Tantalum Washers")
Tantalum Washers![Tantalum Screws]( "Tantalum Screws")

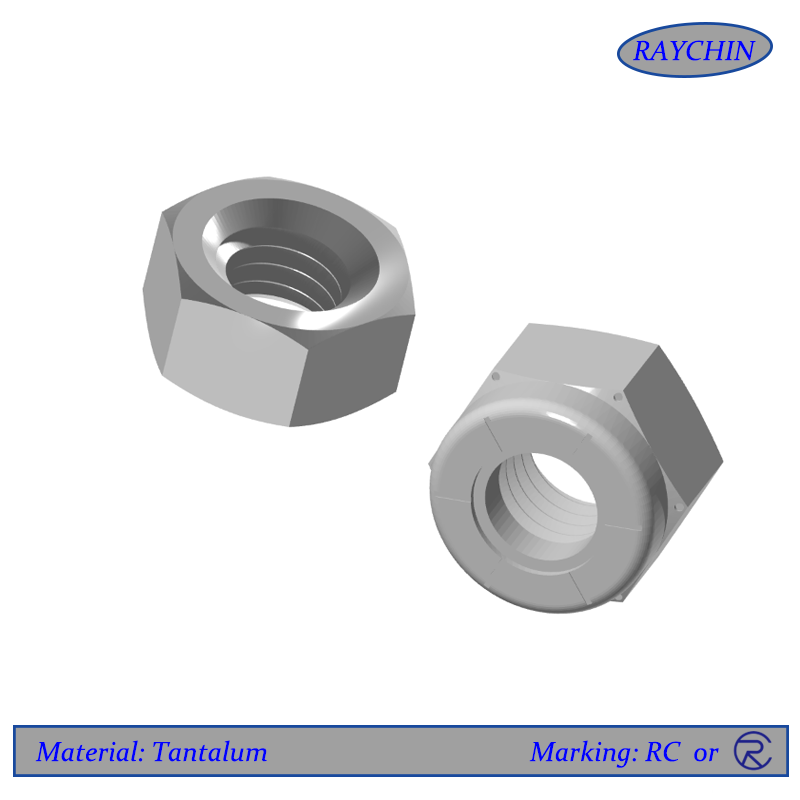

Tantalum Screws![Tantalum Nuts]( "Tantalum Nuts")
Tantalum Nuts![Tantalum Bolts]( "Tantalum Bolts")
Tantalum Bolts![Tantalum Shoulder Bolts]( "Tantalum Shoulder Bolts")
Tantalum Shoulder Bolts![Tantalum Hex Bolts]( "Tantalum Hex Bolts")
Tantalum Hex Bolts![Tantalum Hex Cap Screws]( "Tantalum Hex Cap Screws")
Tantalum Hex Cap Screws![Tantalum Socket Head Cap Screws]( "Tantalum Socket Head Cap Screws")

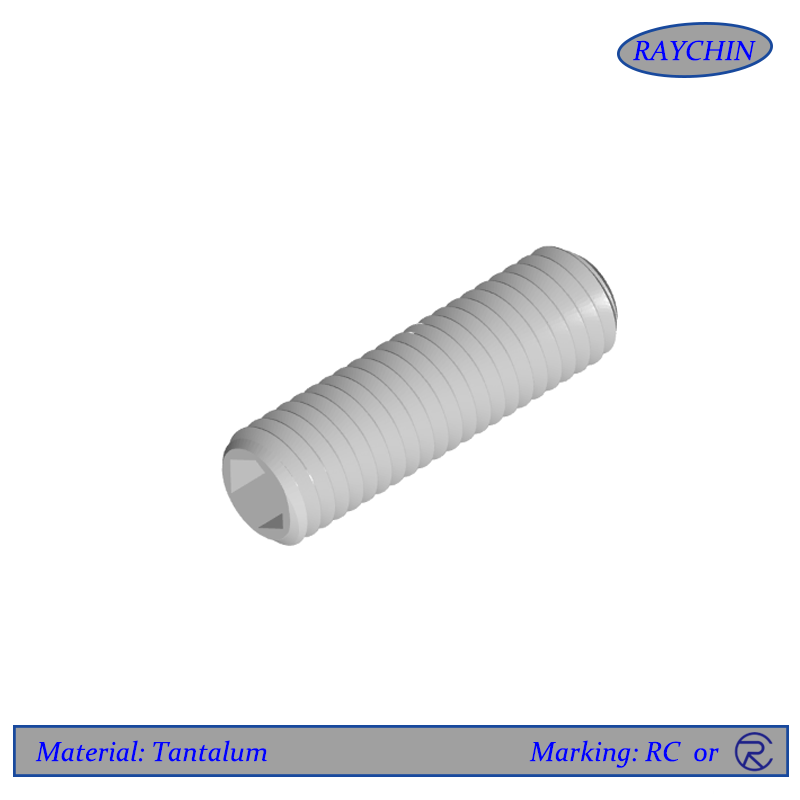

Tantalum Socket Head Cap Screws![Tantalum Set Screws]( "Tantalum Set Screws")
Tantalum Set Screws![Tantalum Pan Head Screws]( "Tantalum Pan Head Screws")

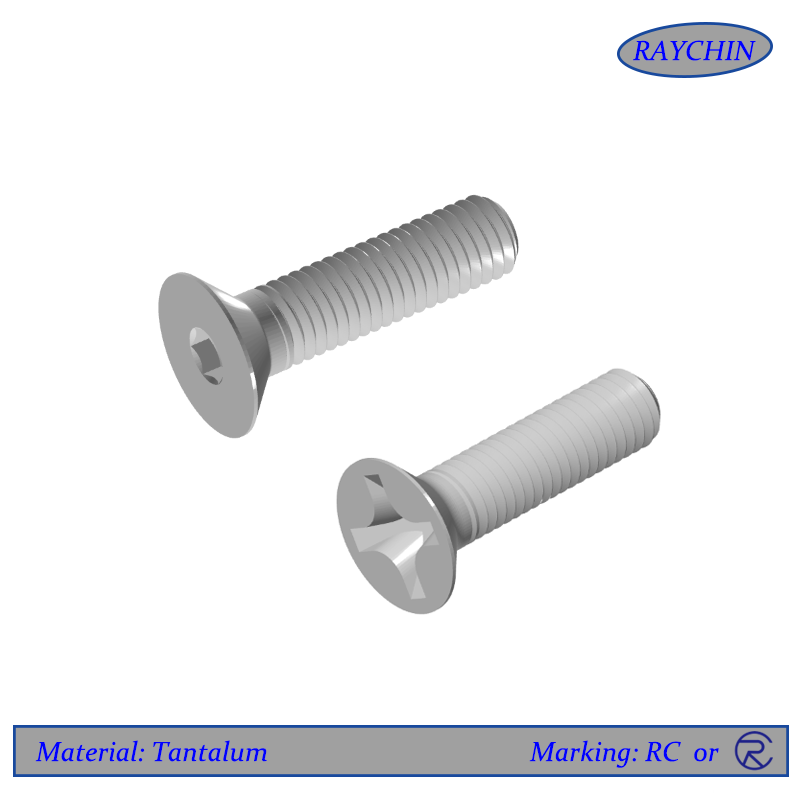

Tantalum Pan Head Screws![Tantalum Flat Head Screws]( "Tantalum Flat Head Screws")

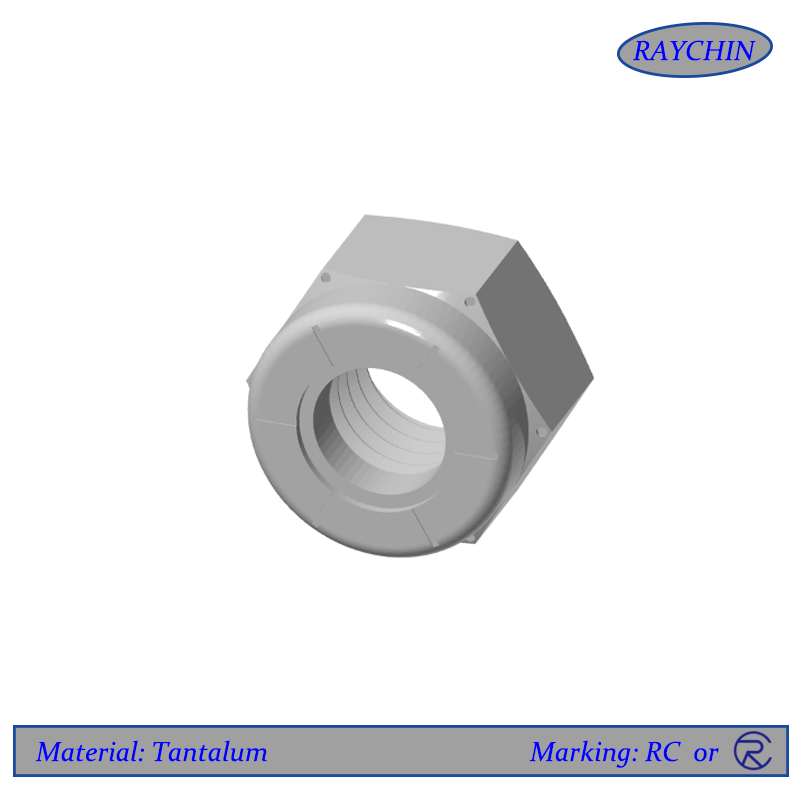

Tantalum Flat Head Screws![Tantalum Lock Nuts]( "Tantalum Lock Nuts")
