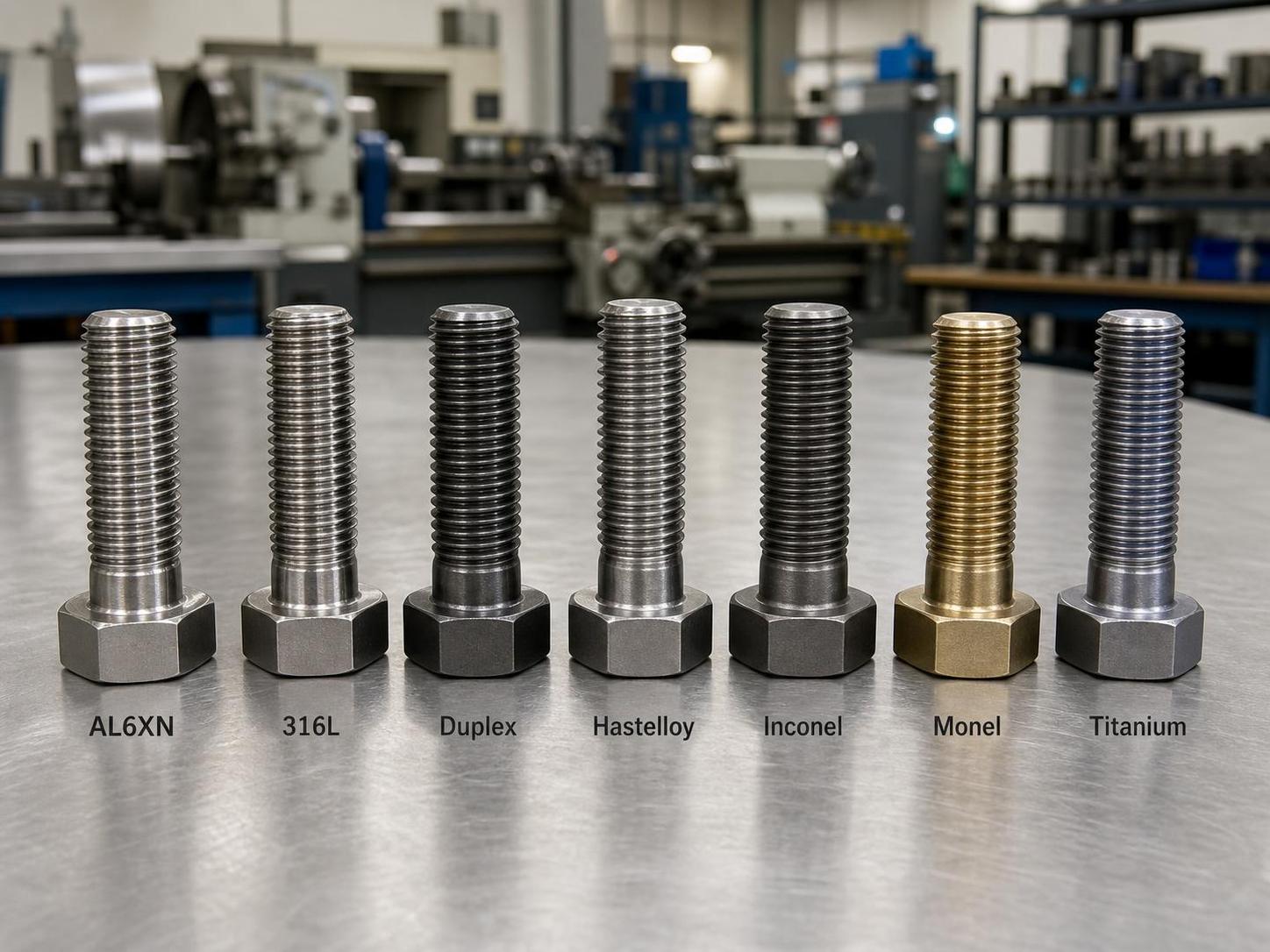

AL6XN vs 316L, Duplex, Hastelloy, Inconel, Titanium & More: The Ultimate Seawater & Chloride Fastener Showdown

Choosing the right fastener material for a chloride‑rich environment—seawater, bleach, flue gas desulfurization, or chemical processing—means navigating a dense field of candidate alloys. AL6XN has emerged as a powerful 6Mo super austenitic stainless steel, offering exceptional localized corrosion resistance at a cost far below nickel‑base alloys. But where does it sit on the spectrum? How does it compare against 316L, 317L, 904L, duplex 2205, super duplex 2507, 254SMO, Hastelloy C‑276, Inconel 625, Monel 400, and titanium? RAYCHIN LIMITED, a specialist global manufacturer of all these alloys, presents this authoritative, data‑driven comparison to help you make the right material decision for your specific environment and budget.

1. AL6XN vs 316L Fasteners

AL6XN vs 316L fasteners is the most fundamental upgrade path for chloride service. The decisive factor is PREN (Pitting Resistance Equivalent Number). 316L has a PREN of approximately 24–26, relying on 2–3% molybdenum. AL6XN, with 6–7% Mo and 0.18–0.25% nitrogen, has a PREN of 44–46—nearly double. This translates directly to the field: 316L fasteners pit within hours in warm, stagnant seawater or acidic brine; AL6XN fasteners resist crevice corrosion at temperatures up to 40°C+ in the same environments. AL6XN also provides superior resistance to chloride stress corrosion cracking (SCC). When to use AL6XN instead of 316L: whenever the service environment involves seawater, brackish water, chlorinated process streams, or any fluid with >1000 ppm chlorides at temperatures above 30°C.

2. AL6XN vs 317L Bolts

317L (UNS S31703) contains 3–4% Mo, giving it a PREN of approximately 28–30—a moderate improvement over 316L. It is specified for slightly more aggressive chloride environments. However, AL6XN vs 317L bolts still shows a dramatic performance gap. AL6XN's critical pitting temperature is typically 20–30°C higher, and its crevice corrosion resistance is in a different league entirely. For marginal upgrades over 316L where cost is the primary driver, 317L may suffice; for reliable performance in seawater or strong chloride solutions, AL6XN is required.

3. AL6XN vs 904L Fasteners

904L (UNS N08904) is another super austenitic stainless steel with approximately 4–5% Mo and a PREN of about 35. It offers better corrosion resistance than 316L and 317L, but still falls short of AL6XN's 6% Mo level. AL6XN vs 904L fasteners: AL6XN provides superior pitting and crevice corrosion resistance. 904L is sometimes specified in European designs; AL6XN is more common in US‑based projects. Both resist chloride SCC, but AL6XN is the more robust choice for the most aggressive seawater and chemical environments.

4. AL6XN vs 2205 Duplex Fasteners

Duplex 2205 (UNS S32205) offers high yield strength (450 MPa) and a PREN of approximately 35. It is widely used for seawater piping and structural bolting. AL6XN vs 2205 duplex fasteners: 2205 has a critical pitting temperature of about 35°C, while AL6XN exceeds 60°C. For cold seawater (below 20°C), 2205 performs adequately; for warm, tropical seawater or where crevice corrosion is a risk, AL6XN is the safer choice. Duplex 2205 also has a maximum service temperature of about 300°C, while AL6XN can be used to 540°C.

5. AL6XN vs 2507 Super Duplex Bolts

Super duplex 2507 (UNS S32750) has a PREN of approximately 42–44, very close to AL6XN's 44–46. Both alloys are often considered interchangeable for many seawater applications. AL6XN vs 2507 super duplex bolts: 2507 offers higher yield strength (550 MPa vs 310 MPa for AL6XN), making it preferred for high‑strength bolting. AL6XN offers slightly better crevice corrosion resistance and superior chloride SCC resistance. For high‑pressure seawater piping, 2507 may be chosen; for the most severe crevice and SCC conditions, AL6XN has the edge.

6. AL6XN vs 254SMO Fasteners

AL6XN vs 254SMO fasteners: Both are 6Mo super austenitic stainless steels with nearly identical PREN values and corrosion performance. 254SMO (UNS S31254) is a widely used alternative, particularly in Europe. In practice, these two alloys are interchangeable for most fastener applications. RAYCHIN stocks AL6XN as our primary 6Mo grade and can supply 254SMO upon request.

7. AL6XN vs Hastelloy C‑276 Bolts

Hastelloy C‑276 provides broader chemical resistance—handling both reducing and oxidizing acids—than AL6XN. However, its yield strength is lower (283 MPa) and its cost is 3–5 times higher. For seawater and chloride‑dominated environments, AL6XN delivers the necessary corrosion resistance at a fraction of the cost. Hastelloy C‑276 is reserved for mixed‑acid environments where chlorides are present alongside sulfuric or hydrochloric acid.

8. AL6XN vs Inconel 625 Fasteners

Inconel 625 offers excellent seawater corrosion resistance and high‑temperature strength to 650°C. It costs 3–4 times more than AL6XN. For subsea and HPHT wellhead applications, Inconel 625 is often specified for its combination of corrosion resistance and strength. AL6XN provides a cost‑effective alternative for topside seawater piping, desalination, and FGD systems where temperatures and pressures are moderate.

9. AL6XN vs Monel 400

Monel 400 is a nickel‑copper alloy with exceptional resistance to seawater and hydrofluoric acid, but its yield strength is limited to 240 MPa. AL6XN provides higher strength and better resistance to oxidizing chlorides (e.g., bleach, chlorinated seawater). For general marine and chemical bolting in chloride environments, AL6XN is often preferred; for HF acid service, Monel 400 is required.

10. AL6XN vs Titanium Fasteners

Titanium Grade 5 is immune to seawater corrosion and offers a high strength‑to‑weight ratio. However, it is expensive and susceptible to attack by reducing acids and fluorides. AL6XN provides broader chemical compatibility at a lower cost, though at a higher weight. Titanium is chosen for aerospace, high‑performance marine, and weight‑critical applications; AL6XN is the cost‑effective champion for industrial chloride service.

11. Super Austenitic vs Duplex for Chloride Service — Best Material for Seawater Fasteners

The choice between super austenitic vs duplex for chloride service often comes down to temperature, strength requirements, and cost. The table below summarizes the best material for seawater fasteners under various conditions.

12. AL6XN vs 6Mo Stainless Steel Cost

AL6XN vs 6Mo stainless steel cost: All 6Mo alloys (AL6XN, 254SMO, 1925hMo) are priced similarly, with small variations based on global availability and mill surcharges. Typically, 6Mo alloys cost 2–3 times more than 316L, but less than half the price of Hastelloy C‑276 or Inconel 625. For projects where 316L is marginal but nickel alloys are unaffordable, AL6XN is the engineering and economic sweet spot.

13. RAYCHIN's Multi‑Alloy Manufacturing and Expert Guidance
