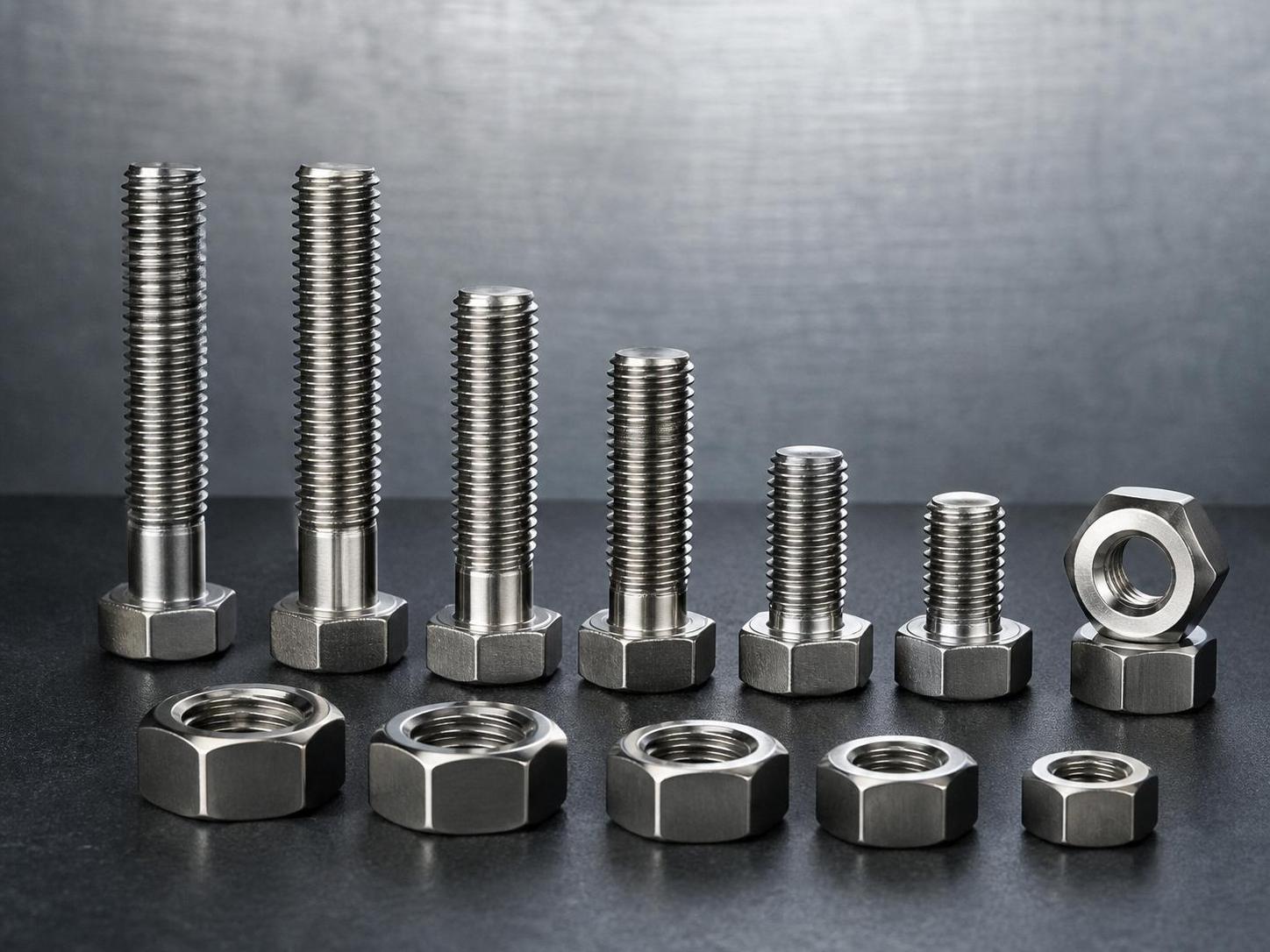

Nitronic Fasteners: Complete Technical Properties – Tensile, Galling Resistance, Torque, Cryogenics & More

Selecting the optimal material for a bolted joint often comes down to balancing strength, corrosion resistance, and galling behavior. Nitronic 50 and Nitronic 60—two nitrogen‑strengthened austenitic stainless steels—address this challenge from complementary angles: Nitronic 50 delivers exceptional strength and corrosion resistance, while Nitronic 60 provides industry‑leading anti‑galling performance. RAYCHIN LIMITED, a specialist global manufacturer of high‑performance alloy fasteners, provides this comprehensive technical reference to give engineers the precise data needed to design reliable, maintenance‑friendly bolted connections.

1. Mechanical Properties: Tensile Strength, Yield Strength & Hardness

The strength of Nitronic alloys comes from interstitial nitrogen alloying and optional cold working. Nitronic 50 tensile strength and Nitronic 60 yield strength vary with the level of cold reduction. RAYCHIN supplies fasteners in both annealed and cold‑drawn conditions to match your requirements.

Nitronic 50 hardness in the cold‑drawn condition reaches up to 38 HRC, providing high wear resistance without losing the alloy's excellent corrosion performance. This combination makes Nitronic 50 a preferred choice for pump shafts, valve stems, and high‑strength marine bolting.

2. Galling and Wear Resistance: Nitronic 60's Defining Advantage

Nitronic galling resistance is where the two alloys diverge most dramatically. Nitronic 60's unique silicon‑manganese chemistry promotes the formation of a protective oxide film that prevents metal‑to‑metal adhesion under high contact stress. In standardized ASTM G98 galling tests, Nitronic 60 withstands contact pressures exceeding 50 ksi (345 MPa) without galling—over ten times the threshold of type 304 stainless steel.

Nitronic 60 wear resistance is further enhanced by the alloy's high work‑hardening rate. Under sliding contact, the surface rapidly hardens, creating a wear‑resistant layer that resists further deformation. This makes Nitronic 60 anti‑galling bolts the definitive solution for:

• Valve stem fasteners subjected to frequent cycling
• Bridge bearing assemblies where disassembly is required for inspection
• Marine deck hardware exposed to salt spray and repeated tightening
• Any application where thread seizure would cause costly downtime or replacement

RAYCHIN frequently supplies Nitronic 50 bolts paired with Nitronic 60 nuts—a combination that delivers the high tensile strength of Nitronic 50 with the galling‑free assembly of Nitronic 60. This mixed‑alloy approach is one of the most effective anti‑galling strategies available without resorting to coatings.

3. Torque Values and Tightening Recommendations

Accurate Nitronic torque values are essential for reliable joint performance. Both Nitronic alloys have a higher coefficient of friction than carbon steel, and the friction coefficient varies with the level of cold work and surface finish. RAYCHIN provides the following conservative Nitronic bolt tightening torque guidelines for Nitronic 50 in the cold‑drawn condition (100 ksi yield), based on 50% of yield strength and a lubricated nut factor K = 0.16:

For Nitronic 60 fasteners, reduce these values by approximately 25% due to the lower yield strength. RAYCHIN can provide customized torque charts for your specific bolt geometry, surface finish, and lubrication condition. Always use calibrated torque wrenches and a slow, steady application speed.

4. Machining Nitronic 50 and Nitronic 60

Machining Nitronic 50 and machining Nitronic 60 both present challenges typical of high‑nitrogen, work‑hardening austenitic stainless steels. The alloys generate significant heat at the cutting edge and harden rapidly, leading to built‑up edge and tool wear. RAYCHIN's production floor employs proven strategies:

• Rigid CNC turning centers with positive‑rake carbide inserts (PVD‑coated) to shear the material cleanly.
• Moderate cutting speeds (20–35 m/min for turning) and heavy feed rates to minimize work hardening.
• High‑pressure, chlorinated cutting oil for effective cooling and chip evacuation.
• Thread rolling rather than thread cutting for final thread production—this work‑hardens the thread surface, enhancing fatigue life and galling resistance.

Our experienced machinists ensure that dimensional accuracy and surface finish meet the most stringent aerospace and industrial standards.

5. Nitronic 50: Heat Treatment, Cryogenic Properties, SCC Resistance & Magnetism

Nitronic 50 heat treatment is limited to solution annealing (1050–1100°C, followed by water quench) to restore ductility after cold working. The alloy cannot be hardened by heat treatment; its strength is derived entirely from cold work. This means that no embrittlement occurs from aging, and the mechanical properties remain stable over long service periods.

Nitronic 50 cryogenic properties are exceptional. The alloy retains high toughness and ductility down to -196°C (-320°F), with Charpy impact values exceeding 80 J at cryogenic temperatures. It does not exhibit a ductile‑to‑brittle transition, making it suitable for LNG piping, liquid oxygen pump fasteners, and superconducting magnet structural bolting.

Nitronic stress corrosion cracking resistance is superior to conventional austenitic stainless steels. With a PREN (Pitting Resistance Equivalent Number) of approximately 34, Nitronic 50 resists chloride pitting and crevice corrosion far better than 304 or 316. It also exhibits excellent resistance to chloride SCC, even in warm, concentrated brine environments.

Nitronic magnetic permeability is extremely low. Nitronic 50 remains non‑magnetic even after severe cold working (permeability typically ≤1.02), meeting the stringent requirements for naval mine‑countermeasure equipment, MRI medical devices, and sensitive electronic instrumentation. Nitronic 60 also exhibits very low permeability, though it can become slightly magnetic after heavy cold deformation.

6. RAYCHIN's Integrated Quality Assurance

Every Nitronic fastener shipment from RAYCHIN LIMITED is backed by our rigorous quality system:

• 100% Positive Material Identification (PMI) using optical emission spectrometry
• Lot‑specific tensile and hardness testing
• EN 10204 Type 3.1 certification as standard; Type 3.2 on request
• Optional pre‑applied anti‑galling coatings (MoS₂, PTFE) for critical assembly applications
