The Versatile High-Strength Stainless Steel Solution

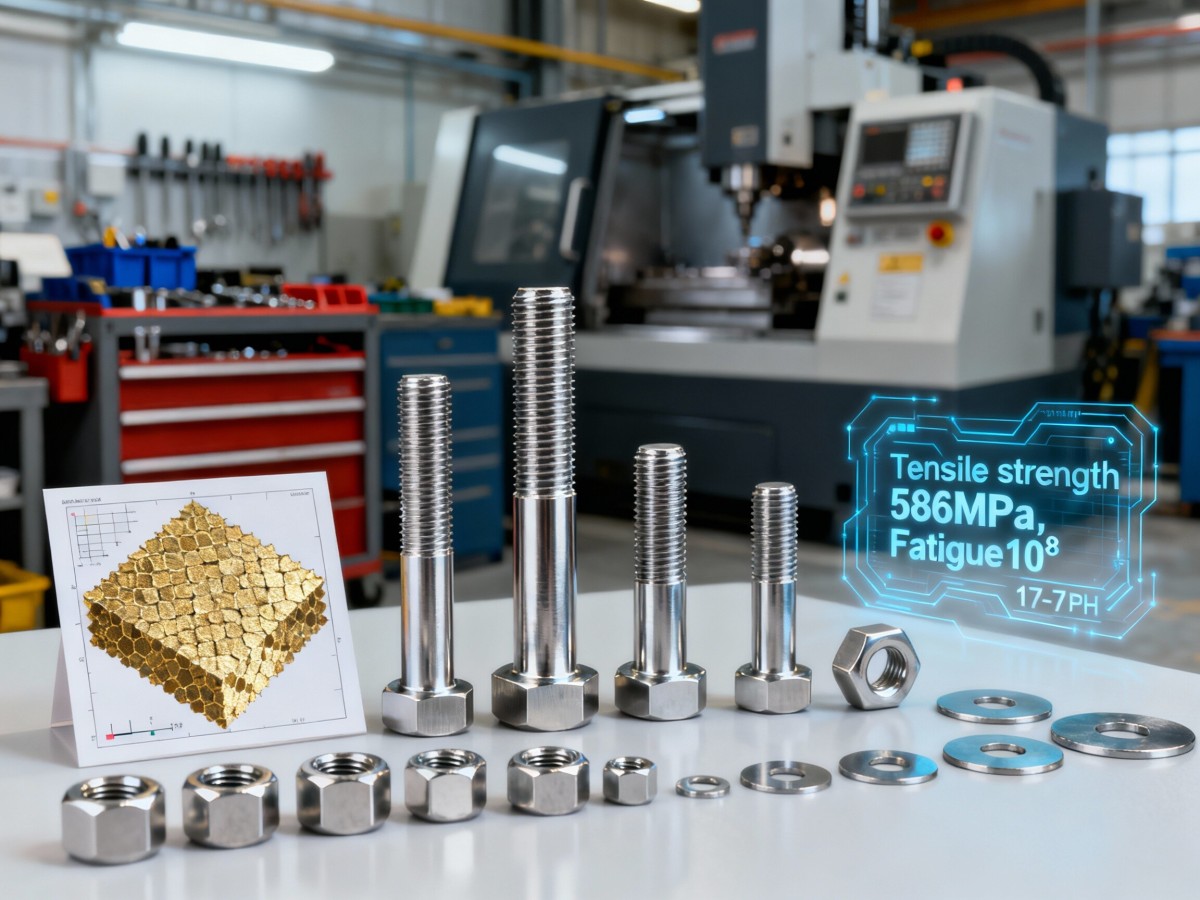

In applications demanding a unique combination of corrosion resistance, high strength, and good fabrication characteristics, 17-7PH stainless steel fasteners (bolts, nuts, screws, washers) offer engineers a balanced material solution. As specialists in high-performance stainless steel fasteners, RAYCHIN provides precision-manufactured 17-7PH fastening components that bridge the gap between conventional stainless steels and more expensive superalloys. This comprehensive guide addresses the most critical technical questions about 17-7PH fasteners while providing detailed engineering data for informed material selection.

Part 1: Scientific Foundation of 17-7PH Stainless Steel

1.1 Chemical Composition: Precision Engineering for Controlled Aging

17-7PH (UNS S17700, also known as AISI 631) is a semi-austenitic, precipitation-hardening stainless steel with a carefully balanced composition:

RAYCHIN Quality Assurance: Our certified 17-7PH fasteners are manufactured from material batches that undergo rigorous chemical analysis to ensure optimal composition for consistent aging response and mechanical properties.

1.2 Mechanical Properties: Strength Through Controlled Transformation

The unique characteristic of 17-7PH is its ability to achieve different mechanical property combinations through specific heat treatment conditions:

Standard Heat Treatment Conditions and Properties:

Specialized Performance Characteristics:

• Fatigue Strength: 75-85 ksi (517-586 MPa) at 10⁸ cycles (Condition RH950, R=0)

• Fracture Toughness: 60-80 ksi√in (66-88 MPa√m) in Condition TH1050

• Corrosion Resistance: Comparable to Type 304 stainless steel in most environments

• Thermal Expansion: 5.9 × 10⁻⁶/°F (10.6 × 10⁻⁶/°C) from 70-600°F

• Magnetic Response: Essentially non-magnetic in Condition A; slightly magnetic after aging

Key Heat Treatment Processes:

1. Solution Treatment (Condition A): 1950°F (1066°C) for 0.5-1 hour, air cool or faster

2. Conditioning Treatment: 1400°F (760°C) for 1.5 hours, air cool to room temperature within 1 hour

3. Aging Treatments:

   • RH950: Hold at 1400°F (760°C) for 90 min, cool to 60°F (16°C) within 1 hour, hold 30 min, age at 950°F (510°C) for 1 hour

   • CH900: Cool to -100°F (-73°C) for 8 hours, age at 900°F (482°C) for 1 hour

   • TH1050: Age at 1050°F (566°C) for 1.5 hours

Part 2: Critical Technical Questions & Expert Answers

2.1 What are the advantages of 17-7PH over other precipitation-hardening stainless steels?

17-7PH offers several distinct advantages that make it particularly suitable for high-strength stainless steel fasteners:

RAYCHIN Engineering Insight: "For applications requiring high-strength corrosion-resistant fasteners with the flexibility to select specific strength levels through heat treatment, 17-7PH provides unmatched versatility among precipitation-hardening stainless steels."

2.2 How does the corrosion resistance of 17-7PH compare to standard austenitic stainless steels?

17-7PH exhibits corrosion resistance generally comparable to Type 304 stainless steel:

• Atmospheric Corrosion: Excellent resistance, suitable for marine atmospheres

• Fresh Water: Excellent performance in most fresh water environments

• Mild Chemical Environments: Good resistance to organic chemicals, food products, and mild acids

• Stress Corrosion Cracking: Improved resistance compared to standard austenitic grades, but not immune

• Pitting & Crevice Corrosion: Similar to Type 304; for severe chloride environments, more resistant grades should be considered

Critical Consideration: While 17-7PH offers good general corrosion resistance, its primary advantage is strength, not maximum corrosion resistance. For severely corrosive environments, other materials may be more appropriate.

2.3 What are the key considerations for machining and fabricating 17-7PH fasteners?

Machining in Condition A (Annealed):

• Excellent machinability, comparable to Type 304 stainless steel

• Produces continuous chips, requiring sharp tools with positive rake angles

• Recommended speeds: 60-100 SFM (18-30 m/min) for turning

• Use sulfurized or chlorinated cutting oils for best results

Heat Treatment Considerations:

• All machining should be completed in Condition A before final aging

• Distortion during heat treatment is minimal compared to martensitic grades

• Aging response is consistent and predictable with proper temperature control

Thread Formation:

• Thread rolling is preferred over cutting for maximum fatigue resistance

• Threads should be formed before final aging heat treatment

• Consider special thread forms for optimal load distribution in high-strength applications

RAYCHIN Manufacturing Expertise: Our controlled heat treatment processes ensure that every batch of 17-7PH fasteners achieves the specified mechanical properties with minimal distortion and optimal dimensional stability.

Part 3: Industry-Specific Applications & Solutions

3.1 Aerospace & Defense: High Strength with Weight Savings

Primary Applications:

• Aircraft Structural Fasteners: High-strength bolts for airframe components requiring good corrosion resistance

• Missile & Rocket Components: Fasteners for guidance systems and structural elements

• Helicopter Components: Bolts and screws for rotor systems and airframe structures

• Spacecraft Hardware: Fasteners requiring good strength-to-weight ratio and vacuum compatibility

Performance Advantages:

• High strength-to-weight ratio compared to many alloy steels

• Good corrosion resistance reduces maintenance requirements

• Non-magnetic properties in certain conditions for sensitive applications

• Proven reliability in aerospace applications for decades

3.2 Chemical & Food Processing: Strength in Moderate Corrosive Environments

Critical Applications:

• Process Equipment Fasteners: Bolts for reactors, mixers, and vessels in moderate chemical environments

• Food Processing Machinery: High-strength fasteners for equipment requiring regular cleaning

• Pharmaceutical Equipment: Components for tablet presses and processing machinery

• Pulp & Paper Industry: Fasteners for equipment exposed to corrosive process chemicals

Technical Benefits:

• Resistance to organic acids and food products

• Easy cleaning and sanitization

• Good wear resistance for moving components

• Compliance with FDA regulations for food contact applications

3.3 Marine & Coastal Applications: Strength in Salt-Air Environments

Essential Applications:

• Boat Hardware: High-strength fasteners for structural components and rigging

• Coastal Infrastructure: Bolts for bridges, piers, and offshore structures

• Marine Electronics: Fasteners for radar and communication equipment housings

• Deck Hardware: High-load fasteners for winches, cleats, and railings

Operational Advantages:

• Good resistance to marine atmospheres

• High strength for critical load-bearing applications

• Reduced maintenance compared to carbon steel alternatives

• Good fatigue resistance for dynamic loading conditions

3.4 Oil & Gas Industry: Reliable Performance in Demanding Conditions

Specialized Applications:

• Wellhead Components: Fasteners for Christmas trees and surface equipment

• Instrumentation Hardware: Bolts for pressure sensors and control equipment

• Pump & Valve Components: High-strength fasteners for critical fluid handling equipment

• Structural Components: Bolts for platforms and support structures

Compliance & Reliability:

• Good performance in sour service with proper material condition

• High strength for high-pressure applications

• Reduced hydrogen embrittlement risk compared to high-strength steels

• Long-term reliability in challenging environments

Part 4: Comprehensive Material Comparison

4.1 Direct Performance Comparison Table

4.2 Selection Decision Matrix

Choose 17-7PH Fasteners When:

• Strength requirements exceed those of standard austenitic stainless steels

• Good corrosion resistance is needed but not extreme (similar to Type 304)

• Weight savings are important compared to plated steel alternatives

• Non-magnetic properties may be advantageous

• A range of strength levels might be needed for different components

Consider Alternatives When:

• Maximum corrosion resistance is required (consider higher alloys)

• Operating temperatures consistently exceed 900°F (482°C)

• Cost is the primary driver and corrosion resistance can be sacrificed

• Magnetic properties are specifically required

Part 5: The RAYCHIN Engineering Advantage for 17-7PH Fasteners

5.1 Specialized Manufacturing Capabilities

• Precision Heat Treatment: Controlled atmosphere furnaces for consistent aging response

• Advanced Thread Rolling: Produces superior fatigue-resistant threads for high-performance 17-7PH bolts

• Quality Control: 100% dimensional inspection and lot traceability

• Surface Finishing: Passivation, electropolishing, and special coatings available

5.2 Technical Support Services

• Material Selection Guidance: Helping determine if 17-7PH is optimal for your application

• Heat Treatment Optimization: Recommending the best condition for your specific requirements

• Failure Analysis: Laboratory services to investigate and prevent fastener failures

• Application Engineering: Custom designs for unique fastening challenges

5.3 Certification & Compliance

• Material Standards: Full compliance with AMS 5528, AMS 5644, ASTM A564, and customer specifications

• Testing Capabilities: Mechanical testing, corrosion testing, and metallurgical analysis

• Traceability: Complete documentation from raw material to finished fastener

• Industry Approvals: Aerospace, defense, and industrial quality systems

Engineering Excellence with 17-7PH Fasteners

17-7PH stainless steel fasteners represent an optimal balance of strength, corrosion resistance, and cost-effectiveness for a wide range of demanding applications. With their unique ability to achieve different strength levels through controlled heat treatment, they offer engineers unprecedented flexibility in fastener design and selection.

The RAYCHIN Commitment: We deliver more than just precision 17-7PH fasteners—we provide engineered solutions backed by technical expertise and manufacturing excellence. Our comprehensive approach ensures reliable performance in your most challenging applications.

Next Steps for Your Project:

1. Technical Consultation: Contact our engineering team for application-specific recommendations

2. Sample Evaluation: Request test samples for your qualification process

3. Heat Treatment Selection: Discuss the optimal condition for your performance requirements

4. Volume Production: Leverage our manufacturing capabilities for reliable supply

Contact RAYCHIN today to discuss how certified 17-7PH fasteners can enhance the performance and reliability of your aerospace, chemical processing, marine, or industrial applications. Request our 17-7PH Fastener Technical Guide or schedule a consultation with our engineering specialists.
