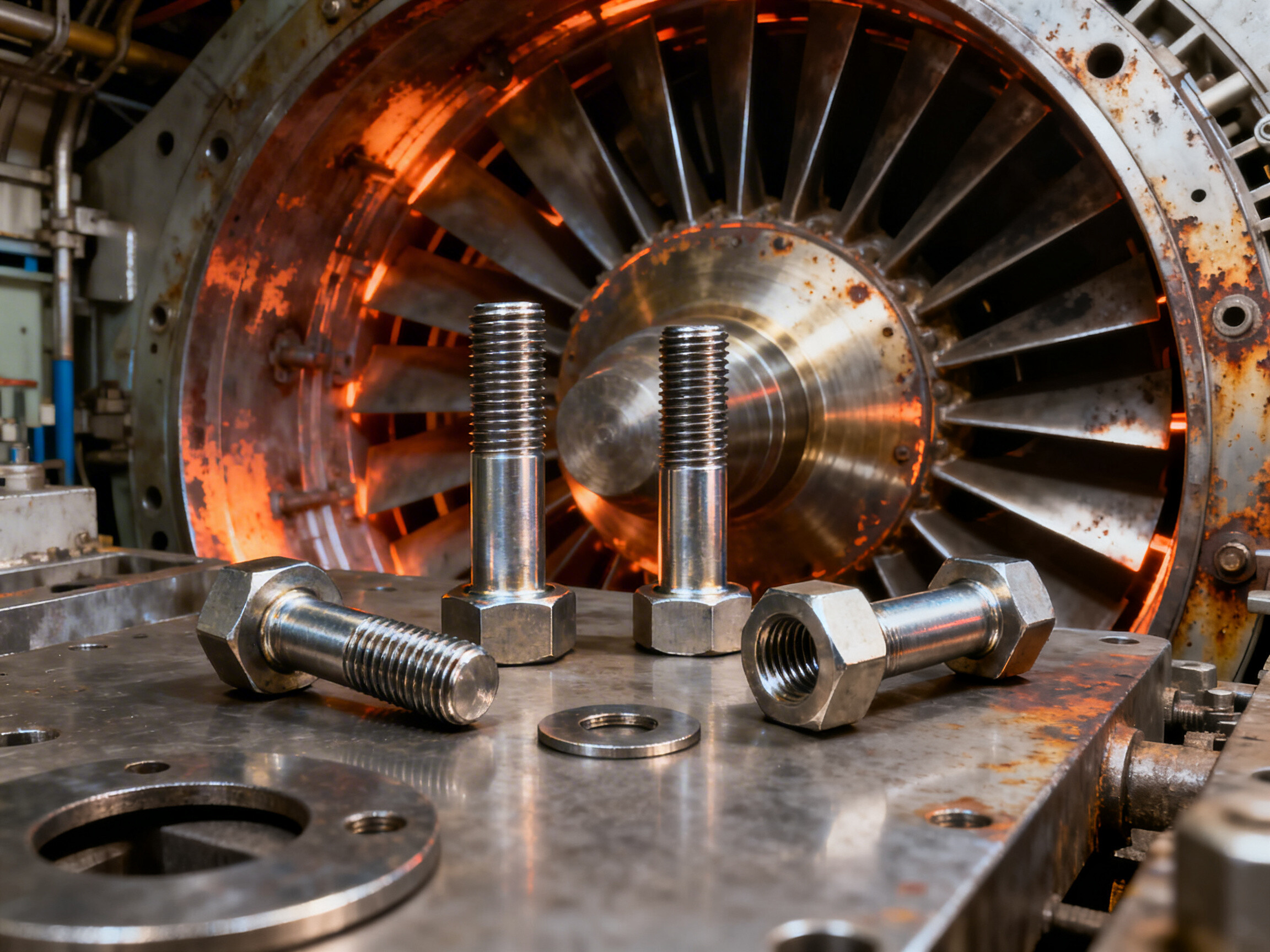

In the most demanding thermal environments on Earth—inside jet engines, gas turbines, and industrial furnaces—Nimonic fasteners (including bolts, nuts, screws, and washers) represent the engineered solution when conventional materials fail. As specialists in high-performance superalloy fasteners, RAYCHIN manufactures precision Nimonic fastening components that deliver exceptional creep resistance, oxidation protection, and long-term reliability at temperatures exceeding 1500°F (815°C). This comprehensive guide addresses the most searched technical questions about Nimonic fasteners while providing detailed engineering data for informed material selection in critical high-temperature applications.

Part 1: Scientific Foundation of Nimonic Superalloys

1.1 Chemical Composition: Advanced Metallurgy for Extreme Thermal Service

Nimonic alloys are precipitation-hardening nickel-chromium superalloys with carefully balanced compositions optimized for specific temperature ranges and mechanical requirements. First developed in 1940 in England, these alloys represent one of the earliest and most successful families of γ' (gamma prime) strengthened superalloys .

Primary Nimonic Grades for Fastener Applications:

Critical Strengthening Mechanism:
Nimonic alloys derive their exceptional high-temperature strength through γ' (gamma prime) precipitation hardening. The coherent Ni₃(Al,Ti) precipitates form during controlled aging heat treatment, creating obstacles to dislocation movement at elevated temperatures. The volume fraction, size, and distribution of these precipitates directly determine the alloy's creep resistance and stress rupture life .

Special Variant Highlights:

• Nimonic 80A: The most common fastener grade, offering excellent balance of strength and fabricability up to 1500°F (815°C)

• Nimonic 90: Enhanced with cobalt for higher temperature capability (up to 1700°F/925°C) and superior creep resistance

• Nimonic 91: High-chromium variant (27-30% Cr) for improved corrosion resistance in salty and sulfur-based environments

• Nimonic 75: Lower strength but excellent oxidation resistance up to 1300°F (704°C) for furnace applications

RAYCHIN Quality Assurance: Our certified Nimonic fasteners are manufactured from vacuum induction melted (VIM) material with full traceability, ensuring optimal composition and consistent aging response for maximum high-temperature performance.

1.2 Mechanical Properties: Strength Retention at Extreme Temperatures

Nimonic alloys exhibit exceptional mechanical properties specifically optimized for high-temperature service. Unlike conventional alloys that lose strength rapidly above 1000°F, Nimonic fasteners maintain useful mechanical properties well beyond 1500°F.

Room Temperature Mechanical Properties:

Note: The low strength values for Nimonic 91 in the annealed condition reflect its solution-treated state; this alloy achieves high strength through subsequent heat treatment .

Elevated Temperature Performance:

Temperature Capability Summary:

• Nimonic 80A: Maximum service temperature 1500-1600°F (815-870°C) with good oxidation resistance; can withstand up to 980°C (1796°F) in some applications

• Nimonic 90: Maximum service temperature 1688-1700°F (920-925°C) with superior creep resistance

• Nimonic 91: Long service life up to 900°C (1652°F) with enhanced corrosion resistance

• Nimonic 75: Continuous service up to 1300°F (704°C)

Specialized Performance Characteristics:

• Creep Resistance: Excellent long-term deformation resistance under sustained load at elevated temperatures

• Thermal Fatigue Resistance: Superior resistance to crack initiation from repeated thermal cycling

• Oxidation Resistance: Outstanding up to maximum service temperatures due to protective Cr₂O₃ scale

• Thermal Expansion Coefficient: Low, approximately 7.2-8.5 × 10⁻⁶/°F (13-15 × 10⁻⁶/°C)

• Thermal Conductivity: 6-8 BTU·in/(hr·ft²·°F) (10-14 W/m·K)

• Magnetic Properties: Essentially non-magnetic in all conditions

Critical Heat Treatment Requirements :

Part 2: Critical Technical Questions & Expert Answers

2.1 What distinguishes Nimonic alloys from other nickel-based superalloys for fastener applications?

This is the most fundamental selection question in high-temperature fastening. Nimonic alloys occupy a specific niche in the superalloy hierarchy, offering distinct advantages over competing families :

RAYCHIN Engineering Insight: "Nimonic fasteners are specifically optimized for applications requiring long-term creep resistance at temperatures between 1000-1600°F (538-870°C). While Inconel 718 offers higher room-temperature strength and better fabricability, Nimonic alloys maintain their strength more effectively under sustained load at elevated temperatures—the critical requirement for bolted joints in gas turbines and exhaust systems."

2.2 How do Nimonic 80A and Nimonic 90 compare for fastener applications?

This represents the most common selection dilemma in turbine and high-temperature bolting applications. The choice between these two workhorse grades depends on specific temperature and stress requirements :

Application Rule : Use Nimonic 80A fasteners for established turbine designs and exhaust systems up to 1500°F (815°C). Select Nimonic 90 fasteners for next-generation engines, higher operating temperatures, or applications where maximum creep resistance is critical.

2.3 What are the specific applications of Nimonic fasteners across different industries?

Nimonic fasteners are specified in applications where failure would be catastrophic and operating temperatures exceed the capability of stainless steels or lower-cost superalloys :

Aerospace & Aviation:

• Gas Turbine Fasteners: Combustion chamber bolts, turbine case bolts, compressor fasteners

• Jet Engine Components: Afterburner fasteners, exhaust system bolts, thrust reverser hardware

• Rocket Engine Hardware: Combustion chamber bolts, nozzle fasteners, structural components

• Auxiliary Power Units (APUs): Fasteners for high-temperature sections

Why Nimonic? Exceptional creep resistance under sustained high stress at temperature; excellent oxidation resistance in high-velocity hot gas streams; good thermal fatigue resistance for repeated thermal cycling; proven reliability in critical flight applications .

Power Generation:

• Gas Turbine Fasteners: Bolts for industrial gas turbines in power plants

• Heat Recovery Systems: Fasteners for HRSG (Heat Recovery Steam Generator) components

• Nuclear Components: Fasteners for high-temperature reactor systems (Nimonic 80A)

• Advanced Energy Systems: Bolting for concentrated solar power and advanced cycles

Why Nimonic? Long-term stability in continuous high-temperature operation; resistance to hot corrosion from fuel impurities; compatibility with thermal barrier coatings; reduced maintenance intervals .

Industrial Processing:

• Heat Treatment Equipment: Fasteners for furnaces, retorts, and radiant tubes (Nimonic 75)

• Chemical Processing: High-temperature reactor bolts and valve components

• Glass Manufacturing: Fasteners for melting and forming equipment

• Die-casting: Inserts and cores for aluminum and zinc die-casting

Why Nimonic? Maintains strength in reducing or oxidizing atmospheres; resistance to carburization and nitriding environments; long service life reducing production downtime .

Automotive & Motorsport:

• Turbocharger Systems: Fasteners for high-performance turbo applications

• Racing Engine Components: Bolts for exhaust manifolds and turbine housings

• Exhaust System Hardware: Automobile exhaust valves (Nimonic 80A)

• High-temperature springs: Alloy 90 for extreme applications

Why Nimonic? Weight savings through higher strength-to-weight ratio; reliability under extreme thermal cycling; resistance to exhaust gas corrosion; performance consistency in demanding conditions .

Medical & Nuclear:

• Medical Implants: Spinal implants and other load-bearing devices (Nimonic 80A biocompatibility)

• Nuclear Boiler Tube Parts: Nimonic 80A components

• Nuclear Reactor Fasteners: Nimonic 80A and 90 for high-temperature nuclear service

Why Nimonic? Excellent corrosion resistance in bodily fluids; stable mechanical properties under radiation; long-term reliability in safety-critical applications.

2.4 What are the machining and heat treatment challenges specific to Nimonic fasteners?

Nimonic alloys present significant manufacturing challenges that require specialized expertise :

Machining Considerations:

• Work Hardening: Pronounced tendency requires sharp, positive-rake carbide tools; conventional machining techniques used for iron alloys may be used but the alloy work-hardens rapidly during machining

• Cutting Parameters: Low speeds (30-60 SFM), high feed rates, consistent chip load

• Coolant Requirements: High-pressure coolant essential to control heat and prevent work hardening

• Tool Wear: Accelerated compared to conventional alloys; regular tool inspection required

• Timing: Nimonic 91 must be machined after being fully heat treated

Heat Treatment Precision:

• Solution Temperature Control: Critical ±25°F (±14°C) tolerance for optimal γ' dissolution

• Aging Uniformity: Temperature uniformity within ±15°F (±8°C) throughout load

• Cooling Rate Control: Specific cooling rates required to prevent undesirable precipitation

• Stress Relief: May require intermediate stress relief during complex machining

Welding Considerations :

• Nimonic 80A can be welded using common techniques (TIG, MIG) with matching filler metal

• Material must be in solution-treated condition prior to welding

• Post-weld heat treatment may be required to restore properties

RAYCHIN Manufacturing Excellence: Our specialized machining centers and controlled atmosphere heat treatment facilities are specifically configured for high-temperature superalloy fasteners, ensuring dimensional accuracy and optimal metallurgical properties in every Nimonic bolt, nut, and washer .

Part 3: Comprehensive Material Comparison

3.1 Direct Performance Comparison: Nimonic vs. Competing High-Temperature Alloys

3.2 High-Temperature Strength Retention Comparison

Key Insight: Nimonic alloys demonstrate superior strength retention compared to Inconel 718 above 1200°F (649°C), making them the preferred choice for sustained high-temperature service in turbine hot sections .

3.3 Corrosion Performance at Elevated Temperatures

Critical Distinction: Nimonic 91 was specifically developed with 27-30% chromium content to provide enhanced corrosion resistance in salty and sulfur-based environments, making it particularly suitable for marine applications and systems burning impure fuels .

3.4 Selection Decision Matrix

Choose Nimonic Fasteners When :

• Operating temperatures range from 1000-1600°F (538-870°C) – the sweet spot for γ'-strengthened superalloys

• Excellent creep resistance is required for long-term, sustained high-stress applications

• Oxidation resistance in high-velocity gas streams is critical

• Proven reliability in gas turbine applications is mandatory

• Good fabricability relative to other superalloys is important for complex fastener geometries

• Thermal cycling resistance is required for systems with frequent start-stop operation

Consider Alternatives When :

• Maximum corrosion resistance is the primary concern (consider higher chromium alloys or Hastelloy)

• Operating temperatures exceed 1600°F (870°C) continuously (consider Haynes 230 or oxide dispersion strengthened alloys)

• Room-temperature strength is the dominant requirement (Inconel 718 offers higher UTS/YS)

• Cost constraints are severe (A286 provides good high-temperature performance at lower cost)

• Extreme oxidation resistance >2000°F is required (Hastelloy X or Haynes 230 are superior)

Part 4: The RAYCHIN Engineering Advantage for Nimonic Fasteners

4.1 Specialized Manufacturing Capabilities

• Superalloy Machining Expertise: Decades of experience machining high-temperature nickel alloys with proprietary tooling geometries and optimized cutting parameters

• Precision Heat Treatment: Controlled atmosphere furnaces with exacting temperature uniformity (±15°F) for consistent γ' precipitation

• Advanced Thread Technology: Optimized thread forms for high-temperature applications, designed to accommodate thermal expansion and maintain clamp load

• Quality Verification: Comprehensive testing including elevated temperature mechanical testing, stress rupture validation, and metallurgical examination

4.2 Technical Support Services

• Material Selection Guidance: Helping identify the optimal Nimonic grade (75, 80A, 90, 91) for your specific temperature range and service environment

• Heat Treatment Optimization: Custom aging treatments to achieve specific performance requirements (strength vs. toughness balance)

• Failure Analysis: Metallurgical laboratory services to investigate high-temperature failures and recommend preventive solutions

• Application Engineering: Custom fastener designs for unique thermal challenges, including special head configurations, lengths, and thread forms

4.3 Certification & Compliance

• Material Standards: Full compliance with BS HR2, BS HR202, ASTM B637, and customer specifications

• Testing Capabilities: Stress rupture, creep, thermal fatigue, and oxidation testing with full documentation

• Traceability: Complete documentation from melt to finished fastener, including material certifications and heat treatment records

• Industry Approvals: Aerospace (AS9100D), power generation, and defense quality systems

Conclusion: Engineering Thermal Excellence with Nimonic Fasteners

Nimonic fasteners represent a class of engineered solutions specifically optimized for the demanding thermal environments of modern aerospace, power generation, and industrial processing. With their exceptional balance of high-temperature strength, creep resistance, and oxidation resistance, they enable performance and reliability where conventional materials cannot survive.

From the Nimonic 80A that secures critical turbine components at 1500°F, to the Nimonic 90 that pushes the envelope to 1700°F, and the Nimonic 91 that withstands aggressive sulfur-bearing environments, this alloy family provides engineers with proven, reliable solutions for the hottest zones of modern machinery.

The RAYCHIN Commitment: We deliver more than just precision Nimonic fasteners—we provide thermal engineering solutions backed by metallurgical expertise and manufacturing excellence. Our comprehensive approach ensures that every Nimonic bolt, nut, screw, and washer performs reliably in your most demanding high-temperature applications, from prototype validation through fleet-wide deployment.

Next Steps for Your Project:

1. Thermal Analysis Consultation: Contact our engineering team for temperature-specific recommendations based on your exact service conditions

2. Grade Selection: Discuss whether Nimonic 80A, 90, or 91 best meets your performance requirements and budget

3. Prototype Development: Request custom samples for testing and validation in your specific application

4. Production Partnership: Leverage our manufacturing expertise for reliable supply of certified Nimonic fasteners

Contact RAYCHIN today to discuss how certified Nimonic fasteners can enhance the performance, reliability, and efficiency of your aerospace, power generation, or industrial applications. Request our Nimonic Fastener Technical Guide or schedule a consultation with our thermal engineering specialists.
