Hastelloy Fasteners - Bolts, Screws & Nuts

Hastelloy Fasteners - Bolts, Screws & Nuts, material incoluding: HASTELLOY C276 (2.4819), HASTELLOY B2 (2.4617), HASTELLOY B3 (2.4600), HASTELLOY C22 (2.4602), HASTELLOY C2000 (2.4675), HASTELLOY X (2.4665). Hastelloy fasteners are resistant to some of the most severe chemicals, this very material often finds use in oil & gas sour gas service, chemical processing, power industries flue gas desulfurization systems, off-shore oil and down hole environments, pulp & paper bleaching and digesters, as well as other industrial facets where corrosion is an issue.


Hastelloy fasteners is often used for applications involving:


  • Sulfuric and hydrochloric acid (H2SO4 & HCl)

  • Sour gas

  • Chlorides, wet chloride gas and chlorine solutions

  • Solvents

  • Formic and acetic acidsGeneral Acid Corrosion Comparison

  • Acetic anhydride

  • Hypochlorites

  • Phosphoric acid


Hastelloy Fastener Styles


Hastelloy Screws

12 Point Screws

Button Head Cap Screws

Flat Head Screws

Hex Head Cap Screws

Pan Head Screws

Security Screws

Set Screws

Socket Head Cap Screws

Vented Screws

•  DIN 603 / ISO 8677

•  DIN 912 / ISO 4762

•  DIN 913 / ISO 4026

•  DIN 914 / ISO 4027

•  DIN 915 / ISO 4028

•  DIN 916 / ISO 4029

•  DIN 921

•  DIN 931 / ISO 4014

•  DIN 933 / ISO 4017

•  DIN 961 / ISO 8676

•  DIN 965 / ISO 7046

•  DIN 966 / ISO 7047

•  DIN 7991 / ISO 10642

•  DIN 7380 / ISO 7380

•  DIN 84 / ISO 1207

•  DIN 85 / ISO 1580

•  DIN 34822

•  DIN 34821

•  DIN 7504 / ISO 15480

•  DIN 7984

•  DIN 963 / ISO 2009

Hastelloy Bolts

Hex Head Bolts

Shoulder Bolts

Wedge Anchor Bolts

•  DIN 931
•  DIN 933
•  ISO 4014
•  ISO 4017
•  ISO 7370
Hastelloy Nuts

Hex Nuts

Lock Nuts

•  DIN 439 / ISO 4035
•  DIN 934 / ISO 4032
•  DIN 985 / ISO 7040
•  DIN 986
•  DIN 980 / ISO 7042 / ISO 19513
•  DIN 6923 / ISO 4161
Hastelloy Studs/Rod

Studs

Threaded Rod

Weld Studs

•  DIN 975
•  DIN 976
Hastelloy Washers

Flat Washers

Lock Washers

•  DIN 125 / ISO 7089 / ISO 7090
•  DIN 126 / ISO 7091
•  DIN 127 / ISO 7090
•  DIN 9021 / ISO 7093
Hastelloy Hose ClampsMedium Duty Hose Clamps



HASTELLOY C276 (2.4819)
Hastelloy C276 alloy, UNS N10276, 2.4819, is the most widely used and versatile corrosion resistant nickel alloy. Hastelloy fasteners offer very good resistance to strong reducing and moderately oxidizing corrosive acids, as well excellent stress corrosion cracking resistance and resistance to localized attack. Outstanding corrosion resistance to various concentrated, hot acids and reducing environments, C276 fasteners are readily used in hot sulfuric and hydrochloric acid applications. Hastelloy's resistance to sulfuric acid makes it a common choice for protection from hydrogen sulfide (H2S), more commonly known as sour gas.In addition, Hastelloy C276 is one of the few grades resistant to wet chloride gas and chlorine dioxide. The Hastelloy C276 grade also offers excellent mechanical properties at elevated temperatures up to 1500°F / 815°C, making it ideal for hot corrosive environments. Because of these properties, Hastelloy C276 fasteners have resistance to a wide range of acids, chlorides, and strong halides which is why they are often utilized in the chemical processing and the oil & gas industries. The only factor that is critical to point out when dealing with very strong oxidizing environments like nitric acid is that Hastelloy C276 fasteners can be attacked as it has a low chromium content compared to other grades like Hastelloy C22.

HASTELLOY C276 SPECIFICATIONS: N10276, ASTM B574, ASME SB574, Werkstoff 2.4819, ASTM G28-A/B, EN 10204-3.1, ASME B18.2.2, ASTM B619, ASME SB619, ASTM B366, ASME SB366, WPHC276, ASME B16.11, ASTM B564/ASME SB564, COLD DRAWN, HOT FINISHED, ASTM B575, ASME SB575, COLD ROLLED, HOT ROLLED, ASME B16.9, ASME B16.5, ASTM B462, ASME SB462, ASTM F467 (Nuts), ASTM F468 (screws, bolts, studs)


Hastelloy C276NiMoCrFeWCoMnVSiPSC
Min%BAL15.014.54.03.0-------
Max%-17.016.57.04.52.501.000.350.080/040.030.01




HASTELLOY B2 (2.4617)
Hastelloy B2 alloy, UNS N10665, offers excellent resistance to hydrochloric acid in all temperatures and concentrations, yet has poor corrosion resistance to oxidizing chemicals and in the presence of ferric or cupric salts. In addition, Hastelloy B2 has excellent resistance to pitting, stress corrosion cracking, and to knife-line and heat-affected zone attack. However B2 has little chromium, and it should NOT be used with oxidizing media in the presence of salts.  Like other Hastelloy alloys, B2 fasteners can be used in the as-welded condition because they resist the formation of grain-boundary carbide precipitates in the weld heat-affected zone. It is recommended that B2 fasteners not be utilized between 1000° F and 1600° F because of a reduction in the ductility.

HASTELLOY B2 SPECIFICATIONS: N10665, ASTM B619, Werkstoff 2.4617, ASME SB619, ANNEALED, B/SB619 CLASS I OR II, X-RAY PER ASME SECTION VIII DIVISION 1 UW-51, MERCURY FREE, EN 10204-3.1, ASTM B366, ASME SB366, WPHB2-S, ASME B16.11, ASTM B335, ASME SB335, ASME B16.3, MSS SP-83, ASTM B564/ASME SB564, COLD DRAWN, HOT FINISHED, ASTM B333, ASME SB333, SHEET IS COLD ROLLED, HOT ROLLED, ENIMO-7, AWS A-5.11, ASME SFA-5.11


Hastelloy B2NiMoFeCrCoMnPSiSC
Nominal%BAL26-302 Max1 Max1 Max1 Max0.0400.100.030 Max0.020 Max




HASTELLOY B3 (2.4600)
Hastelloy B3 alloy, UNS N10675, is specifically designed to deal with very aggressive hydrochloric acid (HCl), hyrdrobromic acid (HBr) and sulfuric acids (H2SO4) as well as acetic, formic and phosphoric acids. Hastelloy B3 fasteners deliver the same excellent resistance to hydrochloric acid and other strongly reducing chemicals as other B-alloys (including B2) but with significantly enhanced thermal stability and improved ease of fabrication. However B3 has little chromium, and it should NOT be used with oxidizing media and is not recommended for use in the presence of ferric or cupric salts which can cause rapid corrosion failure.

HASTELLOY B3 SPECIFICATIONS: N10675, ASTM B366, ASME SB366, Werkstoff 2.4600, WPHB3-W, ASME B16.9, ANNEALED, MERCURY FREE, EN 10204-3.1 (W/O X-RAY), ASTM B335, ASME SB335, ASTM B564, ASME SB564, DIMENSIONS PER ASME B16.5, ASTM B462, ASME SB462, ASME B16.5, COLD DRAWN, HOT FINISHED, ASTM B626, ASME SB626, B/SB626 CLASS III, ASTM B333, ASME SB333, COLD ROLLED, HOT ROLLED


Hastelloy B3NiMoFeCrCoMnPSiSCW
Nominal %65 Min28.51.51.53 Max1 Max0.0400.100.030 Max0.020 Max0.020 Max




HASTELLOY C22 (2.4602)
Hastelloy C22 alloy, UNS N06022, has better overall corrosion resistance in oxidizing corrosives than C-276 and Inconel 625 alloys due to the higher chromium content. More specifically, C22 fasteners provides better protection when used in certain saturated wet chlorine environments. In addition, its high chromium content provides C22 fasteners much better resistance to oxidizing media that C276. This provides it exceptional resistance to chloride-induced pitting although, in most cases because of its availability, C-276 fasteners are a more cost-effective option. Hastelloy C22 fasteners also offer outstanding resistance to pitting and crevice corrosion, as well as stress corrosion cracking. Use of C22 fasteners should be limited to temperatures below 1250° F. This alloy has limited availability and can be made into fastener in larger diameters only (1/2" and greater in size).

HASTELLOY C22 SPECIFICATIONS: SB 575/B 575, SB 574/B 574, SB 366/B 366 SB 462/B 462, SB 564/B 564 SB 462/B 462, Werkstoff 2.4602, 17744 No. 2.4602 NiCr21Mo14W, NACE MR0175 ISO 15156


Hastelloy C22NiMoCrFeWCoMnCuVSiC
Nominal %56 BAL13.022.03.03 Max2.5 Max0.5 Max0.5 Max0.35 Max0.08 Max0.01 Max




HASTELLOY C2000 (2.4675)
Hastelloy C2000 alloy, UNS N06200, is a corrosion resistant alloy with excellent resistance to uniform corrosion in oxidizing or reducing environments. Hastelloy C2000 fasteners combine the outstanding resistance to oxidizing media of C276 with superior resistance to non-oxidizing environments, making it a unique alloy for protecting chemical process equipment that has a range of conditions. C2000 fasteners are designed to offer greater versatility compared to the other Hastelloy alloys. The addition of copper provides C2000 fasteners enhanced temperature capability in sulfuric acid, hydrofluoric acid, and dilute hydrochloric acid. Due to its high chromium content protects process streams contaminated with ferric ions. In addition, C2000 fasteners have excellent resistance to stress corrosion cracking and superior resistance to localized corrosion as compared to C-276 alloy.

HASTELLOY C2000 SPECIFICATIONS: SB 575/B 575, SB 574/B 574, SB 366/B 366 SB 462/B 462,SB 564/B 564 SB 462/B 462, Werkstoff 2.4675, NACE MR0175 ISO 15156


Hastelloy C2000NiMoCrFeCoCuMnAlSiC
Nominal %59 BAIL16.023.03 Max2 Max1.60.5 Max0.5 Max0080.01 Max




HASTELLOY X (2.4665)
Alloy X, UNS N06002, is most known for its exceptional combination of high temperature oxidation resistance up to 2000°C and high temperature strength. Being stable, strong and ductile at high temperatures are its most notable characteristics which is often utilized in gas turbine components and furnace components.

HASTELLOY X SPECIFICATIONS: AMS 5536, AMS 5754, AMS 5798, ASME SB 435, ASME SB 572, ASME Sect. IX P No. 43, ASME Section IX P No. 43, ASME SFA 5.14, ASTM B 435, ASTM B 572, EN 2.4665, GE B50A436, GE B50T83, GE B50TF24, PDS 1038 (X-low), PDS 15102QFC, UNS N06002, Werkstoff 2.4665

Hastelloy XNiMoCrFeCoCuMnAlSiWTiPSBC
Min %BAL8.020.517.00.5----0.2----0.05
Max %
10.023.020.02.500.051.00.501.001.00.010.040.030.010.15




Hastelloy Screws

12 Point Screws

Hastelloy 12 point screws allow for higher torque to be applied than a socket head cap screw or head head bolt, however they are be less economical due to the complex head design. Available in 1/4" or larger sizes.•  IFI-115
•  MIL SPEC
•  DIN 34822
•  DIN 34821

Button Head Cap Screws

Hastelloy button head screws offer a wide clamping area and low profile. They are best for fastening material that is too thin to counter bore.• ASME B18.3
• ASME 18.3.4M
• DIN 7380 / ISO 7380

Flat Head Screws

Hastelloy flat head screws are most commonly offered in an 82° countersink angle, but can be customized to other angles from 60° -120° and are designed to be flush with the surface.  Available in slotted and socket drivers. Phillips, 6-lobe, torx and tamperproof drivers in Hastelloy flat head screws can be made require special manufacturing.•  ASME B18.3
•  ASME B18.3.6
•  DIN 963 / ISO 2009
•  DIN 965 / ISO 7046
•  DIN 7991 / ISO 10642

Hex Head Cap Screws

Hastelloy hex head cap screws offer the added washer face to the bolt head which is lacking on a hex bolt and tighter dimensional tolerances. Ideal for a high clamping force applications with ease of access. Generally availabe in #2 - 1/2" sizes and metric sizes.• ASME B18.6.3
• DIN 931 / ISO 4014
• DIN 933 / ISO 4017
• DIN 961 / ISO 8676

Pan Head Screws

Hastelloy pan head screws offer a rounded top are best used for small diameter faster needs. Offered in slotted and they are ideal for low torque applications.• ASME B18.6.3
• DIN 7985
• DIN 921
• DIN 85 / ISO 1580
• DIN 84 / ISO 1207
 (cheese head)
• DIN 966 / ISO 7047
 (raised counter sunk)

Security Screws

Unique driver designs offer these Hastelloy screws resistance to unwanted tampering or removal due to the fact that they cannot be removed using an ordinary driver. Hastelloy security screws are available in several different drive styles, as well as custom per print.

Set Screws

Hastelloy set screws are available in cup, cone, flat, dog and half-dog points. Set screws have no head and are equiped with a socket or slotted driver at one end.• ASME B18.3
• DIN 913 / ISO 4026
• DIN 914 / ISO 4027
• DIN 915 / ISO 4028
• DIN 916 / ISO 4029

Socket Head Cap Screws

Hastelloy socket head cap screws are ideal for limited access situations where there is little clearance around the screws. They offer a safe, reliable and economic solution.• ASMET B18.3
• DIN 912 / ISO 4762
• DIN 7984

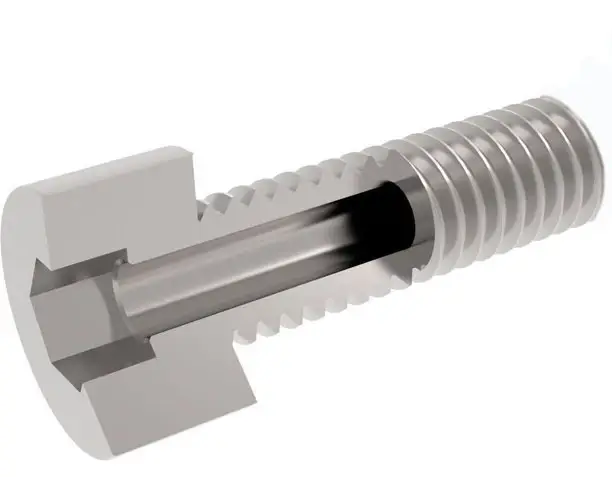

Vented Screws

Hastelloy vented screws are best for vacuum environments because the hole drilled through its axis (from head through threads) allow gases and other contaminents to vent. Hastelloy vented screws are available in any style.


Hastelloy Bolts

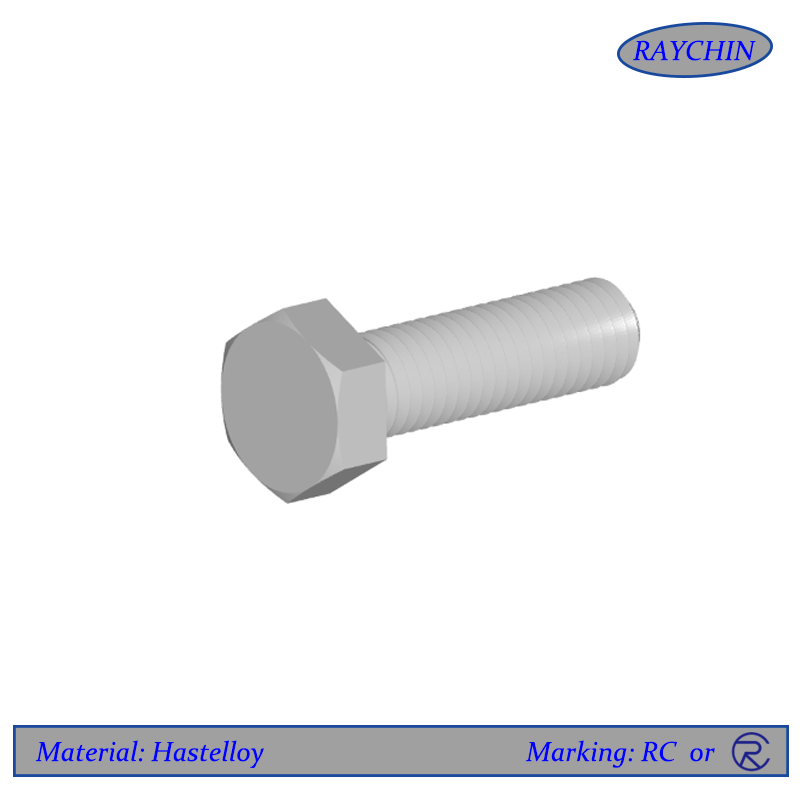

Hex Head Bolts

Hastelloy hex bolts are similar to hex head cap screws but without the added washer face. They are ideal for high clamping force applications with ease access.• ASME B18.2.1
• DIN 931 / ISO 4014
• DIN 933 / ISO 4017

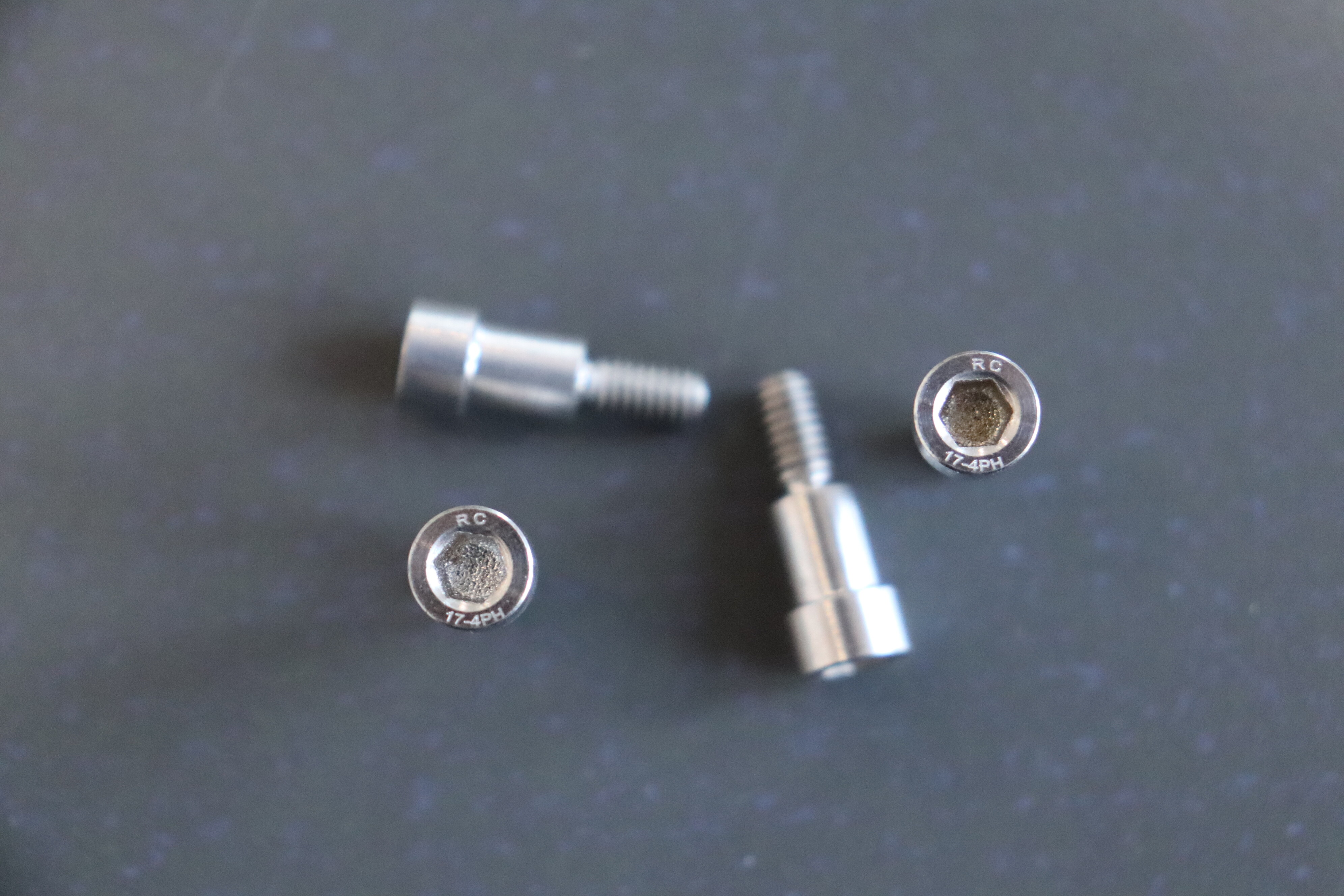

Shoulder Bolts

Hastelloy shoulder bolts are made up of a head, shoulder and threaded segment. The smooth shoulder section allows for rotating parts. Typically available with socket drivers.• ASME
• DIN 7379 / ISO 7379
• ISO 7370

Wedge Anchor Bolts

Hastelloy wedge anchor bolts offer a safe secure fastening solution for attaching equipment and other materials to concrete in corrosive environments.


Hastelloy Nuts

Hex Nuts

Hastelloy hex nuts are available in a variety of styles including finished hex nuts, jam nuts and heavy hex nuts.• ASME B18.16.3
• ASME B18.2.2
• DIN 439 / ISO 4035
• DIN 934 / ISO 4032
• DIN 986

Lock Nuts

Hastelloy lock nuts are available in all metal and polymer insert styles. All-metal lock provide even load distribution and can be used at high temperatures. Polymer  insert styles are more economical and are best for temperatures under than 350°F.• ASME B18.16.3M
• DIN 980 / ISO 7042 /
  ISO 19513
• DIN 6923 / ISO 4161
• DIN 985 / ISO 10511 /
 ISO 7040


Hastelloy Studs & Threaded Rod

Studs

Hastelloy studs are fully threaded or partially threaded and made to custom lengths.• ASME B18.31.2
• DIN 976

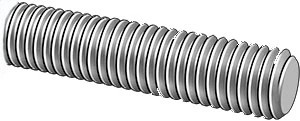

Threaded Rod

Hastelloy threaded rod or all thread are available in lengths greater than 1 foot. Minimum order quantity is a total of 6 feet of length.• ASME B1.1
• DIN 975

Weld Studs

Hastelloy weld studs are available in both arc or capacitor discharge (CD) styles. Weld studs provide an extremely secure fastening solution when one side of the stud needs to be permanently fix to a part and the other side with the threads accessible.


Hastelloy Washers

Flat Washers

Hastelloy washers are most commonly offered in SAE sizes, but also availabe in USS, oversized and custom sizes upon request.• ASME 18.21.1
• SAE / USS
• DIN 125 / ISO 7089 /
 ISO 7090
• DIN 126 / ISO 7091

Lock Washers

Hastelloy lock washers are offered as split lock washers. Belleville spring lock washers can also be made upon request.• ASME B18.21.1
• DIN 127 / ISO 7090
• DIN 6796 /  ISO 10690
