Precision Torx Screws in Special Alloys | RAYCHIN Fastening Solution Expert

RAYCHIN manufactures high-performance Torx screws in 25+ exotic alloys: 17-4 PH, Inconel 718, Titanium, Hastelloy, MP35N, A286, Monel & more. Torx drive, Torx Plus, and tamper-resistant Torx designs. ASME B18.3, ISO 10664 compliant. Custom OEM Torx fasteners for aerospace, automotive, electronics & medical applications. Global supplier.

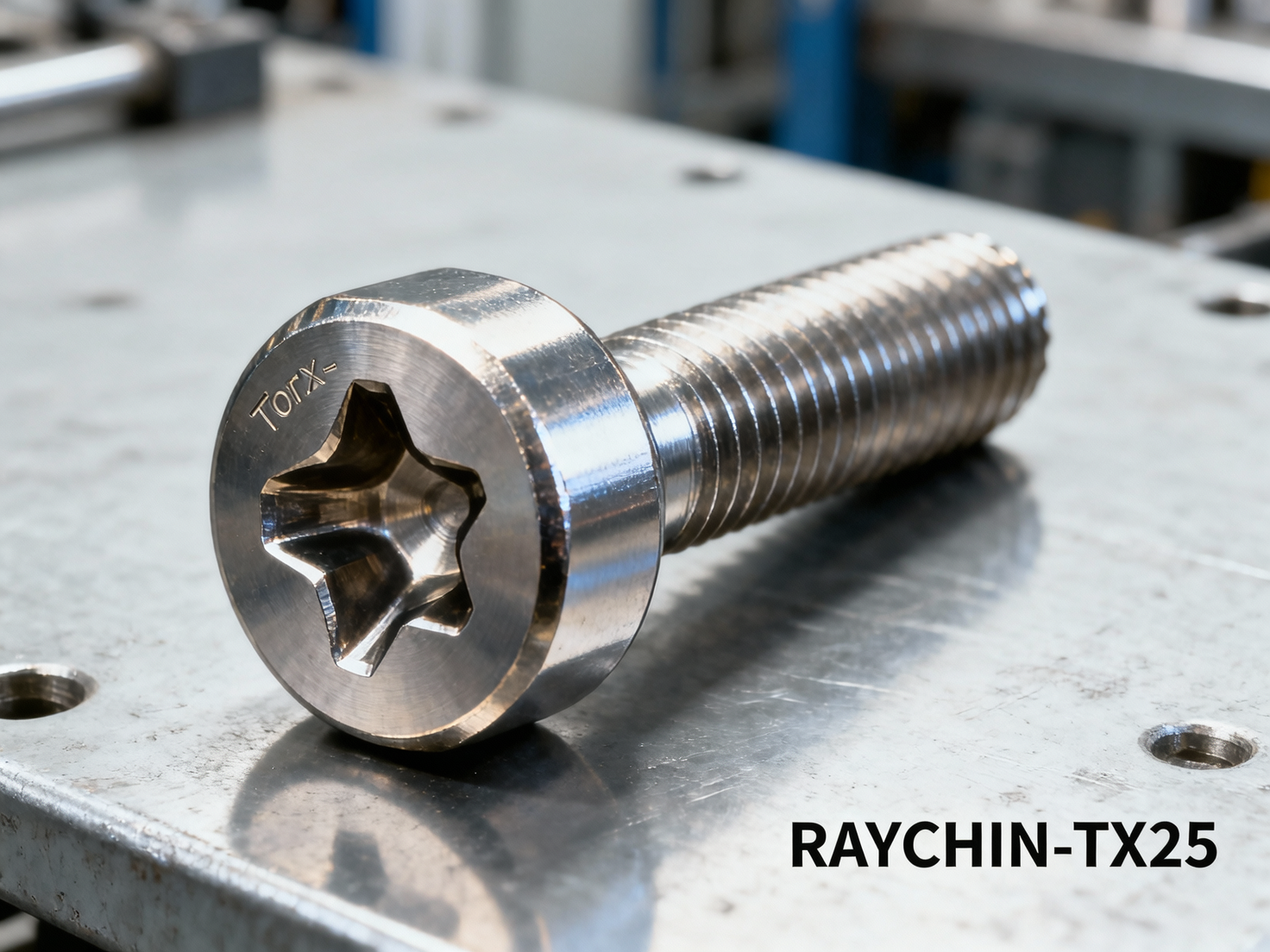

Torx Screws: Superior Torque Transmission and Extended Tool Life

RAYCHIN is a premier manufacturer of high-performance Torx screws and a recognized special alloy fastening solution expert. Torx drive screws, characterized by their six-point star-shaped recess, represent a significant advancement in fastener drive technology. The Torx design provides superior torque transmission, eliminates cam-out, extends tool life, and allows for higher clamping forces compared to traditional Phillips or slotted drives. These screws are essential in aerospace, automotive, electronics, medical devices, industrial machinery, and consumer products where reliable fastening, precise torque control, and assembly efficiency are critical.

The Torx drive system distributes stresses over a larger contact area, reducing wear on both the fastener and the driving tool. This design enables higher torque transmission, reduces operator fatigue, and provides better access in confined spaces. Our Torx screws are available in standard Torx, Torx Plus®, and tamper-resistant configurations, engineered from over 25 advanced alloys to meet the most demanding application requirements.

We engineer these precision components from over 25 advanced alloys, ensuring reliable performance in corrosive environments, high-temperature applications, cryogenic conditions, vacuum systems, high-wear assemblies, and biocompatible medical applications. Our Torx screws are manufactured to exacting ASME, DIN, ISO, and IFI standards, with complete material certification, full traceability, and engineering support for custom applications.

Torx Screw Classifications

1. Torx Drive System Standards

2. Torx Screw Head Styles

3. Torx Size Designations

4. Special Application Torx Screws

• Torx Screws with Nylon Patch: Self-locking for vibration-prone applications

• Torx Screws with Captive Washer: Integrated washer for enhanced load distribution

• Torx Screws with Shoulder: Precision shoulder for alignment applications

• Torx Screws with Sealing Ring: For environmental protection

• Torx Screws with Reduced Head: For clearance-limited assemblies

• Torx Screws with Extended Thread: For adjustable applications

• Torx Screws with Dog Point: For locating and positioning

• Torx Screws with Vent Holes: For vacuum and outgassing-sensitive applications

• Micro Torx Screws: For miniature electronics and precision instruments

• Custom Torx Screws: Manufactured to your OEM specifications with unique head dimensions, drive configurations, thread forms, and material grades

Full Material Portfolio with International Standard Designations

As a special alloy fastening solution expert, RAYCHIN produces Torx screws in the following comprehensive range of high-performance materials:

1. Precipitation-Hardening Stainless Steels

17-4 PH (UNS S17400): ASTM A564 Type 630, AMS 5643, DIN 1.4542 — Available in H900, H1025, H1150, H1150+ tempers. Exceptional combination of high strength (up to 180 ksi) and good corrosion resistance. Excellent for aerospace components, medical devices, high-strength electronics, defense hardware, and automotive applications. *Keywords: 17-4 PH Torx screws, 17-4 PH Torx drive fasteners.*

PH 13-8 Mo (UNS S13800): ASTM A564 Type 625, AMS 5629 — Superior strength (up to 220 ksi), exceptional toughness, and outstanding stress corrosion cracking resistance. Available in H950, H1000, H1050 tempers. Recommended for aerospace structural fasteners, defense applications, medical implants, and critical assemblies. *Keywords: PH 13-8 Mo Torx screws.*

2. Nickel-Based Superalloys

Inconel® Alloys:

• Inconel 600 (UNS N06600): ASTM B166, AMS 5665 — General purpose high-temperature alloy with excellent oxidation and corrosion resistance to 2000°F. Good resistance to chloride stress corrosion cracking. Ideal for high-temperature fasteners, heat treat furnaces, chemical processing equipment, and nuclear applications. Keywords: Inconel 600 Torx screws.

• Inconel 625 (UNS N06625): ASTM B446, AMS 5666 — Exceptional resistance to pitting, crevice corrosion, and high-temperature oxidation. Outstanding fatigue strength and resistance to chloride ions. High strength from cryogenic to 1800°F. Recommended for marine fasteners, offshore platform hardware, chemical tank fittings, seawater immersion applications, and aerospace components. Keywords: Inconel 625 Torx screws.

• Inconel 718 (UNS N07718): AMS 5663, ASTM B637 — High-strength alloy with exceptional creep rupture strength up to 1300°F. Excellent cryogenic properties and weldability. Good fatigue and oxidation resistance. Ideal for aerospace engine fasteners, high-temperature electronics enclosures, racing applications, downhole tools, and high-performance automotive. Keywords: Inconel 718 Torx screws, Inconel 718 Torx drive fasteners.

Monel® Alloys:

• Monel 400 (UNS N04400): ASTM B164, AMS 4675 — Superior resistance to seawater, steam, and caustic environments. Excellent corrosion resistance in reducing conditions. High strength over a wide temperature range. Recommended for marine fasteners, naval vessel hardware, chemical processing equipment, offshore installations, and architectural marine applications. Keywords: Monel 400 Torx screws.

• Monel K500 (UNS N05500): ASTM B865, AMS 4676 — Age-hardenable version offering increased strength and hardness while maintaining excellent corrosion resistance. Good spring properties and wear resistance. Ideal for pump components, marine fasteners, oil & gas applications, high-strength marine hardware, and valve components. Keywords: Monel K500 Torx screws.

Hastelloy® Alloys:

• Hastelloy C276 (UNS N10276): ASTM B574, AMS 5754 — Excellent resistance to a wide range of corrosive chemicals including strong oxidizers and reducing agents. Outstanding resistance to pitting and stress corrosion cracking. Recommended for chemical processing fasteners, pharmaceutical apparatus, pollution control systems, flue gas desulfurization, and nuclear waste processing fixtures. Keywords: Hastelloy C276 Torx screws.

• Hastelloy C22 (UNS N06022): ASTM B574, AMS 5755 — Superior resistance to oxidizing media and localized corrosion. Excellent in mixed acid environments and chloride-containing media. Ideal for bleaching systems, pickling equipment, nuclear waste processing, aggressive chemical service, and pharmaceutical reactors. Keywords: Hastelloy C22 Torx screws.

• Hastelloy B2 (UNS N10665): ASTM B335 — Exceptional resistance to reducing acids like hydrochloric and sulfuric at all concentrations and temperatures. Outstanding resistance to hydrogen chloride gas. Recommended for hydrochloric acid processing, chemical reactors, evaporators, acid concentration plants, and chemical storage fixtures. Keywords: Hastelloy B2 Torx screws.

Incoloy® Alloys:

• Incoloy 825 (UNS N08825): ASTM B423, AMS 5870 — Excellent resistance to reducing and oxidizing acids, stress corrosion cracking, and intergranular attack. Good resistance to sulfuric and phosphoric acids. Ideal for pickling tank hardware, pollution control equipment, nuclear fuel reprocessing, chemical storage vessels, and food processing equipment. Keywords: Incoloy 825 Torx screws.

• Incoloy 925 (UNS N09925): ASTM B805 — High-strength, age-hardenable alloy with excellent resistance to sour gas environments. Good corrosion resistance and mechanical properties. Recommended for downhole instrumentation, wellhead equipment, subsea enclosures, oil & gas production, and high-temperature applications. Keywords: Incoloy 925 Torx screws.

High-Temperature Alloys:

• Waspaloy (UNS N07001): AMS 5708, AMS 5824 — Precipitation-hardenable alloy with exceptional high-temperature strength to 1600°F. Excellent oxidation and creep resistance. Good fatigue strength. Ideal for gas turbine enclosures, jet engine components, high-temperature instrumentation, aerospace fasteners, and racing applications. Keywords: Waspaloy Torx screws.

• Nimonic® Series:

  • Nimonic 80A (UNS N07080): BS HR 501, AMS 5842 — Creep and rupture strength up to 1500°F. Excellent oxidation resistance and good corrosion resistance. Recommended for exhaust system hardware, heat treatment fixtures, turbocharger components, gas turbine parts, and high-temperature springs. Keywords: Nimonic 80A Torx screws.

  • Nimonic 90 (UNS N07090): BS HR 502, AMS 5796 — Enhanced high-temperature properties with superior oxidation resistance. Good creep strength and fatigue resistance. Ideal for gas turbine blades, high-temperature springs, aerospace engine hardware, high-performance racing components, and exhaust valves. Keywords: Nimonic 90 Torx screws.

3. Duplex & Super Duplex Stainless Steels

Duplex 2205 (UNS S32205/S31803): ASTM A193 B8S, EN 1.4462 — Twice the yield strength of 316 stainless with excellent chloride stress corrosion resistance. Outstanding pitting resistance (PREN 34-36). Good fatigue strength. Recommended for offshore platform fasteners, desalination plant hardware, marine deck equipment, chemical tankers, and subsea applications. Keywords: Duplex 2205 Torx screws.

Super Duplex Alloys:

• Alloy 926 (UNS N08926): ASTM B691, EN 1.4529 — PREN >40 for severe chloride and seawater environments. Excellent resistance to crevice corrosion and pitting. Good mechanical properties. Ideal for subsea enclosures, coastal infrastructure, chemical tanker hardware, desalination plants, and marine instrumentation. Keywords: Alloy 926 Torx screws.

• AL-6XN® (UNS N08367): ASTM B691, AMS 5875 — Superior pitting and crevice corrosion resistance in highly chlorinated atmospheres. Outstanding resistance to seawater and chloride solutions. Recommended for flue gas desulfurization, seawater cooling systems, pharmaceutical equipment, food processing, and marine hardware. *Keywords: AL-6XN Torx screws.*

4. Titanium Alloys

Grade 2 Titanium (UNS R50400): ASTM B348, AMS 4921 — Excellent corrosion resistance with good formability and weldability. Outstanding seawater resistance and biocompatibility. Good strength-to-weight ratio. Ideal for marine fasteners, architectural hardware, chemical processing equipment, medical devices, and food processing. Keywords: Titanium Grade 2 Torx screws.

Grade 5 Titanium (Ti-6Al-4V) (UNS R56400): AMS 4928, ASTM F467 — High strength-to-weight ratio (120 ksi typical), excellent corrosion resistance, and biocompatibility. Available in annealed and aged conditions. Excellent fatigue properties. Recommended for aerospace fasteners, medical devices, surgical instruments, high-performance automotive components, racing applications, and sports equipment. *Keywords: Titanium Grade 5 Torx screws, Ti-6Al-4V Torx drive fasteners.*

Grade 7 Titanium (UNS R52400): ASTM B348 — Superior corrosion resistance with palladium addition. Excellent in reducing and oxidizing acid environments. Ideal for chemical processing, desalination plants, pollution control equipment, aggressive corrosion service, and marine applications. Keywords: Titanium Grade 7 Torx screws.

Grade 23 Titanium (Ti-6Al-4V ELI) (UNS R56401): ASTM F136, ASTM F1472 — Extra-low interstitial version of Grade 5 with enhanced toughness and ductility. Superior biocompatibility. Recommended for medical implants, surgical instruments, dental devices, and biocompatible applications. Keywords: Titanium Grade 23 Torx screws.

5. Refractory & Exotic Metals

Tantalum (UNS R05200): ASTM B365, AMS 7845 — Ultimate corrosion resistance in aggressive acid environments. Completely inert to most chemicals. Excellent biocompatibility. Ideal for chemical reactor hardware, pharmaceutical processing equipment, high-purity applications, medical implants, and laboratory equipment. Keywords: Tantalum Torx screws.

Zirconium 702 (UNS R60702): ASTM B550, ASME SB550 — Excellent resistance to sulfuric, hydrochloric, and nitric acids. Outstanding in organic acids and alkaline media. Ideal for nuclear fuel processing, chemical reactors, heat exchanger hardware, aggressive chemical service, and reprocessing equipment. Keywords: Zirconium Torx screws.

Zirconium 705 (UNS R60705): ASTM B550 — Niobium-stabilized version with enhanced strength and formability. Good corrosion resistance. Recommended for chemical processing, nuclear applications, and high-temperature service. Keywords: Zirconium 705 Torx screws.

Molybdenum (UNS R03600): ASTM B387 — High temperature strength and stiffness for extreme thermal applications to 3000°F. Excellent thermal conductivity and low thermal expansion. Ideal for high-temperature furnaces, semiconductor processing equipment, glass manufacturing, high-temperature fixtures, and electronics. Keywords: Molybdenum Torx screws.

TZM Molybdenum (Titanium-Zirconium-Molybdenum): ASTM B386 — Enhanced high-temperature strength and recrystallization resistance. Superior to pure molybdenum. Recommended for high-temperature applications, semiconductor, and aerospace. Keywords: TZM Torx screws.

Tungsten (UNS R07005): ASTM B777 — Highest density and melting point for specialized radiation shielding and high-temperature applications. Exceptional wear resistance and thermal stability. Ideal for medical imaging equipment, aerospace counterweights, high-temperature fixtures, radiation shielding, and balancing applications. Keywords: Tungsten Torx screws.

6. Specialty Stainless Steels & Nickel Alloys

Nitronic® Alloys:

• Nitronic 50 (XM-19) (UNS S20910): ASTM A193 B8N — High strength (twice the yield strength of 316 stainless), non-magnetic, excellent corrosion resistance. Good cryogenic properties. Recommended for medical imaging equipment, marine instrumentation, high-strength electronic enclosures, aerospace components, and subsea applications. Keywords: Nitronic 50 Torx screws.

• Nitronic 60 (UNS S21800): ASTM A193 B8N — Superior wear and galling resistance with good corrosion properties. Excellent for frequently accessed fasteners and moving parts. Self-lubricating characteristics. Ideal for valve components, pump hardware, adjustable mechanisms, high-wear applications, and instrumentation. Keywords: Nitronic 60 Torx screws.

High-Performance Stainless:

• 254 SMO (UNS S31254): EN 1.4547, ASTM A479 — Excellent seawater and chloride resistance with high PREN value (>42). Outstanding pitting and crevice corrosion resistance. Recommended for offshore electronics, desalination hardware, coastal architectural fasteners, marine applications, and chemical processing. Keywords: 254 SMO Torx screws.

• 310 Stainless Steel (UNS S31000): ASTM A276, AISI 310 — Outstanding high-temperature oxidation resistance up to 2000°F. Excellent in cyclic temperature conditions. Good carburization resistance. Ideal for furnace hardware, heat treat fixtures, exhaust system components, high-temperature sensors, and thermal processing. Keywords: 310SS Torx screws.

• 316/316L Stainless Steel (UNS S31600/S31603): ASTM A276, ASTM A193 — Excellent corrosion resistance in marine and chemical environments. Good mechanical properties. Available in low-carbon version for improved weldability. Recommended for general industrial applications, marine hardware, medical devices, food processing, and pharmaceutical equipment. Keywords: 316L Torx screws, 316SS Torx drive fasteners.

• Alloy 20 (Carpenter 20) (UNS N08020): ASTM B473 — Superior resistance to sulfuric acid and chloride stress corrosion. Excellent in mixed acid environments. Recommended for chemical processing equipment, pharmaceutical reactors, food processing hardware, acid handling systems, and pickling equipment. Keywords: Alloy 20 Torx screws.

• Alloy 330 (UNS N08330): ASTM B536 — Excellent carburization and oxidation resistance at elevated temperatures. Good resistance to thermal fatigue. Ideal for industrial furnaces, heat treating equipment, petrochemical processing, high-temperature fixtures, and thermal cycling applications. Keywords: Alloy 330 Torx screws.

7. Ultra-High-Strength Cobalt Alloys

MP35N (UNS R30035): AMS 5844, ASTM F562 — Ultimate tensile strength exceeding 300 ksi with exceptional toughness and corrosion resistance. Non-magnetic. Excellent fatigue strength and biocompatibility. Recommended for aerospace actuators, medical implants, downhole instrumentation, high-security fasteners, marine applications, and racing components. Keywords: MP35N Torx screws.

MP159 (AMS 5846): Advanced cobalt-nickel alloy offering high strength and creep resistance at elevated temperatures. Superior to MP35N in high-temperature applications. Excellent fatigue and oxidation resistance. Ideal for gas turbine hardware, aerospace engine components, high-performance racing fasteners, critical high-temperature assemblies, and defense applications. Keywords: MP159 Torx screws.

Elgiloy® (UNS R30003): AMS 5833 — Non-magnetic, high-strength cobalt alloy with excellent corrosion resistance and fatigue properties. Good spring characteristics. Recommended for medical devices, aerospace components, spring applications, and instrumentation. Keywords: Elgiloy Torx screws.

8. High-Strength Aluminum & Iron-Based Alloys

Aluminum 2024 (UNS A92024): ASTM B211, AMS 4120 — High-strength aluminum alloy with good fatigue resistance. Available in T3, T4, T8 tempers. Recommended for aerospace components, defense hardware, and high-performance applications. Keywords: Aluminum 2024 Torx screws.

Aluminum 6061 (UNS A96061): ASTM B211, AMS 4117 — Versatile, heat-treatable aluminum alloy with good corrosion resistance and weldability. Available in T6 temper. Ideal for general industrial applications, electronics enclosures, marine hardware, and architectural components. Keywords: Aluminum 6061 Torx screws.

Aluminum 7075 (UNS A97075): AMS QQ-A-225/9, ASTM B211 — Available in T6, T73, T76 tempers. High strength-to-weight ratio (up to 83 ksi) with good corrosion resistance. Excellent machinability. Recommended for aerospace interiors, portable electronics, defense hardware, high-performance automotive components, sports equipment, and racing applications. Keywords: Aluminum 7075 Torx screws.

A286 (UNS S66286): AMS 5731, ASTM A453 Grade 660 — Iron-based superalloy with excellent high-temperature strength and oxidation resistance to 1300°F. Good cryogenic properties and corrosion resistance. Ideal for aerospace engine hardware, turbocharger components, high-temperature electronic enclosures, racing applications, and high-performance automotive. Keywords: A286 Torx screws.

9. Pure Nickel

Nickel 200/201 (UNS N02200/N02201): ASTM B160, ASME SB160 — High purity and excellent corrosion resistance in caustic environments. Good thermal and electrical conductivity. Non-magnetic. Recommended for caustic processing equipment, electronic components, food processing hardware, alkali service, and battery applications. Keywords: Nickel 200 Torx screws.

Custom Torx Screw Manufacturing & Engineering Solutions

As a special alloy fastening solution expert, RAYCHIN provides complete custom Torx screw manufacturing services tailored to your exact specifications:

Manufacturing Capabilities

Engineering & Design Services

Material Selection Expertise:
Our metallurgical engineers analyze your application environment — temperature range (-423°F to 2200°F), corrosive media exposure (pH 0-14), load requirements (tensile, shear, fatigue), magnetic permeability needs (<1.05 μ), and assembly requirements — and recommend the optimal alloy from our 25+ material portfolio.

Torx Drive Optimization:
We specialize in precision Torx drive forming with capabilities including:

• Standard Torx (ISO 10664) for general applications

• Torx Plus® for enhanced torque transmission and tool life

• Tamper-Resistant Torx with center pin for security applications

• Custom Torx geometries for proprietary requirements

• External Torx for high-torque applications

Head Geometry Customization:
We can modify head dimensions to meet specific requirements:

• Custom head heights for clearance-limited applications

• Special head diameters for bearing area requirements

• Unique head markings for brand identification or torque specifications

Thread Form Engineering:
Standard unified (UNC/UNF/UNEF), metric (ISO coarse/fine), or custom thread forms including:

• Fully threaded for maximum thread engagement

• Partially threaded for shoulder applications

• Left-hand threads for reverse rotation prevention

• Multi-start threads for rapid assembly

Prototype Development:
Rapid turnaround prototype quantities (as few as 5 pieces) for design validation, fit-checking, and functional testing prior to full production. Typical prototype lead time: 5-10 business days.

Quality Assurance & Certification

• Material Certification: Complete Material Test Reports (MTRs) to EN 10204 3.1/3.2 with full traceability to melt source

• Dimensional Inspection: CMM, optical comparator, vision system, and laser micrometry verification to customer specifications

• Torx Drive Inspection: Optical inspection of drive geometry, depth, and concentricity

• Mechanical Testing: Tensile, yield, hardness, torque-to-failure, and drive tool compatibility testing

• Metallurgical Analysis: Microstructure examination, case depth verification, grain size determination

• Non-Destructive Testing: Liquid penetrant (FPI), magnetic particle (MPI), eddy current inspection as required

• Corrosion Testing: Salt spray (ASTM B117), intergranular corrosion (ASTM A262), stress corrosion cracking testing

• Process Certification: AS9100, ISO 9001, ISO 13485, ITAR, NADCAP, and PED compliant

Industry Applications & Engineering Recommendations

Why Choose RAYCHIN as Your Fastening Solution Expert?

25+ Years of Material Science Leadership:

Our metallurgical engineering team possesses deep expertise across the full spectrum of superalloys, refractory metals, and specialty stainless steels. We maintain a comprehensive database of material properties, corrosion resistance data, and application performance records. We don't just manufacture fasteners — we engineer solutions optimized for your specific application environment.

Complete Vertical Integration:

From raw material sourcing and certification through manufacturing, heat treatment, surface finishing, and quality inspection, all processes are performed in-house under strict quality control. This vertical integration ensures:

• Consistent quality from lot to lot

• Complete traceability from melt source to finished product

• Rapid response to design changes

• Competitive pricing without supply chain markups

• Shorter lead times for prototype and production quantities

Engineering Partnership:

We view ourselves as an extension of your engineering team. Our fastener engineers provide:

• Technical consultation on material selection based on application requirements

• Torx drive optimization for torque and assembly requirements

• Design optimization for manufacturability and performance

• Installation methodology recommendations

• Failure analysis and corrective action support

• Finite element analysis (FEA) for critical applications

• Custom testing protocols for unique requirements

Global Standards Compliance:

Our products meet or exceed ASTM, ASME, DIN, ISO, JIS, BS, GB, and MIL-SPEC specifications, ensuring acceptance in regulated industries and global supply chains. We maintain current knowledge of international standards and can provide certification for any required specification.

Supply Chain Reliability:

We maintain strategic raw material inventory across our 25+ alloy portfolio, flexible manufacturing capacity, and robust quality systems to ensure consistent on-time delivery for both prototype quantities (5-100 pieces) and high-volume production runs (100,000+ pieces).

Sustainability Commitment:

We are committed to responsible material sourcing, energy-efficient manufacturing, and waste reduction. Our quality systems include:

• Conflict minerals compliance (due diligence per OECD guidelines)

• REACH and RoHS compliance for European markets

• Environmental management (ISO 14001 principles)

• Recycling and waste reduction programs

• Sustainable packaging initiatives

Technical Specifications & Ordering Information

Standard Size Ranges

Thread Specifications

Available Finishes

Request Engineering Consultation & Quote

Contact RAYCHIN's special alloy fastening solution experts today with your specifications or CAD drawings. We provide confidential technical consultation, rapid response prototyping, and competitive pricing for standard and custom Torx screw solutions in advanced alloys.

Email: sales@ray-chin.com
Web: www.ray-chin.com
Response Time: < 24 hours
Engineering Support: Available in English, Mandarin, German, and Spanish
Prototype Turnaround: 5-10 business days
Production Lead Time: 3-6 weeks depending on quantity and alloy
