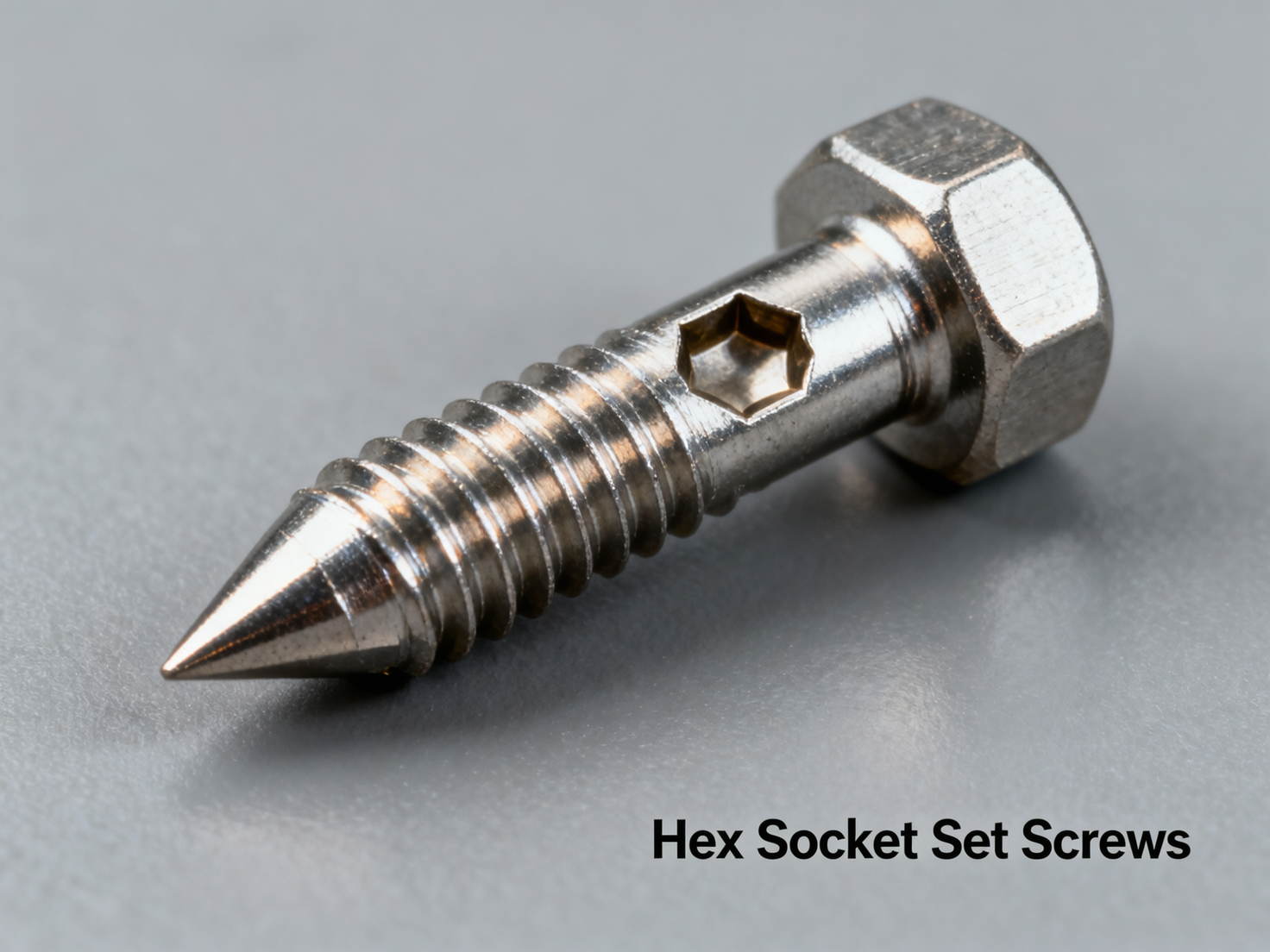

Hex Socket Set Screws

RAYCHIN manufactures precision hex socket set screws in 25+ exotic alloys: 17-4 PH, Inconel 718, Titanium, Hastelloy, MP35N, A286, Monel & more. Cup point, cone point, flat point, dog point, oval point. ASME B18.3, DIN 913-916, ISO 4026-4029 compliant. Custom OEM set screws for aerospace, automotive, medical & industrial applications. Global supplier.
  • Hex Socket Set Screws
  • Hex Socket Set Screws
  • Hex Socket Set Screws
  • Hex Socket Set Screws

RAYCHIN SPECIALTY METALS FASTENERS: BOLTS, NUTS, SCREWS, WASHERS, STUDS, THREADED RODS, U-BOLT, J-BOLTS

STANDARD AND CUSTOMIZED, SMALL BATCH AND LARGE BATCH, IMPERIAL AND METRIC


Sizes:
Thread:
  • #00 - 6"

  • M1.2 - M150

  • Fine and course threads

  • Partially and fully threaded

  • UNC, UNF, UNJ, UNR, Rolled, Cut



Specifications:Custom to print / drawing
  • ASME series

  • DIN series

  • ISO series





Request a Quote from RAYCHIN

We're here to help!

Request a Quote
 RAYCHIN   MATERIALS
17-4   PHAlloy   330InconelNimonic
254   SMOAlloy   926MolybdenumNitronic
310SSAluminum   7075MonelTantalum
A286Duplex   SteelMP159Titanium
AL-6XNHastelloyMP35NTungsten
Alloy   20IncoloyNickel   200Waspaloy
ZirconiumPH 13-8 Mo


Hex socket set screws point


FLAT POINT


CONE POINT


CUP POINT


DOG POINT
The cheapest and simplest of the set screw point styles, this screw has a flat surface on the bottom of the screw. This type is used when you need the ability to frequently change parts and require minimal shaft deformation.A cone point is easily identifiable by its sharp cone-shaped point – just like an ice cream cone. Cone point set screws deliver the strongest clamping force due to the deep penetration of the point. As a result they are used for permanent assembly.This is the most commonly used set screw and is identified by a cup-shaped indentation on one end. Cup points are typically used for a quick, semi-permanent or permanent applications where it is acceptable to cut the cup point edge of the screw.Dog point is the smooth, unthreaded tip of a dog point screw, which is a type of fastener used to hold multiple objects together


Machine Screws

Screws Head Hype


FLAT


OVAL


BINDING


PAN


ROUND


TRUSS


BUTTON


PAN WASHER


CHEESE


FILLISTER

Screws Drive


PHILLIPS


SLOTTED


PHILLIPS/SLOTTED


SIX-LOBE


SIX-LOBE/TAMPER


SIX-LOBE/SLOT


POZIDRIV


SQUARE


SQUARE/SLOT


PHILLIPS/SQUARE


TRIANGLE


Y-TYPE


TRI-WING


HEXAGON


5-POINT


H-TYPE


S-TYPE


8-POINT


SPLINE


CLUTCH


SPANNER


PHILLIPS/SLOT IND


SLOT IND




Precision Hex Socket Set Screws in Special Alloys | RAYCHIN Fastening Solution Expert

MRAYCHIN manufactures precision hex socket set screws in 25+ exotic alloys: 17-4 PH, Inconel 718, Titanium, Hastelloy, MP35N, A286, Monel & more. Cup point, cone point, flat point, dog point, oval point. ASME B18.3, DIN 913-916, ISO 4026-4029 compliant. Custom OEM set screws for aerospace, automotive, medical & industrial applications. Global supplier.


Hex Socket Set Screws: The Ultimate Solution for Secure Positioning and Adjustment

RAYCHIN is a premier manufacturer of high-performance hex socket set screws and a recognized special alloy fastening solution expert. Hex socket set screws, also known as grub screws or blind screws, are headless fasteners designed with an internal hex drive that allows for flush or recessed installation. These specialized components exert clamping force through their tip, which contacts a mating surface to secure rotating components such as gears, pulleys, collars, and bearings onto shafts. They are essential in power transmission, automotive systems, aerospace actuators, robotics, machine tools, medical devices, and precision instrumentation where reliable positioning, adjustment, and secure holding are critical.

The hex socket drive provides excellent torque transmission in confined spaces, allows for flush installation, and enables precise adjustment. Our hex socket set screws are available in multiple point styles—cup, cone, flat, dog, and oval—each engineered for specific application requirements. We manufacture these precision components from over 25 advanced alloys, ensuring reliable performance in corrosive environments, high-temperature applications, cryogenic conditions, vacuum systems, high-wear assemblies, and biocompatible medical applications.


Hex Socket Set Screw Classifications

1. Standard Point Styles and Specifications

Point StyleASME B18.3DINISODescriptionTypical Applications
Cup PointType CDIN 916ISO 4029Recessed cup-shaped tip with sharp edgesMost common; maximum holding power on hardened shafts
Cone PointType CNDIN 914ISO 4027Sharp 90° or 118° conical tipPermanent positioning; seats into drilled hole
Flat PointType FDIN 913ISO 4026Flat, chamfered endFrequent adjustment; soft shafts; minimal marring
Dog PointType DDIN 915ISO 4028Cylindrical projectionLocating in drilled holes; allows axial movement
Oval PointType ODIN 914 (var)ISO 4027 (var)Rounded, oval-shaped tipFrequent adjustment; minimal shaft damage
Half Dog PointType HDPartial cylindrical projectionLimited engagement applications

2. Hex Socket Set Screw Variations

TypeDescriptionDrive TypeApplications
Standard Hex SocketASME B18.3, DIN 913-916Hex socketGeneral purpose, most common
Self-Locking Set ScrewsWith nylon patch or pelletHex socketVibration-proof locking
Knurled Cup PointEnhanced grip surfaceHex socketMaximum holding power
Extended PointLonger point lengthHex socketDeeper engagement
Metric Set ScrewsISO 4026-4029Hex socketInternational applications
Micro Set Screws#0 through #2Hex socketMiniature applications
Stainless Steel Set ScrewsCorrosion-resistantHex socketHarsh environments
Custom Set ScrewsOEM specificationsVariousSpecialized applications

3. Special Application Hex Socket Set Screws

  • High-Temperature Set Screws: For turbine and exhaust applications

  • Corrosion-Resistant Set Screws: For chemical and marine environments

  • Non-Magnetic Set Screws: For MRI and sensitive instrumentation

  • Vacuum-Compatible Set Screws: For semiconductor and space applications

  • Cryogenic Set Screws: For extreme low-temperature service

  • Biocompatible Set Screws: For medical implants and devices

  • Anti-Galling Set Screws: For repeated adjustment applications

  • Nylon Tip Set Screws: For non-marring applications

  • Custom Point Geometries: Manufactured to your OEM specifications with unique point configurations, thread forms, and material grades

4. Hex Socket Set Screw Size Designations


Size (Inch)Threads per Inch (UNC/UNF)Hex Socket Size (Inch)Typical Length Range
#0800.028"1/16" - 1/4"
#164/720.035"1/16" - 3/8"
#256/640.035"1/16" - 1/2"
#348/560.050"1/8" - 5/8"
#440/480.050"1/8" - 3/4"
#540/441/16"1/8" - 1"
#632/405/64"1/8" - 1-1/2"
#832/365/64"1/8" - 2"
#1024/323/32"1/4" - 2"
1/4"20/281/8"1/4" - 2"
5/16"18/245/32"1/4" - 2"
3/8"16/243/16"1/4" - 2"
1/2"13/201/4"1/2" - 2"


Size (Metric)Thread Pitch (mm)Hex Socket Size (mm)Typical Length Range
M1.60.350.72mm - 8mm
M20.40.92mm - 10mm
M2.50.451.32mm - 12mm
M30.51.53mm - 16mm
M40.72.04mm - 20mm
M50.82.55mm - 25mm
M61.03.06mm - 30mm
M81.254.08mm - 40mm
M101.55.010mm - 50mm
M121.756.012mm - 60mm



Full Material Portfolio with International Standard Designations

As a special alloy fastening solution expert, RAYCHIN produces hex socket set screws in the following comprehensive range of high-performance materials:

1. Precipitation-Hardening Stainless Steels

17-4 PH (UNS S17400): ASTM A564 Type 630, AMS 5643, DIN 1.4542 — Available in H900, H1025, H1150, H1150+ tempers. Exceptional combination of high strength (up to 180 ksi) and good corrosion resistance. Excellent for aerospace actuators, medical devices, high-strength positioning applications, defense hardware, and robotics. *Keywords: 17-4 PH hex socket set screws, 17-4 PH cup point set screws.*

PH 13-8 Mo (UNS S13800): ASTM A564 Type 625, AMS 5629 — Superior strength (up to 220 ksi), exceptional toughness, and outstanding stress corrosion cracking resistance. Available in H950, H1000, H1050 tempers. Recommended for aerospace structural set screws, defense applications, medical implants, and critical positioning assemblies. *Keywords: PH 13-8 Mo hex socket set screws.*

2. Nickel-Based Superalloys

Inconel® Alloys:

  • Inconel 600 (UNS N06600): ASTM B166, AMS 5665 — General purpose high-temperature alloy with excellent oxidation and corrosion resistance to 2000°F. Good resistance to chloride stress corrosion cracking. Ideal for high-temperature set screws, heat treat furnace components, chemical processing equipment, and nuclear applications. Keywords: Inconel 600 hex socket set screws.

  • Inconel 625 (UNS N06625): ASTM B446, AMS 5666 — Exceptional resistance to pitting, crevice corrosion, and high-temperature oxidation. Outstanding fatigue strength and resistance to chloride ions. High strength from cryogenic to 1800°F. Recommended for marine set screws, offshore platform hardware, chemical tank fittings, seawater immersion applications, and aerospace components. Keywords: Inconel 625 hex socket set screws.

  • Inconel 718 (UNS N07718): AMS 5663, ASTM B637 — High-strength alloy with exceptional creep rupture strength up to 1300°F. Excellent cryogenic properties and weldability. Good fatigue and oxidation resistance. Ideal for aerospace engine set screws, high-temperature positioning applications, racing components, downhole tools, and high-performance automotive. Keywords: Inconel 718 hex socket set screws, Inconel 718 cup point set screws.

Monel® Alloys:

  • Monel 400 (UNS N04400): ASTM B164, AMS 4675 — Superior resistance to seawater, steam, and caustic environments. Excellent corrosion resistance in reducing conditions. High strength over a wide temperature range. Recommended for marine set screws, naval vessel hardware, chemical processing equipment, offshore installations, and architectural marine applications. Keywords: Monel 400 hex socket set screws.

  • Monel K500 (UNS N05500): ASTM B865, AMS 4676 — Age-hardenable version offering increased strength and hardness while maintaining excellent corrosion resistance. Good spring properties and wear resistance. Ideal for pump set screws, marine fasteners, oil & gas applications, high-strength marine hardware, and valve components. Keywords: Monel K500 hex socket set screws.

Hastelloy® Alloys:

  • Hastelloy C276 (UNS N10276): ASTM B574, AMS 5754 — Excellent resistance to a wide range of corrosive chemicals including strong oxidizers and reducing agents. Outstanding resistance to pitting and stress corrosion cracking. Recommended for chemical processing set screws, pharmaceutical apparatus, pollution control systems, flue gas desulfurization, and nuclear waste processing fixtures. Keywords: Hastelloy C276 hex socket set screws.

  • Hastelloy C22 (UNS N06022): ASTM B574, AMS 5755 — Superior resistance to oxidizing media and localized corrosion. Excellent in mixed acid environments and chloride-containing media. Ideal for bleaching systems, pickling equipment, nuclear waste processing, aggressive chemical service, and pharmaceutical reactors. Keywords: Hastelloy C22 hex socket set screws.

  • Hastelloy B2 (UNS N10665): ASTM B335 — Exceptional resistance to reducing acids like hydrochloric and sulfuric at all concentrations and temperatures. Outstanding resistance to hydrogen chloride gas. Recommended for hydrochloric acid processing, chemical reactors, evaporators, acid concentration plants, and chemical storage fixtures. Keywords: Hastelloy B2 hex socket set screws.

Incoloy® Alloys:

  • Incoloy 825 (UNS N08825): ASTM B423, AMS 5870 — Excellent resistance to reducing and oxidizing acids, stress corrosion cracking, and intergranular attack. Good resistance to sulfuric and phosphoric acids. Ideal for pickling tank hardware, pollution control equipment, nuclear fuel reprocessing, chemical storage vessels, and food processing equipment. Keywords: Incoloy 825 hex socket set screws.

  • Incoloy 925 (UNS N09925): ASTM B805 — High-strength, age-hardenable alloy with excellent resistance to sour gas environments. Good corrosion resistance and mechanical properties. Recommended for downhole instrumentation, wellhead equipment, subsea enclosures, oil & gas production, and high-temperature applications. Keywords: Incoloy 925 hex socket set screws.

High-Temperature Alloys:

  • Waspaloy (UNS N07001): AMS 5708, AMS 5824 — Precipitation-hardenable alloy with exceptional high-temperature strength to 1600°F. Excellent oxidation and creep resistance. Good fatigue strength. Ideal for gas turbine set screws, jet engine components, high-temperature instrumentation, aerospace fasteners, and racing applications. Keywords: Waspaloy hex socket set screws.

  • Nimonic® Series:

    • Nimonic 80A (UNS N07080): BS HR 501, AMS 5842 — Creep and rupture strength up to 1500°F. Excellent oxidation resistance and good corrosion resistance. Recommended for exhaust system set screws, heat treatment fixtures, turbocharger components, gas turbine parts, and high-temperature springs. Keywords: Nimonic 80A hex socket set screws.

    • Nimonic 90 (UNS N07090): BS HR 502, AMS 5796 — Enhanced high-temperature properties with superior oxidation resistance. Good creep strength and fatigue resistance. Ideal for gas turbine set screws, high-temperature positioning, aerospace engine hardware, high-performance racing components, and exhaust valves. Keywords: Nimonic 90 hex socket set screws.

3. Duplex & Super Duplex Stainless Steels

Duplex 2205 (UNS S32205/S31803): ASTM A193 B8S, EN 1.4462 — Twice the yield strength of 316 stainless with excellent chloride stress corrosion resistance. Outstanding pitting resistance (PREN 34-36). Good fatigue strength. Recommended for offshore platform set screws, desalination plant hardware, marine deck equipment, chemical tankers, and subsea applications. Keywords: Duplex 2205 hex socket set screws.

Super Duplex Alloys:

  • Alloy 926 (UNS N08926): ASTM B691, EN 1.4529 — PREN >40 for severe chloride and seawater environments. Excellent resistance to crevice corrosion and pitting. Good mechanical properties. Ideal for subsea set screws, coastal infrastructure, chemical tanker hardware, desalination plants, and marine instrumentation. Keywords: Alloy 926 hex socket set screws.

  • AL-6XN® (UNS N08367): ASTM B691, AMS 5875 — Superior pitting and crevice corrosion resistance in highly chlorinated atmospheres. Outstanding resistance to seawater and chloride solutions. Recommended for flue gas desulfurization, seawater cooling systems, pharmaceutical equipment, food processing, and marine hardware. *Keywords: AL-6XN hex socket set screws.*

4. Titanium Alloys

Grade 2 Titanium (UNS R50400): ASTM B348, AMS 4921 — Excellent corrosion resistance with good formability and weldability. Outstanding seawater resistance and biocompatibility. Good strength-to-weight ratio. Ideal for marine set screws, architectural hardware, chemical processing equipment, medical devices, and food processing. Keywords: Titanium Grade 2 hex socket set screws.

Grade 5 Titanium (Ti-6Al-4V) (UNS R56400): AMS 4928, ASTM F467 — High strength-to-weight ratio (120 ksi typical), excellent corrosion resistance, and biocompatibility. Available in annealed and aged conditions. Excellent fatigue properties. Recommended for aerospace set screws, medical devices, surgical instruments, high-performance automotive components, racing applications, and sports equipment. *Keywords: Titanium Grade 5 hex socket set screws, Ti-6Al-4V cup point set screws.*

Grade 7 Titanium (UNS R52400): ASTM B348 — Superior corrosion resistance with palladium addition. Excellent in reducing and oxidizing acid environments. Ideal for chemical processing, desalination plants, pollution control equipment, aggressive corrosion service, and marine applications. Keywords: Titanium Grade 7 hex socket set screws.

Grade 23 Titanium (Ti-6Al-4V ELI) (UNS R56401): ASTM F136, ASTM F1472 — Extra-low interstitial version of Grade 5 with enhanced toughness and ductility. Superior biocompatibility. Recommended for medical implants, surgical instruments, dental devices, and biocompatible applications. Keywords: Titanium Grade 23 hex socket set screws.

5. Refractory & Exotic Metals

Tantalum (UNS R05200): ASTM B365, AMS 7845 — Ultimate corrosion resistance in aggressive acid environments. Completely inert to most chemicals. Excellent biocompatibility. Ideal for chemical reactor set screws, pharmaceutical processing equipment, high-purity applications, medical implants, and laboratory equipment. Keywords: Tantalum hex socket set screws.

Zirconium 702 (UNS R60702): ASTM B550, ASME SB550 — Excellent resistance to sulfuric, hydrochloric, and nitric acids. Outstanding in organic acids and alkaline media. Ideal for nuclear fuel processing, chemical reactors, heat exchanger hardware, aggressive chemical service, and reprocessing equipment. Keywords: Zirconium hex socket set screws.

Zirconium 705 (UNS R60705): ASTM B550 — Niobium-stabilized version with enhanced strength and formability. Good corrosion resistance. Recommended for chemical processing, nuclear applications, and high-temperature service. Keywords: Zirconium 705 hex socket set screws.

Molybdenum (UNS R03600): ASTM B387 — High temperature strength and stiffness for extreme thermal applications to 3000°F. Excellent thermal conductivity and low thermal expansion. Ideal for high-temperature furnaces, semiconductor processing equipment, glass manufacturing, high-temperature fixtures, and electronics. Keywords: Molybdenum hex socket set screws.

TZM Molybdenum (Titanium-Zirconium-Molybdenum): ASTM B386 — Enhanced high-temperature strength and recrystallization resistance. Superior to pure molybdenum. Recommended for high-temperature applications, semiconductor, and aerospace. Keywords: TZM hex socket set screws.

Tungsten (UNS R07005): ASTM B777 — Highest density and melting point for specialized radiation shielding and high-temperature applications. Exceptional wear resistance and thermal stability. Ideal for medical imaging equipment, aerospace counterweights, high-temperature fixtures, radiation shielding, and balancing applications. Keywords: Tungsten hex socket set screws.

6. Specialty Stainless Steels & Nickel Alloys

Nitronic® Alloys:

  • Nitronic 50 (XM-19) (UNS S20910): ASTM A193 B8N — High strength (twice the yield strength of 316 stainless), non-magnetic, excellent corrosion resistance. Good cryogenic properties. Recommended for medical imaging equipment, marine instrumentation, high-strength electronic enclosures, aerospace components, and subsea applications. Keywords: Nitronic 50 hex socket set screws.

  • Nitronic 60 (UNS S21800): ASTM A193 B8N — Superior wear and galling resistance with good corrosion properties. Excellent for frequently adjusted set screws and moving parts. Self-lubricating characteristics. Ideal for valve components, pump hardware, adjustable mechanisms, high-wear applications, and instrumentation. Keywords: Nitronic 60 hex socket set screws, Nitronic 60 cup point set screws.

High-Performance Stainless:

  • 254 SMO (UNS S31254): EN 1.4547, ASTM A479 — Excellent seawater and chloride resistance with high PREN value (>42). Outstanding pitting and crevice corrosion resistance. Recommended for offshore electronics, desalination hardware, coastal architectural fasteners, marine applications, and chemical processing. Keywords: 254 SMO hex socket set screws.

  • 310 Stainless Steel (UNS S31000): ASTM A276, AISI 310 — Outstanding high-temperature oxidation resistance up to 2000°F. Excellent in cyclic temperature conditions. Good carburization resistance. Ideal for furnace hardware, heat treat fixtures, exhaust system components, high-temperature sensors, and thermal processing. Keywords: 310SS hex socket set screws.

  • 316/316L Stainless Steel (UNS S31600/S31603): ASTM A276, ASTM A193 — Excellent corrosion resistance in marine and chemical environments. Good mechanical properties. Available in low-carbon version for improved weldability. Recommended for general industrial set screws, marine hardware, medical devices, food processing, and pharmaceutical equipment. Keywords: 316L hex socket set screws, 316SS cup point set screws.

  • Alloy 20 (Carpenter 20) (UNS N08020): ASTM B473 — Superior resistance to sulfuric acid and chloride stress corrosion. Excellent in mixed acid environments. Recommended for chemical processing equipment, pharmaceutical reactors, food processing hardware, acid handling systems, and pickling equipment. Keywords: Alloy 20 hex socket set screws.

  • Alloy 330 (UNS N08330): ASTM B536 — Excellent carburization and oxidation resistance at elevated temperatures. Good resistance to thermal fatigue. Ideal for industrial furnaces, heat treating equipment, petrochemical processing, high-temperature fixtures, and thermal cycling applications. Keywords: Alloy 330 hex socket set screws.

7. Ultra-High-Strength Cobalt Alloys

MP35N (UNS R30035): AMS 5844, ASTM F562 — Ultimate tensile strength exceeding 300 ksi with exceptional toughness and corrosion resistance. Non-magnetic. Excellent fatigue strength and biocompatibility. Recommended for aerospace actuators, medical implants, downhole instrumentation, high-security fasteners, marine applications, and racing components. Keywords: MP35N hex socket set screws.

MP159 (AMS 5846): Advanced cobalt-nickel alloy offering high strength and creep resistance at elevated temperatures. Superior to MP35N in high-temperature applications. Excellent fatigue and oxidation resistance. Ideal for gas turbine hardware, aerospace engine components, high-performance racing fasteners, critical high-temperature assemblies, and defense applications. Keywords: MP159 hex socket set screws.

Elgiloy® (UNS R30003): AMS 5833 — Non-magnetic, high-strength cobalt alloy with excellent corrosion resistance and fatigue properties. Good spring characteristics. Recommended for medical devices, aerospace components, spring applications, and instrumentation. Keywords: Elgiloy hex socket set screws.

8. High-Strength Aluminum & Iron-Based Alloys

Aluminum 2024 (UNS A92024): ASTM B211, AMS 4120 — High-strength aluminum alloy with good fatigue resistance. Available in T3, T4, T8 tempers. Recommended for aerospace components, defense hardware, and high-performance applications. Keywords: Aluminum 2024 hex socket set screws.

Aluminum 6061 (UNS A96061): ASTM B211, AMS 4117 — Versatile, heat-treatable aluminum alloy with good corrosion resistance and weldability. Available in T6 temper. Ideal for general industrial applications, electronics enclosures, marine hardware, and architectural components. Keywords: Aluminum 6061 hex socket set screws.

Aluminum 7075 (UNS A97075): AMS QQ-A-225/9, ASTM B211 — Available in T6, T73, T76 tempers. High strength-to-weight ratio (up to 83 ksi) with good corrosion resistance. Excellent machinability. Recommended for aerospace interiors, portable electronics, defense hardware, high-performance automotive components, sports equipment, and racing applications. Keywords: Aluminum 7075 hex socket set screws.

A286 (UNS S66286): AMS 5731, ASTM A453 Grade 660 — Iron-based superalloy with excellent high-temperature strength and oxidation resistance to 1300°F. Good cryogenic properties and corrosion resistance. Ideal for aerospace engine hardware, turbocharger components, high-temperature electronic enclosures, racing applications, and high-performance automotive. Keywords: A286 hex socket set screws.

9. Pure Nickel

Nickel 200/201 (UNS N02200/N02201): ASTM B160, ASME SB160 — High purity and excellent corrosion resistance in caustic environments. Good thermal and electrical conductivity. Non-magnetic. Recommended for caustic processing equipment, electronic components, food processing hardware, alkali service, and battery applications. Keywords: Nickel 200 hex socket set screws.


Custom Hex Socket Set Screw Manufacturing & Engineering Solutions

As a special alloy fastening solution expert, RAYCHIN provides complete custom hex socket set screw manufacturing services tailored to your exact specifications:

Manufacturing Capabilities

ProcessSize RangeToleranceApplication
Swiss CNC Machining0.5mm - 25mm diameter±0.005mmPrecision points, tight tolerances, exotic alloys
Cold Heading1mm - 16mm diameter±0.025mmHigh-volume production, superior grain flow
CNC Multi-Spindle3mm - 20mm diameter±0.01mmMedium to high volume, cost-effective
Point GrindingAll sizes±0.025mmPrecision cup, cone, dog, flat, oval point geometries
Hex BroachingAll hex sizes±0.025mmAccurate hex socket formation
Thread Rolling#0 - 1/2", M1.6 - M12Class 2A, 3A, 6g, 6hSuperior fatigue resistance, consistent thread form
Heat TreatmentFull range capabilitiesLot traceabilityOptimized mechanical properties
Surface FinishingPassivation, electropolishing, platingMil-Spec, ASTMEnhanced corrosion resistance, aesthetics

Point Style Engineering

Our precision point grinding capabilities ensure consistent geometry for optimal performance:

Point StyleAngle/DimensionsHardness ConsiderationApplication
Cup Point90° included angle, sharp edgeCase hardened for cutting actionMaximum holding on hardened shafts
Cone Point90°, 118°, 120° optionsFull hardnessPermanent positioning
Flat Point90° chamferControlled flat diameterSoft shafts, frequent adjustment
Dog PointDiameter tolerance ±0.025mmPrecision groundLocating in drilled holes
Oval PointRadiused profileSmooth finishMinimal shaft damage
Custom PointsAs specifiedApplication-specificSpecialized requirements

Engineering & Design Services

Material Selection Expertise:
Our metallurgical engineers analyze your application environment — temperature range (-423°F to 2200°F), corrosive media exposure (pH 0-14), load requirements (holding force, torque), shaft hardness, magnetic permeability needs (<1.05 μ), and adjustment frequency — and recommend the optimal alloy and point style from our 25+ material portfolio.

Point Style Optimization:
We evaluate your application requirements:

  • Cup Point for maximum holding power on hardened shafts (Rc 45+)

  • Cone Point for permanent positioning into drilled holes

  • Flat Point for frequent adjustment on soft shafts

  • Dog Point for locating applications requiring axial movement

  • Oval Point for frequent adjustment with minimal shaft damage

Thread Form Engineering:
Standard unified (UNC/UNF), metric (ISO coarse/fine), or custom thread forms including:

  • Class 2A, 3A for inch series

  • Class 6g, 6h for metric series

  • Left-hand threads for reverse rotation prevention

  • Special thread lengths for specific engagement requirements

Prototype Development:
Rapid turnaround prototype quantities (as few as 5 pieces) for design validation, fit-checking, and holding force testing prior to full production. Typical prototype lead time: 5-10 business days.

Quality Assurance & Certification

  • Material Certification: Complete Material Test Reports (MTRs) to EN 10204 3.1/3.2 with full traceability to melt source

  • Dimensional Inspection: CMM, optical comparator, vision system, and laser micrometry verification to customer specifications

  • Point Geometry Verification: Optical inspection of point angle, depth, and concentricity

  • Hex Socket Inspection: Precision gauging of hex size, depth, and concentricity

  • Mechanical Testing: Hardness, torque-to-failure, and push-out testing

  • Metallurgical Analysis: Case depth verification (for cup point), microstructure examination

  • Non-Destructive Testing: Liquid penetrant (FPI) inspection as required

  • Process Certification: AS9100, ISO 9001, ISO 13485, ITAR, NADCAP, and PED compliant


Industry Applications & Engineering Recommendations

IndustryApplicationRecommended Point StyleRecommended Materials
Aerospace & DefenseActuator mechanisms, flight control systems, landing gearCup point, cone pointA286, 17-4 PH, MP35N, Inconel 718, Titanium Grade 5
Automotive & MotorsportGear positioning, pulley retention, brake systemsCup point, dog point17-4 PH, Nitronic 60, A286, MP35N
Oil & GasDownhole tools, wellhead equipment, valve assembliesCup point, cone pointIncoloy 925, MP35N, Hastelloy C276, Duplex 2205
Medical DevicesSurgical instruments, orthopedic devices, dental equipmentFlat point, oval pointTitanium Grade 5/23, MP35N, 17-4 PH, 316LVM
Marine & OffshorePropeller shaft collars, deck hardware, subsea equipmentCup point, dog pointMonel 400, Duplex 2205, AL-6XN, Titanium Grade 2
Power TransmissionGear and pulley retention, shaft collars, couplingsCup point, cone point316SS, 17-4 PH, A286, Nitronic 60
Robotics & AutomationActuator collars, gear retention, precision positioningCup point, flat point17-4 PH, Titanium Grade 5, MP35N, A286
SemiconductorWafer processing equipment, vacuum chambers, precision stagesFlat point, oval pointNitronic 60, Titanium Grade 2, 316L VIM-VAR
Food ProcessingEquipment adjustment, conveyor componentsFlat point316L, Alloy 20, Titanium Grade 2
InstrumentationPrecision adjustment mechanisms, optical equipmentFlat point, oval point316SS, Nitronic 60, Aluminum 7075

Why Choose RAYCHIN as Your Fastening Solution Expert?

25+ Years of Material Science Leadership:

Our metallurgical engineering team possesses deep expertise across the full spectrum of superalloys, refractory metals, and specialty stainless steels. We maintain a comprehensive database of material properties, corrosion resistance data, and application performance records. We don't just manufacture fasteners — we engineer solutions optimized for your specific application environment.

Complete Vertical Integration:

From raw material sourcing and certification through manufacturing, heat treatment, surface finishing, and quality inspection, all processes are performed in-house under strict quality control. This vertical integration ensures:

  • Consistent quality from lot to lot

  • Complete traceability from melt source to finished product

  • Rapid response to design changes

  • Competitive pricing without supply chain markups

  • Shorter lead times for prototype and production quantities

Engineering Partnership:

We view ourselves as an extension of your engineering team. Our fastener engineers provide:

  • Technical consultation on material selection based on application requirements

  • Point style optimization for maximum holding power

  • Drive system specification for torque and assembly requirements

  • Installation methodology recommendations

  • Failure analysis and corrective action support

  • Finite element analysis (FEA) for critical applications

  • Custom testing protocols for unique requirements

Global Standards Compliance:

Our products meet or exceed ASTM, ASME, DIN, ISO, JIS, BS, GB, NACE, and MIL-SPEC specifications, ensuring acceptance in regulated industries and global supply chains. We maintain current knowledge of international standards and can provide certification for any required specification.

Supply Chain Reliability:

We maintain strategic raw material inventory across our 25+ alloy portfolio, flexible manufacturing capacity, and robust quality systems to ensure consistent on-time delivery for both prototype quantities (5-100 pieces) and high-volume production runs (100,000+ pieces).

Sustainability Commitment:

We are committed to responsible material sourcing, energy-efficient manufacturing, and waste reduction. Our quality systems include:

  • Conflict minerals compliance (due diligence per OECD guidelines)

  • REACH and RoHS compliance for European markets

  • Environmental management (ISO 14001 principles)

  • Recycling and waste reduction programs

  • Sustainable packaging initiatives


Technical Specifications & Ordering Information

Standard Size Ranges

SystemDiameter RangeLength RangePoint StylesHex Sizes
Unified (Inch)#0 through 1/2"1/16" through 2"Cup, Cone, Flat, Dog, OvalASME B18.3 standard
Metric (ISO)M1.6 through M122mm through 60mmCup, Cone, Flat, Dog, OvalISO 4026-4029 standard
CustomAny requiredAny requiredAs specifiedAs specified

Thread Specifications

Thread TypeClassesPitchesApplications
Unified InchClass 2A, 3AUNC (coarse), UNF (fine)General purpose, aerospace, automotive
Metric ISOClass 6g, 6hCoarse (standard), fineInternational applications, precision equipment
Special FormsCustomLeft-hand, multi-startSpecialized applications

Available Finishes

FinishSpecificationApplicationBenefits
PassivationASTM A967, AMS 2700Stainless steelsRemoves free iron, enhances corrosion resistance
ElectropolishingASTM B912Stainless steels, titaniumMirror finish, improves cleanability, reduces friction
Black OxideMIL-DTL-13924Stainless steels, alloy steelsAnti-glare, mild corrosion resistance
Phosphate CoatingMIL-DTL-16232Alloy steelsLubricity, corrosion protection
Cadmium PlatingAMS 2400, QQ-P-416High-strength steelsLubricity, corrosion resistance
Silver PlatingAMS 2410, AMS 2412High-temperature alloysAnti-galling, high-temperature service
PTFE CoatingAMS 2518, MIL-P-46038All alloysLow friction, chemical resistance
Xylan®ProprietaryAll alloysDry film lubricant, corrosion resistance

Request Engineering Consultation & Quote

Contact RAYCHIN's special alloy fastening solution experts today with your specifications or CAD drawings. We provide confidential technical consultation, rapid response prototyping, and competitive pricing for standard and custom hex socket set screw solutions in advanced alloys.

Email: sales@ray-chin.com
Web: www.ray-chin.com
Response Time: < 24 hours
Engineering Support: Available in English, Mandarin, German, and Spanish
Prototype Turnaround: 5-10 business days
Production Lead Time: 3-6 weeks depending on quantity and alloy



Hex Socket Set Screws, Socket Set Screws, Grub Screws, Blind Screws, Cup Point Set Screws, Cone Point Set Screws, Flat Point Set Screws, Dog Point Set Screws, Oval Point Set Screws, ASME B18.3 Set Screws, DIN 913 Set Screws, DIN 914 Set Screws, DIN 915 Set Screws, DIN 916 Set Screws, ISO 4026 Set Screws, ISO 4027 Set Screws, ISO 4028 Set Screws, ISO 4029 Set Screws, Custom Set Screws, OEM Set Screws, 17-4 PH Hex Socket Set Screws, PH 13-8 Mo Set Screws, Inconel 718 Set Screws, Inconel 625 Set Screws, Inconel 600 Set Screws, Monel 400 Set Screws, Monel K500 Set Screws, Hastelloy C276 Set Screws, Hastelloy C22 Set Screws, Hastelloy B2 Set Screws, Incoloy 825 Set Screws, Incoloy 925 Set Screws, Waspaloy Set Screws, Nimonic 80A Set Screws, Nimonic 90 Set Screws, Duplex 2205 Set Screws, Alloy 926 Set Screws, AL-6XN Set Screws, Titanium Grade 5 Set Screws, Titanium Grade 2 Set Screws, Titanium Grade 23 Set Screws, Tantalum Set Screws, Zirconium 702 Set Screws, Molybdenum Set Screws, TZM Set Screws, Tungsten Set Screws, Nitronic 60 Set Screws, Nitronic 50 Set Screws, 254 SMO Set Screws, 310SS Set Screws, 316L Set Screws, Alloy 20 Set Screws, Alloy 330 Set Screws, A286 Set Screws, MP35N Set Screws, MP159 Set Screws, Aluminum 7075 Set Screws, Aluminum 6061 Set Screws, Nickel 200 Set Screws, Aerospace Set Screws, Automotive Set Screws, Oil & Gas Set Screws, Medical Set Screws, Marine Set Screws, Corrosion Resistant Set Screws, High Temperature Set Screws, Non-Magnetic Set Screws, Precision Set Screws, Special Alloy Fastener Manufacturer, Fastening Solution Expert, Global Set Screw Supplier, Custom OEM Set Screws.


Request A Quote! We'll respond as soon as possible(within 12 hours)

Submit
Related Products
