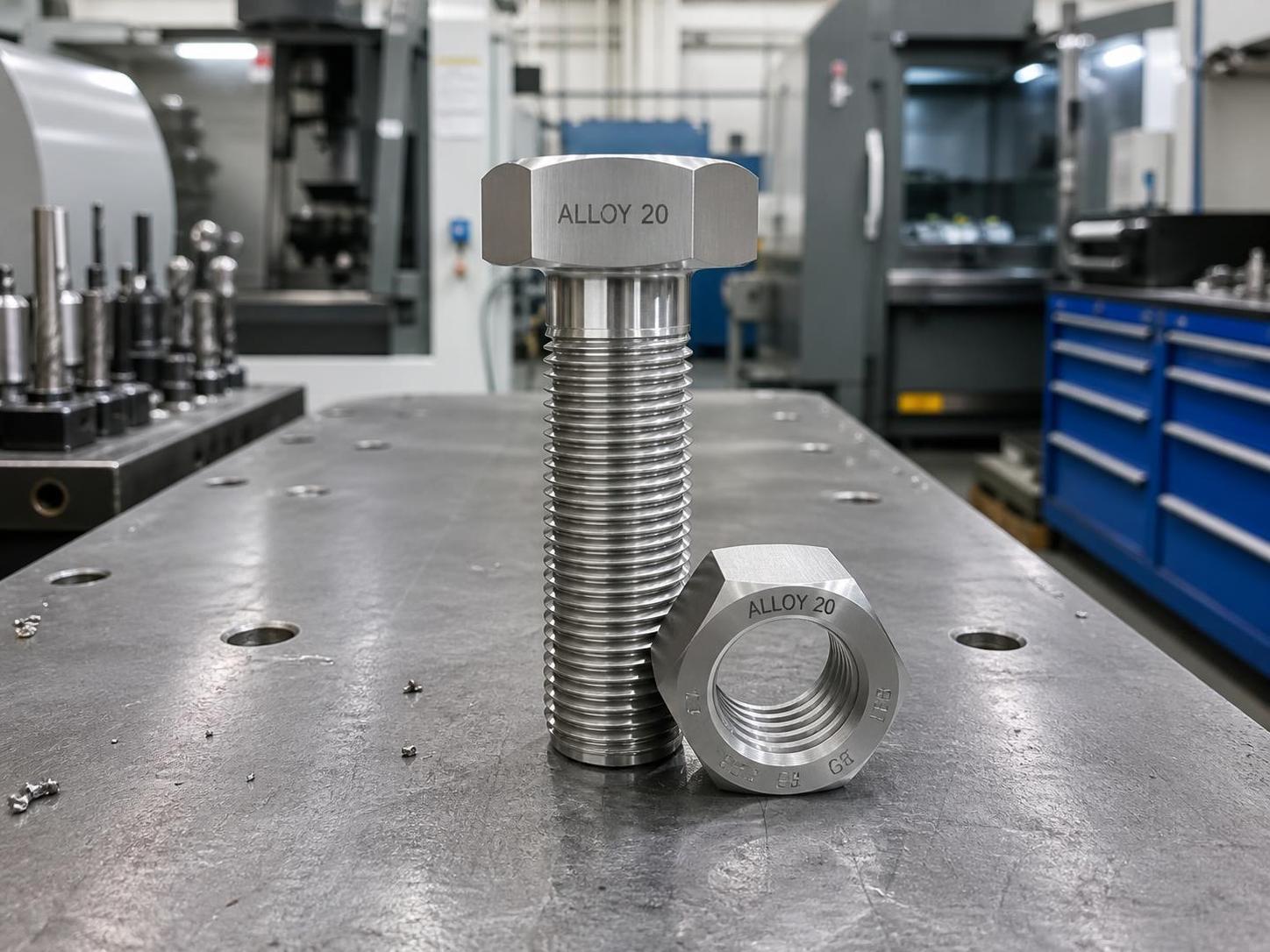

Alloy 20 Fasteners: Complete Technical Data – Tensile Strength, Torque, Machining, Heat Treatment & Acid Resistance

For engineers specifying bolting for sulfuric acid tanks, phosphoric acid reactors, or mixed‑acid chemical processes, Alloy 20 (UNS N08020) delivers the optimal blend of corrosion resistance, strength, and fabricability at a cost well below nickel‑base superalloys. RAYCHIN LIMITED, a specialist global manufacturer and supplier of high‑performance alloy fasteners with decades of in‑house experience, provides this authoritative technical reference. We detail Alloy 20 tensile strength, yield strength, Rockwell hardness, torque values, galling prevention, machining best practices, heat treatment, maximum temperature limits, and its legendary resistance to sulfuric acid, intergranular corrosion, and stress corrosion cracking, drawing directly from ASTM A193 B8T and our own production data.

1. Mechanical Properties: Tensile, Yield, and Hardness

In the solution‑annealed condition per ASTM A193 B8T, Alloy 20 tensile strength and Alloy 20 yield strength meet the minimum values below. The alloy is solid‑solution strengthened and cannot be hardened by heat treatment, but it provides reliable strength for a wide range of chemical process equipment.

Alloy 20 hardness Rockwell is inherently low, which contributes to its excellent ductility and resistance to brittle fracture, but also means it is not intended for high‑strength structural bolting. Its value lies in corrosion resistance rather than brute mechanical strength.

2. Torque Values and Tightening Recommendations

Achieving the correct preload without damaging threads requires accurate Alloy 20 torque values. Due to its lower yield strength, over‑torquing can easily strip threads. The Alloy 20 bolt tightening torque table below is based on 50% of the minimum yield strength (120 MPa effective stress) and a lubricated nut factor K = 0.18, which is typical for this alloy with a nickel‑based anti‑seize compound.

Always use clean, lubricated threads, a calibrated torque wrench, and a slow, steady application speed. RAYCHIN can provide customized torque charts for your specific geometry and coating upon request.

3. Galling Resistance and Assembly Best Practices

Alloy 20 galling resistance is moderate, similar to other austenitic stainless steels. The alloy can gall under high contact stress if assembled dry or at excessive speed. RAYCHIN prevents galling through several proven measures:

• Use rolled threads rather than cut threads; the smoother surface finish reduces adhesion.
• Apply a high‑temperature anti‑seize compound—nickel‑based or MoS₂ lubricants are effective at the moderate temperatures Alloy 20 typically encounters.
• Pair with a nut of slightly different hardness or a dissimilar compatible alloy to disrupt the metal‑to‑metal adhesion path.
• Assemble with calibrated torque wrenches at slow speed; avoid impact tools.

4. Machining Alloy 20 Fasteners

Machining Alloy 20 fasteners requires techniques appropriate for high‑nickel austenitic alloys. Alloy 20 work‑hardens rapidly, generates significant heat, and produces tough, stringy chips. RAYCHIN's experienced machinists employ:

• Rigid CNC turning centers with positive‑rake carbide inserts (PVD‑coated).
• Moderate cutting speeds (15–25 m/min for threading) and aggressive feed rates to stay below the work‑hardened layer.
• High‑pressure, chlorinated cutting oil for effective cooling and chip breaking.
• Thread rolling rather than cutting for final threads, which improves fatigue life and galling resistance.

5. Heat Treatment: Solution Annealing and Stabilization

The Alloy 20 heat treatment is straightforward: solution annealing at 925–1010°C (1700–1850°F), followed by rapid water quenching. This dissolves any precipitated carbides and sigma phase, ensuring a fully austenitic structure with maximum corrosion resistance and ductility. Because Alloy 20 is stabilized with niobium (columbium), it resists the intergranular carbide precipitation that plagues unstabilized grades like 304 or 316 during welding or slow cooling. However, after welding, a stabilizing anneal at approximately 870°C (1600°F) for 2–4 hours may be recommended to tie up carbon completely as niobium carbides. RAYCHIN's standard fastener product is supplied in the solution‑annealed condition, with full furnace records included in the certification package.

6. Maximum Temperature Use and Thermal Stability

Alloy 20 maximum temperature use for continuous service in oxidizing atmospheres is approximately 540°C (1000°F). Above this temperature, prolonged exposure may lead to sigma phase embrittlement. The alloy is not designed for high‑temperature strength applications, but rather for moderate‑temperature corrosive service where its acid resistance is the primary selection criterion.

7. Legendary Corrosion Resistance: Sulfuric Acid, Intergranular, and SCC

The primary reason for selecting Alloy 20 is its exceptional sulfuric acid corrosion resistance. The presence of 3–4% copper provides a catalytic surface that passivates the alloy in concentrations up to 40% at temperatures approaching boiling. This makes UNS N08020 fasteners the standard choice for sulfuric acid alkylation units, pickling tanks, and chemical reactors.

Alloy 20 intergranular corrosion resistance is guaranteed by the stabilized grade Nb addition. Niobium preferentially combines with carbon, preventing chromium‑carbide formation at grain boundaries. This immunity to sensitization means Alloy 20 can be welded and used in the as‑welded condition without risking intergranular attack—a critical advantage over standard stainless steels.

Alloy 20 stress corrosion cracking resistance in chloride environments is excellent. With 32–38% nickel, the alloy falls well above the threshold required to resist chloride SCC, providing reliable service in hot, chloride‑contaminated acid streams that would destroy 316L in days.
